- Page 1 Use & Care Guide Robotic Pool Cleaning System DuraMax DuraMax Jr. HT DuraMax Jr. T RC DuraMax DuraMax Bi-Turbo T RC DuraMax Bi-Turbo T2 DuraMax RC DuraMax DuraMax Duo Jr. DuraMax Duo DuraMax Trio DuraMax DuraMax 820319...
-
Page 2: Make A Record For Future Use
Model DuraMAX Purchase Date DuraMAX BiTurboT R C Place Purchased DuraMAX Serial Number BiTurbo T2 DuraMAX Note: Serial number can be found on the warrantee card or on the packing carton. DuraMAX Duo Jr. QUESTIONS ? INTERNET DuraMAX For online support and product information... -
Page 3: Components Overview

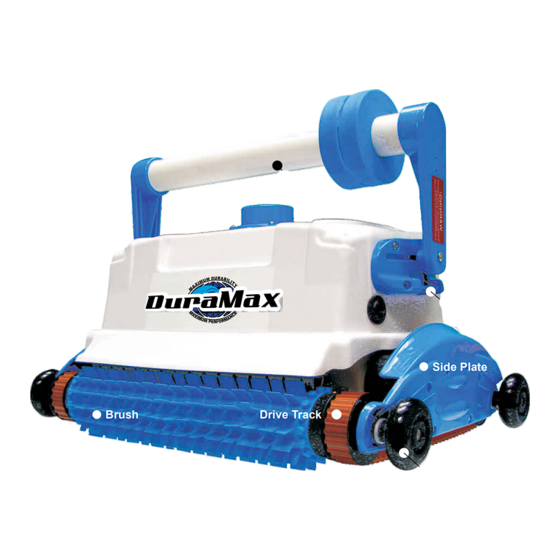

Robotic Commercial Pool Cleaner For Commercial - Public Swimming Pools COMPONENTS OVERVIEW Floating Handle Handle Bracket Side Plate Brush Drive Track Power Supply Bumper Wheels Remote Control Delay Electronic Timer... - Page 4 QUICK START GUIDE To Operate Cleaner (1) Locate a GFCI 110 V~ac. receptacle, and plug the Power Supply in. (2) Completely immerse the cleaner in water. (3) While the cleaner is in the water, gently tilt it side to side (fig3). This will allow any trapped air to escape through the pump outlets.
-
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Check the cable periodically for external damage. Continual rubbing against sharp or rough surfaces may abrade the Floating Cable resulting in damage and possible short-circuiting of the cleaner. Filter Bag Lay the cleaner on its back on a soft surface to avoid scratching it. -
Page 6: Air Sensor
Float. Then, place the “H”-Float, foam-side down, against the DuraMAX BiTurboT R C inside base of the Bottom Lid Assembly. Secure the “H”- DuraMAX BiTurbo T2 Float with the two screws provided by fastening them from DuraMAX the outside of the Bottom Lid Assembly. This should provide DuraMAX adequate buoyancy. -
Page 7: Operation
OPERATING INSTRUCTIONS DURAMAX Jr. HT, DURAMAX Jr. T RC, DURAMAX, DURAMAX BiTURBO T RC DuraMAX program operates by shutting DuraMAX Jr. HT Jr.HT down the Pump Motor for a 6 second period during its DuraMAX Jr. T RC operation. During this period the Cleaner will turn and then continue its cleaning cycle. -
Page 8: Remote Control
After the Power Supply main switch is turned on (fig. a) and the C-run/Reset Switch is pressed on the power supply,(fig.b) the machine will run a test sequence for the first 9 seconds. The default program for the DuraMax is floor only. The program can be changed using the R/C transmitter. (pressing the... - Page 9 Main Power Supply is turned on. This is done by switching the power supply on (fig 1) and pressing the delay button on the remote control (Fig 4). The DURAMAX TRIO is a floor cleaning machine only. The UP/DOWN button allows the machine to reverse itself on the pool floor.
-
Page 10: Changing Drive Belts
With prolonged usage of the cleaner the Drive Tracks may stretch, or wear. To DuraMAX maintain optimum performance they will require replacement. To DuraMAX access the gear assembly it is necessary to BiTurbo T2 DuraMAX remove the cleaner’s Side Plate. (1) Remove the Bumper wheel DuraMAX Duo Jr. - Page 11 Track will be made tighter. If the arrow is pointed away from the machines center the Drive Tracks will be looser. CHANGING DRIVE BELTS DURAMAX Jr HT After a number of months or years, depending on usage, the Drive Belts (Ref.# 3) [2 located behind the Side Plate...
-
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE VGB POOL COVERS The Virginia Graeme Baker Act (VGB) Pool and Spa Safety Act requires the installation and use of anti-entrapment drain covers and other systems in an effort to reduce deaths and injuries in swimming pools. These new drain covers may make it difficult or block the Cleaners ability to move over or pass by them. A feature has been added in the programing of your cleaner that will assist the Cleaner to become unstuck should it get caught on the drain cover. - Page 13 TROUBLESHOOTING GUIDE If you use a non-chlorine solution (i.e. Baquacil) to clean your pool, a clear slick film may form along your pool's walls impeding the cleaner's ability to climb. We suggest adding 225 to 300 parts per million of Calcium Hardener to your pool water to combat the film built-up.
- Page 15 S2005WBL BODY ASSY., WHITE 3400B SIDE PLATE 3203 DRIVE TRACK 3387WT BRACKET 9204N LOCK TAB 2303 LOCK TAB SCREW 7133 A6010U PUMP MOTOR ASSY. 10 2040BL OVAL SWITCH 11 5087 SPRING 12 3404 LOCK NUT 13 S10003BL HANDLE ASSY 14 5061 SCREW.
- Page 17 S2005WBL TOP HOUSING, WHITE 3400B SIDE PLATE 3203 DRIVE TRACK 3387WT JET NOZZLE BRACKET 9204N LOCK TAB 2303 LOCK TAB SCREW 7133 A6011 PUMP MOTOR ASSY. 2040BL OVAL SWITCH 10 5087 SPRING 11 3402 LOCK NUT 12 S10003BL HANDLE ASSY 13 5061 SCREW.
- Page 19 S22025W1H TOP HOUSING, WHITE 22012 HOUSING, BOTTOM 3477 BRACKET IG JET S10311 HANDLE, ASSY 2040BL SWITCH , OVAL HANDLE BRACKET 5087 SPRING, LC042G-5 7109 WASHER 2304 SCREW, S/S 10-32 x 3/4" 5050 BRASS INSERT 10 3402 USE SP3102 - NUT, HEX LOCK M5 11 11003 CLEVIS PIN 12 11004...
- Page 21 S22025WT2HTOP HOUSING, WHITE 11006 SNAP HOOK 3477 FLOAT BRACKET S10311 HANDLE, ASSY 2040BL SWITCH , OVAL HANDLE BRACKET 5087 SPRING, LC042G-5 7109 WASHER 2304 SCREW, S/S 10-32 x 3/4" 5050 BRASS INSERT 10 3402 NUT, HEX LOCK M5 11 11008 CLEVIS PIN 12 11004 WASHER...
- Page 31 S2005WBL BODY BRIGHT WHITE/BLUE. 3109 FLOAT THUNDERJET IG/AQUAJET A8324 ROPE ASSY 1110 INSERT, BRASS, 6-32 2304 SCREW, S/S 10-32 x 3/4" S38228 WHEEL TUBE ASSY, CENTER 3401 SCREW CENTER WHEEL TUBE 3477 BRACKET IG JET 2260 SCREW 2230B1 OUTLET, TOP BLUE/DUMAX 2251 SCREW 2250BL2...
-
Page 32: Warranty
1 YEAR LIMITED WARRANTY for DuraMAX Jr. HT and Duramax Jr.T RC. Duration of Limited Warranty: One (1) year from original date of purchase except for plastic parts (covered during ?rst year only). Subject to the warranty conditions above, during the twelve (12) months from original date of purchase, Aqua Products, Inc.,...
