Summary of Contents for V-Chip Microsystems VT-CC2530PA-Z1
-

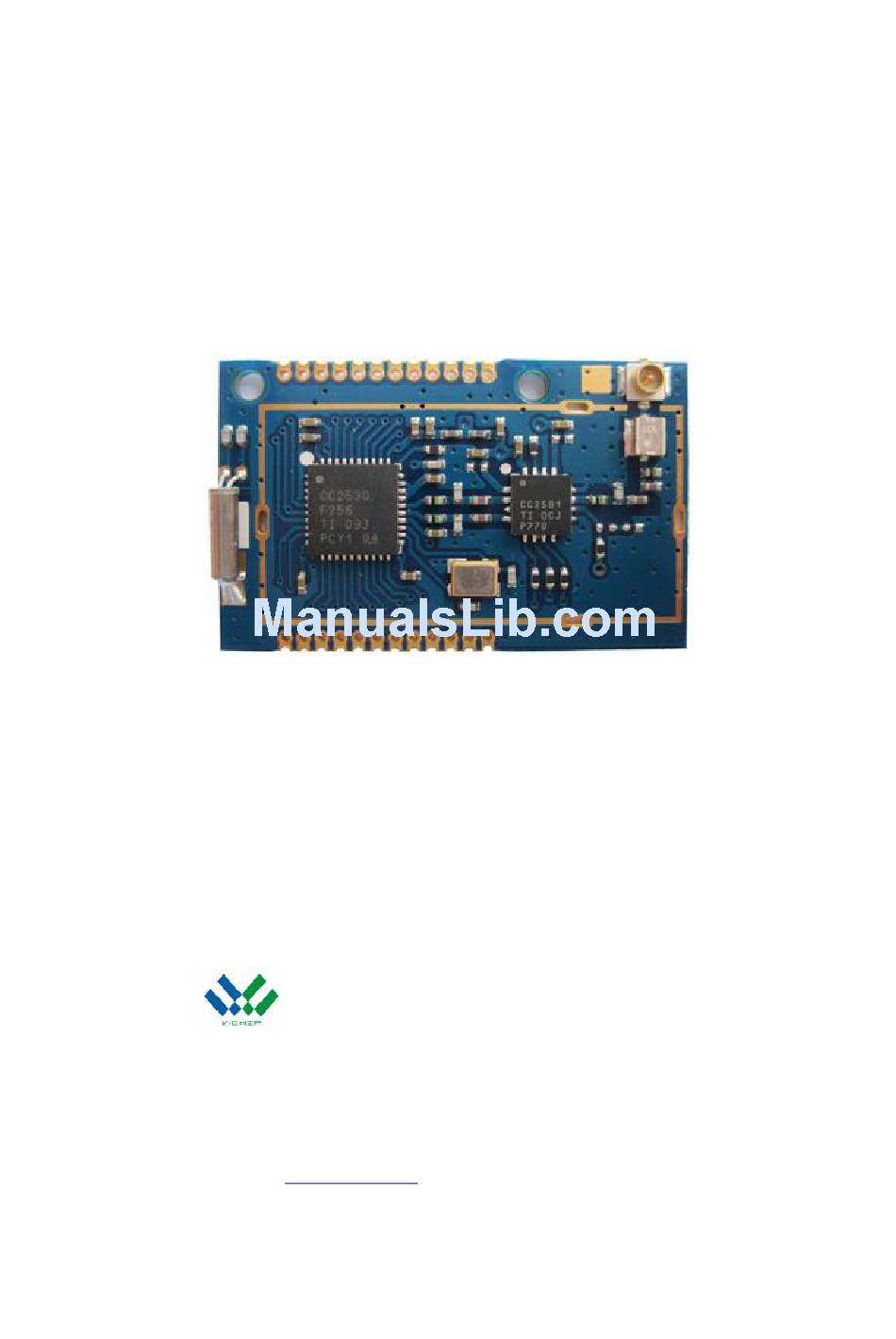

Page 1: User Guide
VT-CC2530PA-Z1 Wireless Module User Guide V-Chip Microsystems, Inc Add：6 floor, Longtang Building, Nan Shan Cloud Valley Innovation Industrial Park, No.1183, Liuxian Road, Nanshan District, Shenzhen city Tel：86-755-88844812 Fax：86-755-22643680 E-mail：sales@digirf.com ZIP：518055 Web：www.digiRF.com... -
Page 2: General Description
8051 MCU and Peripherals Powerful five-channel DMA 128KB in-system programmable flash, customization 32-,64-,256-KB 8KB RAM with retention in all power modes CSMA/CA hardware support AES security coprocessor COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012... - Page 3 RF4CE Remote Control Systems (64-KB Flash and Higher) ZigBee Systems (256-KB Flash) Home/Building Automation Lighting Systems Industrial Control and Monitoring Low-Power Wireless Sensor Networks Consumer Electronics Health Care COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012...
-
Page 4: General Characteristics
4． The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly. 5． The module mount will affect the communication distance. COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012... -
Page 5: Pcb Description
P2_0 Digital I/O CC2530 digital I/O pin P2_0 P2_1 Digital I/O CC2530 digital I/O pin P2_1 P2_2 Digital I/O CC2530 digital I/O pin P2_2 RF IO Antenna impedance 50 ohm COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012... -
Page 6: Configuration Registers
The configuration of CC2530 can be done with software SmartRF Studio7. Complete descriptions of the registers are given in the CC2530 datasheet. We can provide evaluation board and demo code to the customer to develop and evaluate the module’s capability. Dimension COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012... - Page 7 VT-CC2530PA-Z1 Antenna VT-CC2530PA-Z1 support connect an antenna with an IPEX connector. If there is some more requirement about use outer antenna, please contact with the sales. Additionally we can coordinate with you to select antenna, match antenna to the module in order to make the product work well.
-
Page 8: Questions And Answers
Hard ware tools（TI Chipcon Evaluation Board） Note： 1． You can get the development package above from the salesman when you order the module. 2． As version update，please refer to our latest development materials. COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012... -
Page 9: Important Notice
VT-CC2530PA-Z1 IMPORTANT NOTICE V-CHIP MICROSYSTEMS Co. Ltd (below called V-CHIP) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
