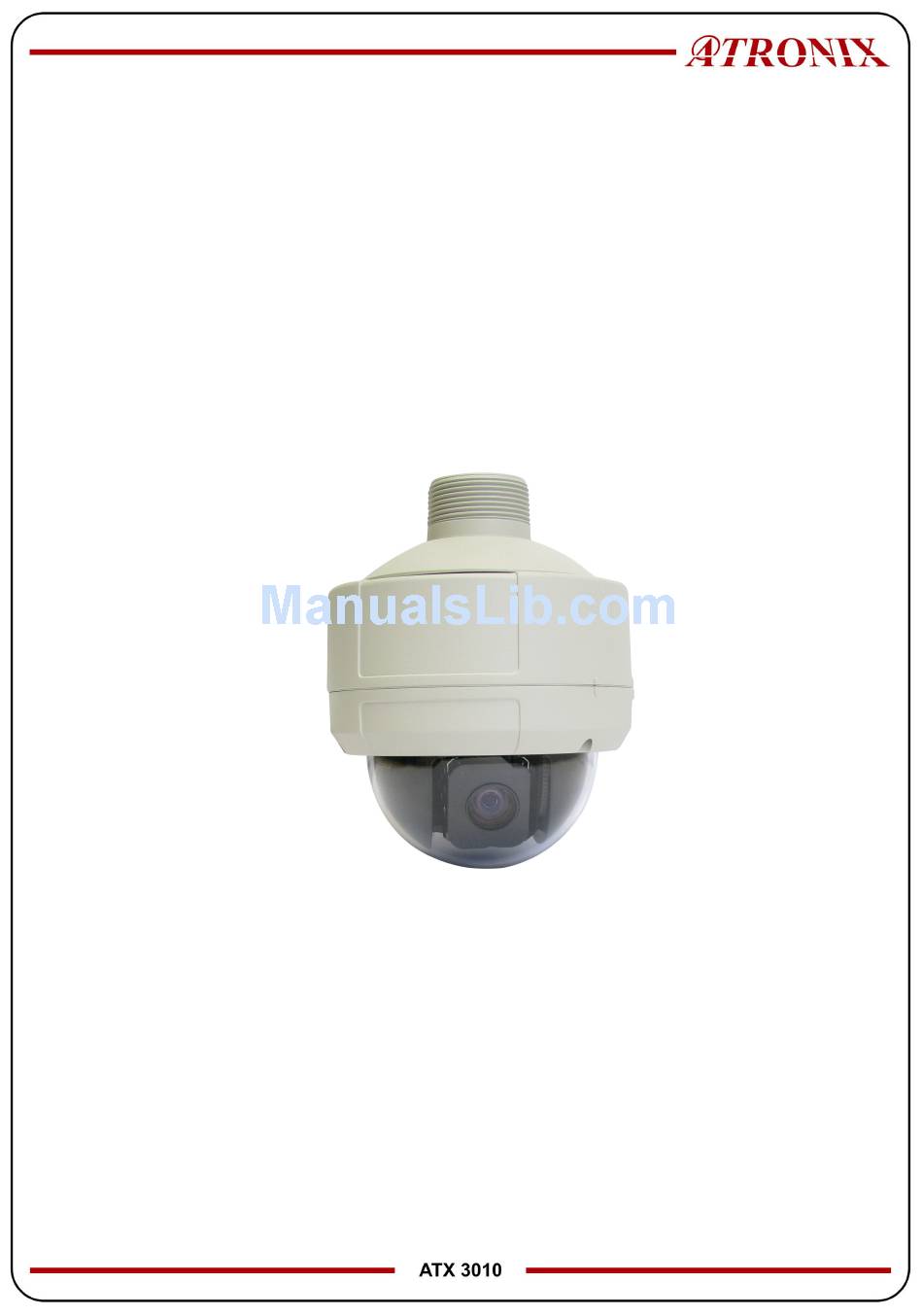

- Page 1 Integrated Mini High Speed Dome MODEL ATX 3010 ( Sony ) and ATX 3011 ( Samsung ) Installation& Programming Manual...
-
Page 2: Table Of Contents
Sumary Chapter 1 Installation manual ………………………………………… ………………………………1 1 Forward…………………………………………………………………………………………………… 1 2 Safeguards and warnings………………………………………………………………… ………..….1 3 installation warning…………………………………………………… ………………………………..1 4 Main function features……………………………………………………………………………..…... 4 5 Outdoor pendant intallation …………………………………………………….…………….… 5 6 Indoor pendant Installation………………………………………………………………………….… 8 7 Indoor surface-mount installation………………………………..………………...……….……..11 8 Technology specification……………………………………………………………..………..…... -
Page 3: Chapter 1 Installation Manual
Chapter 1: INSTALLATION MANUAL 1 FORWARD This manual introduces the function, installation and operation of the integrated speed dome camera in details. Please thoroughly familiarize yourself with the information in this manual prior to installation. This series dome cameras are equipped with DSP integrated camera, in-built zoom lens and decoder controller. - Page 4 (3) Don’t make the camera face the strong light object for long time, or the CCD would lose effectiveness, and cause the results of image losing or image distortion. (4) There are features of water proof and aquosity proof for this series camera. Meet the IP66 standard.
- Page 5 Requirements for the connect cables A. Requirements for the 24VAC power supply cable Normally, the power wires have some resistance. There is some loss during voltage transmission. The longer the wire is and the smaller the wire diameter is, the worse loss will be. Please refer to following wire diameter and distance requirement in order to avoiding the abnormal work caused by insufficient voltage.
-
Page 6: Main Function Features
B、 、 、 、 adjust the ＋ 、 － ＋ 、 － ＋ 、 － poles of ＋ 、 － can’t B. The anode and cathode of controlled RS485 are connected wrong wire RS485 C、 、 、 、 fasten the connection C. -
Page 7: Outdoor Pendant Intallation
5 OUTDOOR PENDENT INSTALLATION This series of outdoor pendant camera contains following parts, inspect each box to make sure all parts are present. picture (1) (Integrated mini dome camera) bracket selection match picture 1 Integrated mini dome camera 1 set manual 1 copy Warranty cards... - Page 8 Step 3 Insert the power supply wires, video wires, RS485 cables into the suspended bracket. Picture (4) picture(4) Step 4 : Loosen the screw of lower dome and take the lower dome off, and then take the EPE, the two dial switches can be seen there. Set the protocol, baud rate and address according to the manual, then put the lower dome back to the drive, pay attention to the position of gasket and the direction of lower dome while install.
- Page 9 Picture (6) Connection definition picture (7): Picture (7) Step 6 Insert wires of suspended dome into bracket and strew the dome camera into the bracket. Picture (8) Picture (8) Step 7 Supply power after checking...
-
Page 10: Indoor Pendant Installation
6 INDOOR PENDANT INTALLATION This series of indoor pendant camera contains following parts, inspect each box to make sure all parts are present. Picture (9) bracket（ （ （ （ other selection） ） ） ） Integrated mini dome camera picture (9) Integrated mini dome camera 1 set manual... - Page 11 Picture (11) Step 3 Insert the power supply wires, video wires, RS485 cables into the suspended bracket. Picture (12) Picture（ （ （ （ 12） ） ） ） Step 4 Loosen the screw of lower dome and take the lower dome off, and then take the EPE, the two dial switches can be seen there.
- Page 12 Step 5 Connect the video, RS485 control and power wires well as the diagram and check them. Picture(14) Picture (14) Connection definition picture (15): Picture（ （ （ （ 15） ） ） ） Step 6 Insert wires of suspended dome into bracket and strew the dome camera into the bracket. Picture(16) Picture（...
-
Page 13: Indoor Surface-Mount Installation
7 INDOOR SURFACE-MOUNT INSTALLATION This series of indoor surface-mount camera contains following parts, inspect each box to make sure all parts are present. Picture (17) Picture 17 Integrated mini dome camera 1 set upper cover board 1set manual 1 copy guarantee 1 copy certification... - Page 14 Step 2 Get the power supply wires, video wires, RS485 cables through the upper cover board. Picture (19) Picture（ （ （ （ 19） ） ） ） Step 3 Loosen the screw of lower dome and take the lower dome off, and then take the EPE, the two dial switches can be seen there.
-
Page 15: Technology Specification
Picture 22 Step 5 Insert wires of suspended dome into bracket and put the dome drive into the upper cover board then strew about 60° , when the dome drive is in the right position, use M3 screw to fix the upper and lower cover board together. - Page 16 Picture(19) surface-mount Indoor pendant (picture 20) Weight(approx.) Net weight Transportation weight Surface mount one 2.3kg 5.0kg Indoor pendant one 3.0kg 7.3kg Outdoor pendant one 3.2kg 7.5kg working environment indoor/outdoor working temperature -40ºC ~50ºC...
- Page 17 8.2 Features of Pan/Tilt (only for dome drive) Pan rotation 360º continuous pan rotation Tilt rotation 0º -90º unobstructed tilt rotation Manual control speed: Pan speed 0.1º-150º/sec Tilt speed 0.1º-100º/sec Preset speed: Pan speed 150º/sec Tilt speed 80º/sec 8.3 Electrical index Input voltage AC24V standard，...
-
Page 18: Chapter 2 Operation
Gain ctrl auto/manual (-3~28dB) Normal/high/close Video output 1.0Vp-p/75 1.0Vp-p/75 S/N ratio 50dB 50dB White balance auto/Manual auto/Manual Chapter 2 OPERATION 1. BASIC FUNCTION EXPLANATION After connect all wirings as the instruction and turn on the power, the dome camera will display its configure information. - Page 19 2. PROTOCOL P is control agreement, can support P, D protocol, and it will change as the dial switch chooses different protocol. 3. ADDRESS 1 is control address, can support 256 addresses, and it will change as the dial switch chooses different protocol. 4.
- Page 20 2.release the button or joystick 1.Press the ZOOM TELE button or turn the joystick anti-clockwise ZOOM TELE until you have the picture you want 2.release the button or joystick Continuously press key OPEN to open iris and increase brightness IRIS OPEN gain Continuously press key CLOSE to close iris and increase IRIS CLOSE...
-
Page 21: Ptz Functions
2. PTZ FUNCTIONS This series of high-speed dome camera manual pan speed 0.1 º -150 º/second, manual tilt speed 0.1 º ~80 º/second. Pan/tilt speed and lens zoom is proportional, darker the lens zoom, slower the speed is! The current position of P, T, Z three orientations (presetting positions) can be stored and repeat use. 3. -
Page 22: Menu Explanation
3.8 Pattern Any movement of pan/tilt/zoom of dome can be stored, it is pattern. In pattern, track of pan/tilt’s up, down, left, right and zoom as well as transferring preset can be stored. The function is suitable for record and simulate part of operation. 3.9ZERO TEST The dome camera will turn to horizontal and tilt zero by preset 34 when the inevitable desynchronizing appears or the operator wants to find zero position during working process. -
Page 23: Camera Menu
The basic operation contains move menu bar, enter next menu, return former menu, change setting, verify change and cancel change. Control up and down command: move menu bar and change setting Iris open command: enter camera menu or select menu to verify change Iris closed command: return former menu and cancel change 4.2 OPEN/EXIT MENU This dome camera opens menu by preset 95 and exit by preset 94 according to P control protocol. - Page 24 CAMERA TYPE 5.2 SECOND MENUⅠ COMM 4800 N 8 1 COMM PROTOCOL PROTOCOL ADDRESS ADDRESS VERSION 1.10 VERSION AUTO EXIT TIME AUTO EXIT TIME, 5,6,7,8,9,10 minutes NOTE: Except AUTO EXIT TIME, other items can BACK only be showed not change in the menu. 5.3 CAMERA MENU 5.3.1 SONY CAMERA MENU I CAMERA...
- Page 25 <NEXT> 5.3.2 SONY CAMERA MENU AUTO IRIS AUTO AUTO IRIS LEVEL AUTO IRIS AUTO IRIS PEAK AUTO IRIS LEVEL SHUTTER MODE AUTO AUTO IRIS PEAK SHUTTER SPEED 1/50 SHUTTER MODE AGC MODE AUTO SHUTTER SPEED GAIN AGC MODE AUTO WHITE BALANCE AUTO GAIN R GAIN...
- Page 26 5.3.3 SUMSUNG CAMERA MENU I CAMERA AUTO FOCUS AUTO FOCUS ZOOM LIMIT ZOOM LIMIT ZOOM SPEED ZOOM SPEED SHARPNESS LEVEL SHARPNESS LEVEL BACKLIGHT COMP BACKLIGHT COMP VIDEO FREEZE VIDEO FREEZE DAY/NIGHT MODE AUTO DAY/NIGHT MODE NEXT NEXT BACK BACK AUTO FOCUS default ON Two modes: ON and OFF ZOOM LIMIT...
- Page 27 <NEXT> AUTO IRIS AUTO 5.3.4 SUMSUNG CAMERA MENU AUTO IRIS LEVEL AUTO IRIS AUTO IRIS PEAK AUTO IRIS LEVEL SHUTTER MODE AUTO AUTO IRIS PEAK SHUTTER SPEED 1/50 SHUTTER MODE AGC MODE HIGH SHUTTER SPEED GAIN AGC MODE AUTO WHITE BALANCE AUTO GAIN R GAIN...
- Page 28 5.4 PAN&TILT MENU PAN/TILT AUTO FLIP AUTO FLIP PROPORTIONAL PAN PROPORTIONAL PARK ACTION PARK ACTION NONE PARK TIME PARK TIME 30min PRESET TOUR TIME PRESET TOUR TIME SCAN SPEED SCAN SPEED 10d/s MANUAL STOPS MANUAL STOPS SCAN STOPS SCAN STOPS ANGLE DISPLAY ANGLE DISPLAY...
-
Page 29: Dome Camera Switch Setting
5.5 System power up mode POWER UP POWER UP ACTION POWER UP ACTION NONE POWER UP TIME POWER UP TIME 2min BACK BACK POWER UP ACTION Default NONE 13 modes: NONE、 、 、 、 1PRESET~8PRESET、 、 、 、 SCAN、 、 、 、 PRETOUR、 、 、 、 PATTERN RESUME POWER UP TIME Default 2min POWER UP TIME range: 2~10 minutes... - Page 30 6.3 Switch setting for SW2 Note: Switch SW2 is used to set receiving address. Protocol P addresses setting : SWITCH SETTING ADDRESS SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8...
- Page 31 ------ ------ ------ ------ ----- ------ ------ ------ D PROTOCL ADDRESS SETTING SWITCH SETTING Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8...
-
Page 33: Appendix
------ ------ ------ ------- ----- ------ ------ ------ Appendix 1 P control protocol 1) Command format BYTE VALUE FUNCTION STX(start transmission) $00 to $FF Address Data byte 1 Data byte 2 Data byte 3 Data byte 4 ETX(end transmission) $00-$FF Check sum (XOR 1-7 bytes) 2) Instruction command number... - Page 34 3) Special command format COMMAND DATA BYTE1 DATA BYTE2 DATA BYTE3 DATA BYTE4 Set Preset .xx 01 to FF Clear Preset .xx 01 to FF Go to preset .xx 01 to FF Filp Zero pan position Set aux. xx 01 to 08 Clear aux.
- Page 35 PELCO D control protocol 1) Command format: BYTE VALUE FUNCTION STX (start transmission) $01 TO $1F Address Data byte 1 Data byte 2 Data byte 3 Data byte 4 $00-$FF Checksum(add byte 2,3,4,5,6) 2) Instruction command: number Camera Aauto Camera Iris Iris Focus...
-
Page 36: Appendix Troubleshooting
Down FF 01 00 10 00 23 34 OPEN FF 01 02 00 00 00 03 CLOSE FF 01 04 00 00 00 05 NEAR FF 01 01 00 00 00 02 FF 01 00 80 00 00 81 Appendix TROUBLESHOOTING 1. - Page 37 cathode control wires of the farthest camera. Ask: other controls are normal except it can not rotate at a direction. First check if any mechanical troubles without electrifying. If it can run well, check if the belt broke or loose. If yes, it is caused by the control decode board troubles. Ask: the camera automatically rotates after electrifying.
- Page 38 diameter is, the worse loss it will be. The high the signal frequency is, the more obvious loss is. normal video wires models and the MAX. transmission distance are listed in following table: Video wire model Max. distance Video wire model Max.
