ToyPark WT-549 User Manual

Portable radio wireless walkie talkie with auto squelch control

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

英文

Page 1 of 8

2008-6-19

WT-549 USER MANUAL (full features, US version)

Congratulations

You have just purchased a qualified 2 way radio. Please read this manual carefully

before use for correct operation. You should also handle this manual with care for

future reference.

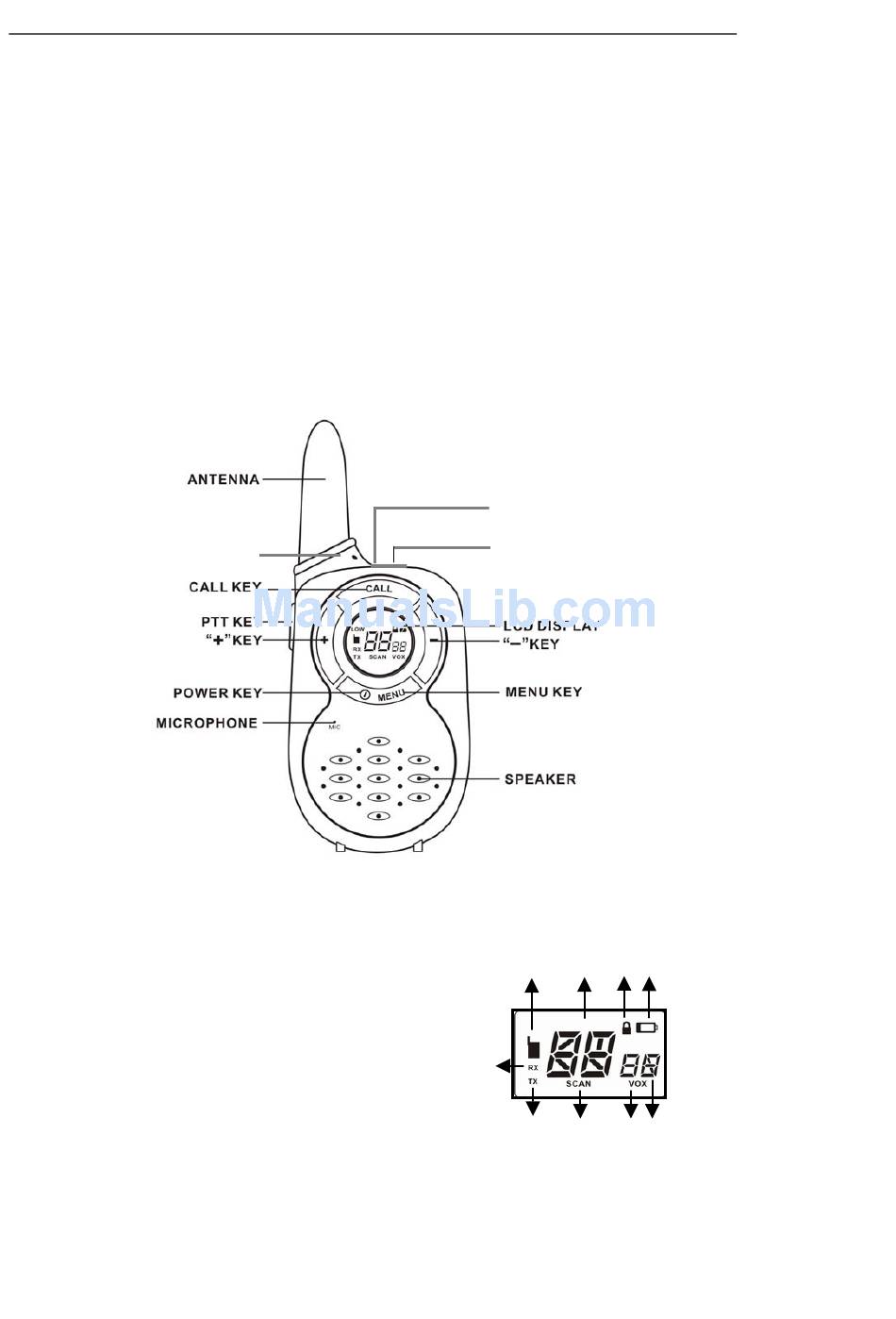

BUTTONS AND CONTROLS

CHARGER JACK

EARPHONE/ MIC JACK

NECK STRAP HOLE

Main Screen (Fig.1)

3 4

1. Operation Mode Indicator

2. Channel Number Display

3. Key Lock Indicator

4. Battery Icon

5. Sub code

6. VOX

7. Channel Scan Indicator

8. Transmission Indictor

Fig.1

9. Reception Mode

Table of Contents

Need help?

Do you have a question about the WT-549 and is the answer not in the manual?

Questions and answers

Summary of Contents for ToyPark WT-549

Page 1 英文 Page 1 of 8 2008-6-19 WT-549 USER MANUAL (full features, US version) Congratulations You have just purchased a qualified 2 way radio. Please read this manual carefully before use for correct operation. You should also handle this manual with care for future reference.
Page 2 英文 Page 2 of 8 Battery Installation 1. Turn off the radio and remove the belt clip. 2. Open the battery compartment door. 3. Insert 3 x “AAA” alkaline batteries according to the anode-cathode signs shown in the battery compartment. 4.
Page 3 英文 Page 3 of 8 B. “Walkie Talkie” Operation S elect the same channel as that of your friend’s . e.g. CH=01, SC-38 1. Press MENU key once to enter channel selection menu.(Fig.4.1) 2. Press + or – key to change the channel. 3.
Page 4 英文 Page 4 of 8 Function Setup Procedure You may simply set up the function by referring the table below: Channel Subcode Auto Channel Function Monitor Call Tone Key Tone Roger Beep Selection Selection Scan Application Select the channel Select Scan the channel Received all signal Call...
Page 5 英文 Page 5 of 8 2. Supply power : 7.5V/600mA 3. Charging time is not over 6 hours. A. Recharging by AC / DC adaptor Simply plug the charging adaptor into the charger jack and then turn on the radio, the battery level icon shows while charging until the batteries are fully charged.
Page 6 英文 Page 6 of 8 462.6875 467.7125 462.7250 462.7125 462.5500 467.5625 462.5750 Interference Eliminator Code Chart(Hz) Code Frequency Code Frequency Code Frequency 67.0 107.2 167.9 71.9 110.9 173.8 74.4 114.8 179.9 77.0 118.8 186.2 79.7 123.0 192.8 82.5 127.3 203.5 85.4 131.8 210.7...
Page 7 英文 Page 7 of 8 - Radio are too far apart. Obstacles interfere with transmission. - Talk range is up to 3 km in clear and unobstructed conditions. Caution: - Please avoid charging for non-rechargeable batteries in the product as charging operation can only be performed with suitable rechargeable batteries.
Page 8 英文 Page 8 of 8 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
