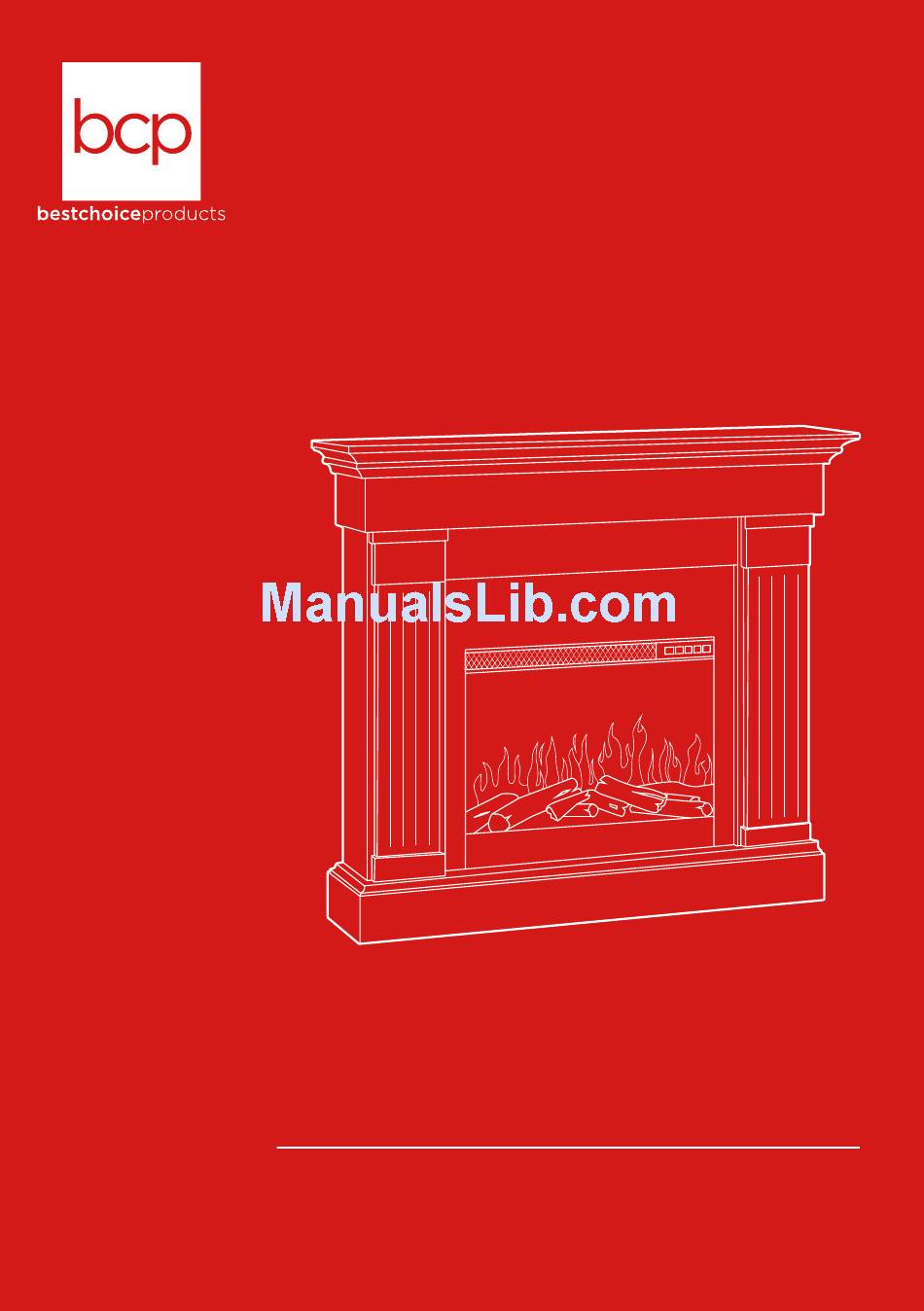

- Page 1 INSTRUCTION MANUAL Wood Mantle Electric Fireplace SKY3024 Ver. 2...
-
Page 2: Specifications
NOTICE Please retain these instructions for future reference. • Please read through all instructions before mounting and using this fireplace. • Do not use the fireplace insert with any other mantel than the one provided by the manufacturer. • Do not use this heater if it is not installed properly in the mantel. •... -
Page 3: Tools Required
TOOLS REQUIRED PHILLIPS STUD FINDER 2 PERSON APPROXIMATELY SCREWDRIVER (OPTIONAL) ASSEMBLY 1 HOUR ASSEMBLY HARDWARE CAM LOCK CAM BOLT 6x25MM WASHER 6X12MM 21 PCS 16 PCS 19 PCS 4 PCS 21 PCS BRACKET WALL ANCHOR ANCHOR SCREW SUPPORT SCREW SUPPORT ANCHOR 1 PC 2 PCS 2 PCS... -
Page 4: Product Assembly
PRODUCT ASSEMBLY Please retain these instructions for future reference. Screw six part 2 cam bolts into the part A base. Screw seven part 2 cam bolts into the part H top panel. Screw three part 2 cam bolts into the outside edge of the part D left front panel. Insert the cam bolts into the designated holes on the part B left side panel. - Page 5 PRODUCT ASSEMBLY Lower both side panels onto the cam bolts on the part A base. Insert four part 1 cam locks into the side panels, two on each panel. Fasten the cam locks to secure the side panels. Lower the part I left trim onto the cam bolt on the part A base.
- Page 6 PRODUCT ASSEMBLY Attach part K lower trim with two part 3 screws and two part 4 washers. Attach part L upper trim with three part 3 screws and three part 4 washers. Pg. 6...
- Page 7 PRODUCT ASSEMBLY Attach part F lower center panel with two part 3 screws and two part 4 washers. Screw two part 2 cam bolts into the part G upper center panel and insert the cam bolts into the designated holes on the side panels.
- Page 8 PRODUCT ASSEMBLY Lower part H top panel onto the assembly, inserting the cam bolts into the designated holes on the top of the assembly. Insert seven part 1 cam locks into the top panel and fasten the cam locks to secure the top panel. Attach part M fireplace support with two part 3 screws and two part 4 washers.
- Page 9 PRODUCT ASSEMBLY Attach the fireplace to the assembled mantel with four part 5 screws and four part 4 washers. Pg. 9...
- Page 10 SECURING THE MANTEL AND FIREPLACE • Use a stud finder to locate a stud that you can anchor your mantel to (optional). • Mark holes for screwing in the part 6 bracket. Note: Bracket should be 3 inches lower than the height of the completed mantel.
-
Page 11: Remote Control Operation
HEATER/FIREPLACE OPERATION • This appliance has a safety-cut o that will engage if the fireplace overheats. The fireplace will NOT automatically reset for safety reasons. To reset the appliance, unplug the unit for 15 minutes and then plug it back in. •... -
Page 12: Product Warranty Information
WARNINGS REGARDING BATTERIES • Do not mix alkaline, standard (carbon zinc) and rechargeable (nickel hydride) batteries. • Do not mix old and new batteries. • Non-rechargeable batteries should not be charged. • Rechargeable batteries should be charged under adult supervision only. •...
