Summary of Contents for OP Link SNH1300
-

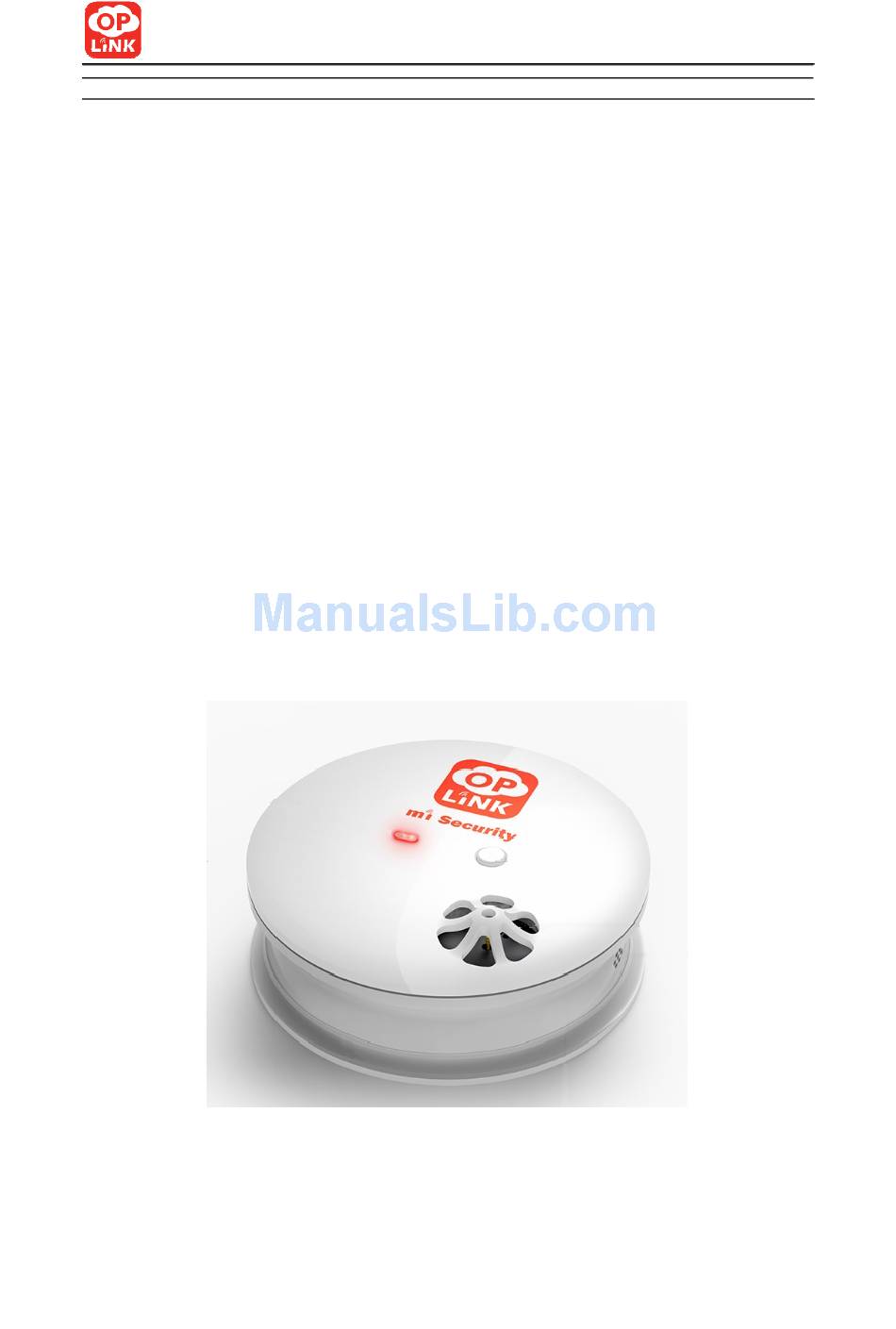

Page 1: User Manual
Oplink Communications User manual Sonic & Heat Sensor Model No: SNH1300 Version 0.1 May, 2013 1 / 5... - Page 2 Oplink Communications Sonic & heat sensor is a device that is used to warn people of a possible fire. The alarm is designed to go off when detected smoke alarm sounds or when a certain temperature is met or when the temperature in a room rises at a certain rate.
- Page 3 Oplink Communications 1. Over 57+/-3℃ 2. Temperature changes by more than 6.7 ° C / minute Power Source DC3.0V 1400mAH Li-Battery Standby Mode Current ≤70μA Alarm Mode Current ≤40mA Power Consumption 1 year (Triggered twice a day and the noise less than 70 dB) RF transmission test By pushing the button on top surface...
- Page 4 Oplink Communications Environmental Standard RoHS, REACH Communication RF Frequency 433.92MHz +/-150KHz Modulation Antenna Internal Antenna Transmit Power >= -2dBm Output conductive TX power TBD (without Antenna) RF Range 40m indoor (Line of sight, LOS) 100m Outdoor(Line of sight, LOS) Mounting 1.
- Page 5 Oplink Communications FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
