Manual

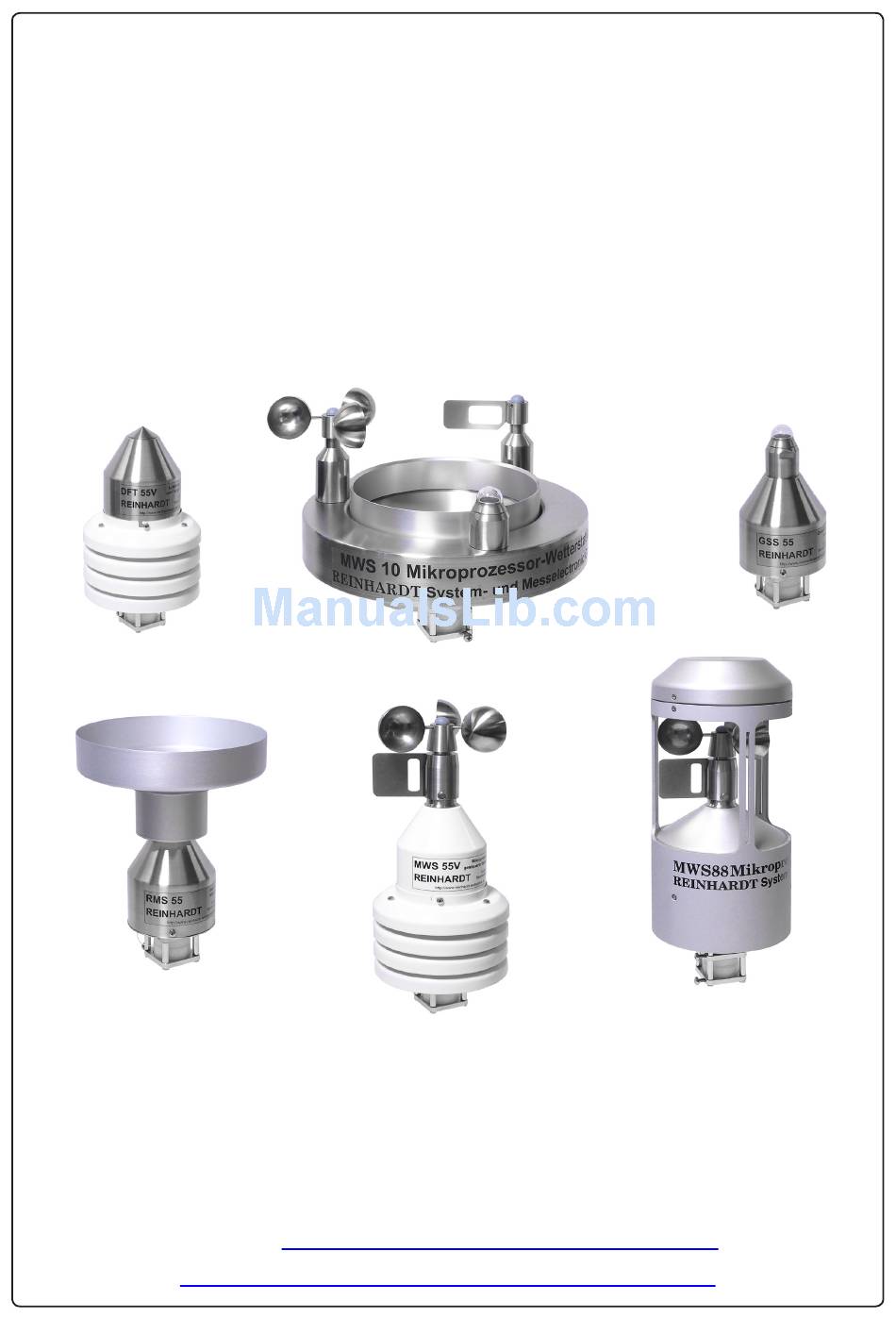

MWS 55 / MWS 88 / MWS 10
Microprocessor Weather Station
Sensors 55
and
with data logger (SD-card)
REINHARDT System- und
Messelectronic GmbH
Bergstr. 33, D-86911 Dießen-Obermühlhausen
Tel. 0049 - (0) 8196/934100
Fax 0049 - (0)8196/7005 or 1414
E-Mail:
wetter@reinhardt-testsystem.de
http://www.reinhardt-wetterstationen.de
