Summary of Contents for EtherTek Circuits RMS-200

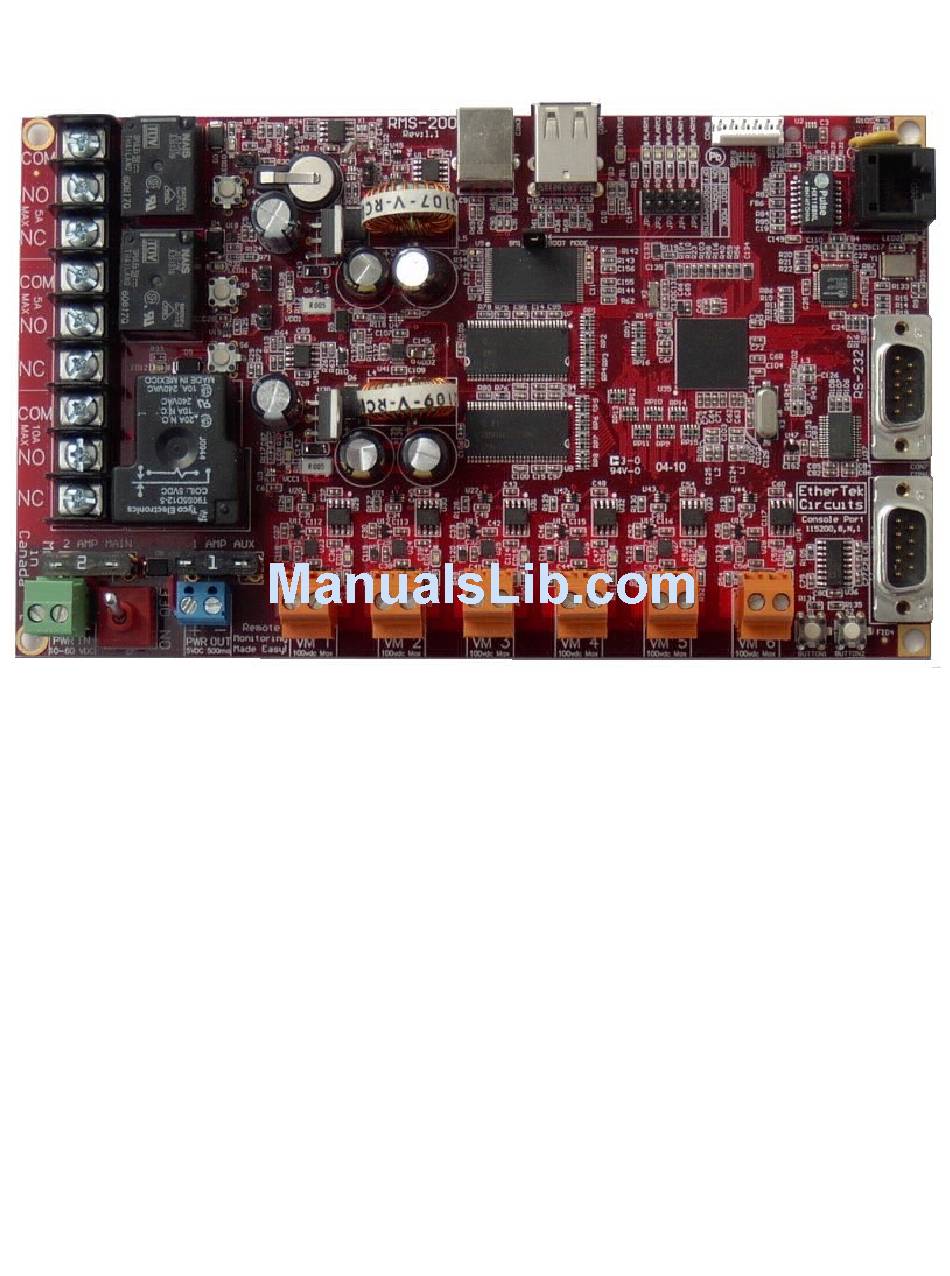

  • Page 1 RMS-200 (C) EtherTek Circuits...
  • Page 2 O w n e r s M a n u a l...
  • Page 3 R E M O T E M O N I T O R I N G M A D E E A S Y ! RMS-200 Owners Manual (Rev 1b) June 6, 2011 © EtherTek Circuits 473 Corina Ave • Unit 38...

  • Page 4: Table Of Contents

    A/C or Battery Powered Microwave, Telephony, Network Equipment ... 1 Configuration ................4 Setting up RMS-200 ................4 RMS-200 is powered up, Now What ? ..........5 Installation .................. 7 Basic installation example 1 .............. 7 Basic installation example 2 .............. 8 Basic installation example 3 ..............
  • Page 5 FTP Based Upgrade ............... 39 Downloads ................42 Specs ..................42 Base System 256Mb Flash / 64Mb Ram ........42 General Board Information .............. 42 Block Diagram ................. 43 Graphs ..................44 Warranty .................. 45...

  • Page 6: Introduction

    No more guessing what your battery levels are. No more wondering if your signal strengths are at an acceptable level. No more long drives to reset a fussy radio. Let RMS-200 do this all remotely via the Internet...
  • Page 7 R E M O T E M O N I T O R I N G M A D E E A S Y ! Features Six layer PCB with Nickel Immersion Gold plating and red solder mask. • 400 - MHz Arm Processor (500 Mips !). •...
  • Page 8 Fping, SMTP email client, IPtables, Lrz and Lsz, Open SSL, Modbus Library, RRD Tool, USB Web Camera Support. A programmers dream: RMS-200 comes with PHP, Python, and Lua. Make your own custom monitoring programs and upload them to the RMS-200 board, or create your own branded interface!

  • Page 9: Configuration

    (See figure 1). Connect an Ethernet cable to the rj-45 jack on the RMS-200 board. Turn the device on with the on/off switch. It takes the RMS-200 board approximately 30 seconds to bring up the Linux operating system. The RMS-200 will signal it is ready by first blinking the green status light in a continuous heartbeat sequence.

  • Page 10: Rms-200 Is Powered Up, Now What

    You should be presented with a password box like the one below. Enter in the default username and password then press the OK button. You will be taken to the RMS-200 Home page. This page contains an overview of all of the functionality of the RMS-200 board.
  • Page 11 Here you will want to visit the following areas: Company Setup , Network , System Time , and Change Password. Adjust the Station Name, Location, Domain Name, IP Address, Subnet Mask, Gateway, DNS, and password you want the RMS-200 device to have.

  • Page 12: Installation

    Once you have RMS-200 configured properly, it is ready to deploy in the field. Below are some basic examples of how to install the RMS-200 unit.

  • Page 13: Basic Installation Example 2

    Simply attach the RSSI output from the radio to one of the Voltmeter inputs on the RMS-200 board (see Figure 3). Monitor the signal strength of your radios with a web browser and/or have RMS-200 alert you by email if the signal falls below a certain threshold.

  • Page 14: Basic Installation Example 3

    Relays. Attach the other side of the cut wire to the NC (normally closed) terminal on the corresponding Power Relay. Reset your device at any time using RMS-200. Note: in the Normally Closed configuration, power still flows to your device even when the RMS-200 device is turned off.

  • Page 15: Basic Installation Example 4

    These contacts allow current to flow through them when they are in close proximity with each other. RMS-200 can sense when the contacts are together or apart. Program the alarm pins to send an email, run a custom file, and/or toggle a relay when the door gets opened.

  • Page 16: The Relays

    Control of each relay can be done with a web browser. The picture below shows a portion of the RMS-200 relays web interface. In the picture below all relays are in the default "Normally Closed" position. By clicking on the relay 1 icon…...
  • Page 17 The relay will be toggled to the "Normally Open" position as shown below. The relays can also be toggled with RMS-200 relay Scripts. Relay scripts are made up of simple commands that control the relays. Complex relay actions can be performed to control your equipment.
  • Page 18 Control of the RMS-200 relays can also be done by using telnet or ssh. Below is an example of using the rmsrelay command to toggle relay 1 on and off. Below is an example of reading the status of Relay 1 using the command line interface.
  • Page 19 PHP programmers may want to write their own programs to control the relays. Below are two example PHP functions that use the PHP system command to turn relay 1 on and off. <?php # EtherTek Circuits 2001 - 2010 #*********************** #* Relay 1 ON Function...

  • Page 20: Need More Relays

    Need More Relays? If the three on board relays on the RMS-200 board are not enough for your needs, you can add five additional relays by adding a USB relay board. The USB Relay Board gives you control of 5 SPDT relays for general purpose use via the standard USB Bus.
  • Page 21 Below is the USB Relay Board setup interface. The RMS-200 will automatically detect any USB Relay Boards found. Here you can select which Relay Daughter Board you want to work with. Decide if you want the USB Relay Board to start when the RMS-200 system is booted, then click OK.
  • Page 22 This page shows at a glance the status of each relay and provides a gateway for more relay options. To refresh the web page you can press the Refresh button. To have the web page automatically refresh, set the refresh rate.

  • Page 23: The Voltmeters

    The Voltmeters Each voltmeter is capable of measuring up to ±100 VDC with 24-bit accuracy. Each voltmeter has its own 24 bit Delta Sigma ADC. The data and power lines for each voltmeter are isolated with a chip-scale air core transformer. This enables each voltmeter to measure different DC voltage sources without any effect on the main board or other voltages.
  • Page 24 Below is a screen shot of the RMS-200 voltmeter overview page. This page shows at a glance all voltmeter readings and provides a gateway for more voltmeter options. In the screen shot below voltmeter 1 is displaying a positive reading of a 12v battery bank.
  • Page 25 Trigger Actions on Boot” check box is used to stop actions from happening when the RMS-200 board is warm or cold started. Each voltmeter has a High, Normal, and Low trigger range. Each High and Low trigger range has a maximum and minimum value. The range in between the maximum and minimum value acts like a dead band area.

  • Page 26: Voltmeter Graphs

    Below is the Low Trigger interface. The Low Trigger is used when the voltage falls below the Low Trigger maximum value. The Normal Trigger is used when the voltage rises above the Low Trigger minimum value. Below is an example of reading the voltmeters on the command line. The voltmeter data files can be found in the /var/rmsdata/ directory.

  • Page 27: How To Measure Amperage By Using A Shunt

    Using a common shunt, it is possible to obtain a millivolt reading that relates to an amperage reading. The voltmeters on the RMS-200 board are perfect for this as they are very sensitive and can easily read millivolt readings. For greater accuracy, put the RMS-200 voltmeters in to low voltage mode by removing the mode jumper for a particular voltmeter.
  • Page 28 Below is an example diagram of how to use RMS-200 with a shunt to measure charging from a solar panel array. The negative solar panel lead is connected to the battery negative terminal. The positive solar panel lead is routed to the positive battery terminal by way of a 50 millivolt 50 amp current shunt.
  • Page 29 This technique can be used to measure DC current being put into your batteries by solar panels, a wind generator, or a battery charger. RMS-200 can monitor your voltage and amperage remotely and alert you to dangerous battery conditions.
  • Page 30 Below is an example of how to use RMS-200 with a shunt to measure current draw from your equipment. The negative load wire is connected to the battery negative terminal. The positive wire is routed to the positive battery terminal by way of a 50 millivolt 25 amp current shunt.

  • Page 31: Need More Voltmeters

    Need More Voltmeters? If the six on board voltmeters on the RMS-200 board are not enough for your needs, you can add six additional isolated voltmeters by adding a USB isolated voltmeter board. The USB Isolated Voltmeter Board gives you control of six +/- 100vdc isolated voltmeters via the standard USB Bus.
  • Page 32 Clicking on the VDB icon in the left navigation bar takes you to the main setup page of the USB Isolated Voltmeter board. Below is a screen shot of the familiar voltmeter setup page. This page shows at a glance all voltmeter readings and provides a gateway for more voltmeter options.
  • Page 33 DVM. The “Suppress Trigger Actions on Boot” check box is used to stop actions from happening when the RMS-200 board is warm or cold started. Each voltmeter has a High, Normal, and Low trigger range. Each High and Low trigger range has a maximum and minimum value.
  • Page 34 Below is the Low Trigger interface. The Low Trigger is used when the voltage falls below the Low Trigger maximum value. The Normal Trigger is used when the voltage rises above the Low Trigger minimum value.

  • Page 35: The Temperature

    The RMS-200 web interface has High and Low triggers that can be set to fire alerts or scripts when the temperature is either too high or too low. Use the relay scripts to turn on a cooling fan for example.
  • Page 36 Below is the Low Trigger interface. The Low Trigger is used when the temperature falls below the Low Trigger value. The Normal Trigger is used when the temperature raises above the Low Trigger value. Below is an example of reading the temperature on the command line. Note: the file tempf contains the board temperature in Fahrenheit.

  • Page 37: The I/O Pins And Push Buttons

    The I/O Pins and Push Buttons Below is a screen shot of the RMS-200 I/O overview page. Here you can choose which of the boards Alarm or I/O pins to control. RMS-200 has 5 dedicated Alarm Pins that have a corresponding LED.
  • Page 38 Below is a screen shot of the RMS-200 I/O setup page for GPIO 1. GPIO pins can be configured to be 3.3 volt Inputs or Outputs. Use these pins to control any manner of devices, or sense condition changes and react with alerts or scripts.

  • Page 39: Gpio

    GPIO Below is a pinout diagram of Con 8 on the RMS-200 board. These are 3.3 volt general purpose I/O pins. Note: Pin 1 is VDD (3.3 volts). Pin 2 is General Purpose I/O pin 1. Pin 3 is General Purpose I/O pin 2.

  • Page 40: Push Buttons

    Button 3 Note: When the RMS-200 is booting up it first checks to see if Button 2 is being held down. If Button 2 is held down then all of the configuration files in /etc are re-written bringing the RMS-200 unit to a factory default condition.

  • Page 41: Usb Support

    Dlink USB stick have been tested giving RMS-200 an alternative path to the internet. GENERAL USB SUPPORT RMS-200 supports a wide variety of USB devices. Check with us to find out if your USB device can be made compatible with RMS-200.

  • Page 42: Firmware Upgrades

    Firmware Upgrades Please visit http://www.remotemonitoringsystems.ca/rms200/firmware.php for the newest firmware revisions for your RMS-200 board. There are two easy ways to upgrade the firmware on the RMS-200 board. You may either choose the Web Browser based method or the FTP based method.
  • Page 43 There may be a short delay before the new connection is accepted. This connection will now close. When the firmware programming is complete, the RMS-200 board will reboot with the new firmware image. Wait 45 seconds and then reconnect. When connection is reestablished you...

  • Page 44: Ftp Based Upgrade

    C:\ drive called RMS200 that contains the firmware that you would like to upload to your RMS-200 board. The example below assumes that the Telnet Server has been enabled on the RMS-200 board. In the example below a rootfs firmware upgrade is used.
  • Page 45 Log into your RMS-200 board with the ftp command. The example below uses the default RMS-200 ip address 10.10.10.10. Once logged in, as shown below, type out and press Enter. Next type out cd /data and press Enter. Then type out...
  • Page 46 You should see similar output to what is shown below. When the firmware programming is complete, the RMS-200 board will reboot with the new firmware image. After 45 seconds you may reconnect to the RMS-200 board and upload your data base, add scripts etc.

  • Page 47: Downloads

    Downloads Please visit http://www.remotemonitoringsystems.ca/rms200/downloads.php for current downloads such as SNMP mib file. Specs Base System 256Mb Flash / 64Mb Ram 150ma @ 12.2v = 1.830 Watts Relay power consumption: relay1 add 42ma relay2 add 42ma relay3 add 42ma relay4 add 91ma Relay Total for all relays energized: 217ma @ 12.2v = 2.647 Watts Bare Board = 150ma + 217ma for all relays = 367ma.

  • Page 48: Block Diagram

    Block Diagram...

  • Page 49: Graphs

    Graphs The graphs below were created by the RMS-200 board using RRD Tool. Graphs are available for each voltmeter, temperature, and system load.

  • Page 50: Warranty

    Authorized Service Provider; (c) to a product or a part that has been modified without the written permission of EtherTek Circuits. The RMS-200 circuit boards are supplied as OEM-type equipment and not in retail form. It is imperative that the user/purchaser understands the correct installation, configuration and operation of this equipment.
  • Page 51 THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. EtherTek Circuits SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
