Summary of Contents for SMAR DF17

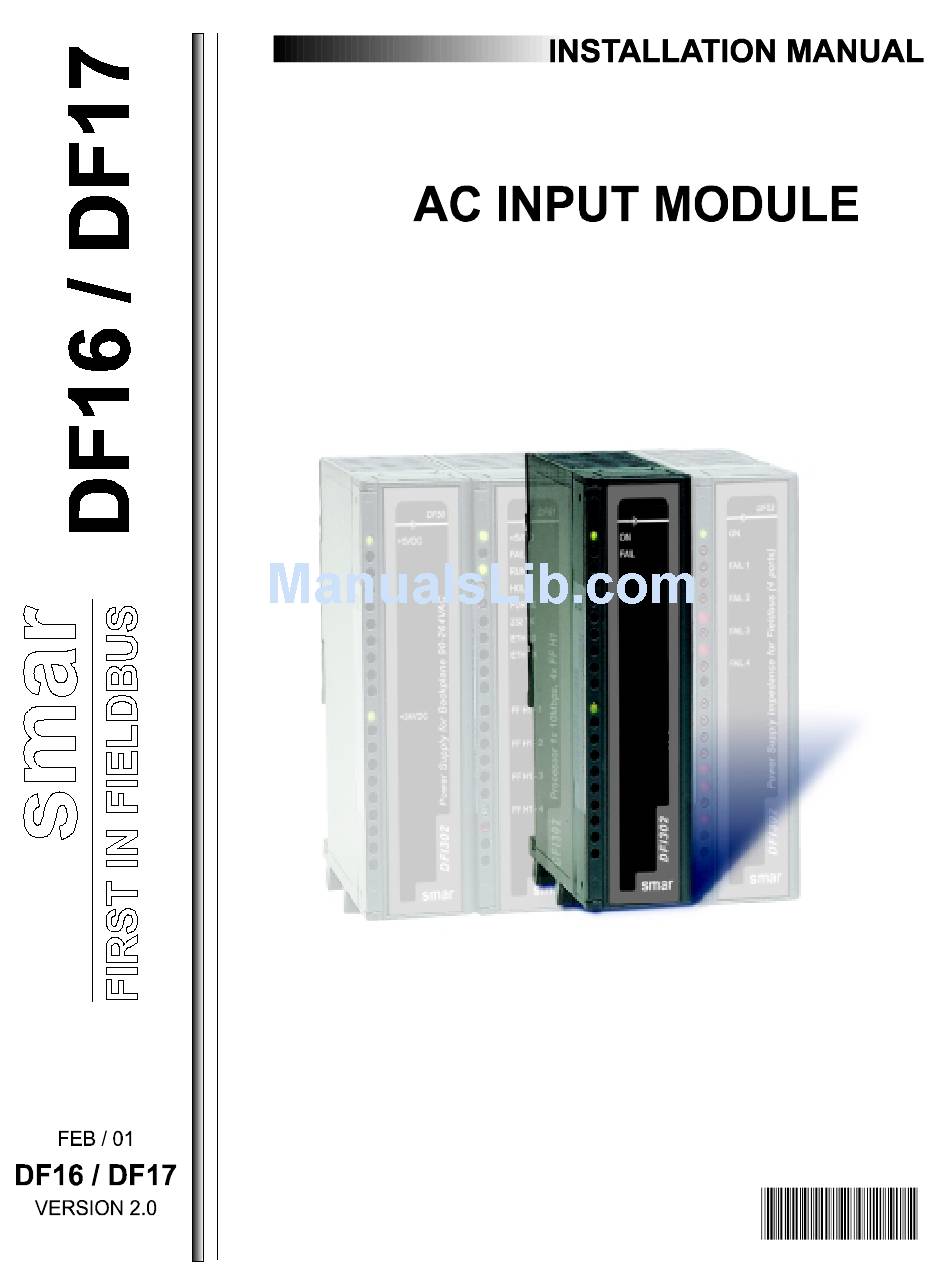

- Page 1 D F 1 6 - 1 7 M E...
- Page 2 Specifications and information are subject to change without notice. For the latest updates, please visit the SMAR website above. BRAZIL CHINA FRANCE NETHERLANDS Smar Equipamentos Ind. Ltda. Smar China Corp. Smar France S. A. R. L. Smar Nederland Rua Dr.
- Page 3 DF17 ( 2 groups of 4 240Vac digital inputs ) Description This Module senses the AC input Voltage and converts it to a True (ON) or False (OFF) logic signal. It has 2 optically isolated groups of 4 inputs to detect 120/240 Vac (DF16/DF17 respectively). DF16 Vcc A...
- Page 4 Switching Information Minimum Voltage ( 0 to 1) 100 Vac (DF16), 45 to 60 Hz 200 Vac (DF17), 45 to 60 Hz Maximum Voltage (1 to 0) 30 Vac (DF16), 45 to 60 Hz 50 Vac (DF17), 45 to 60 Hz...
