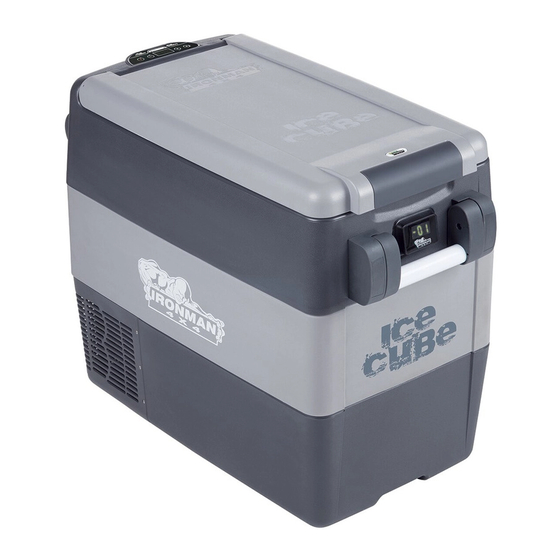

This user guide includes information on the following IceCube Fridge/ Freezer models:
IFRIDGE30 (30L), IFRIDGE40 (40L) and IFRIDGE50 (50L)
www.ironman4x4.com
USER GUIDE
Instruction Manual
30L
CAPACITY
40L
CAPACITY
50L
CAPACITY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFRIDGE30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ironman4x4 IFRIDGE30

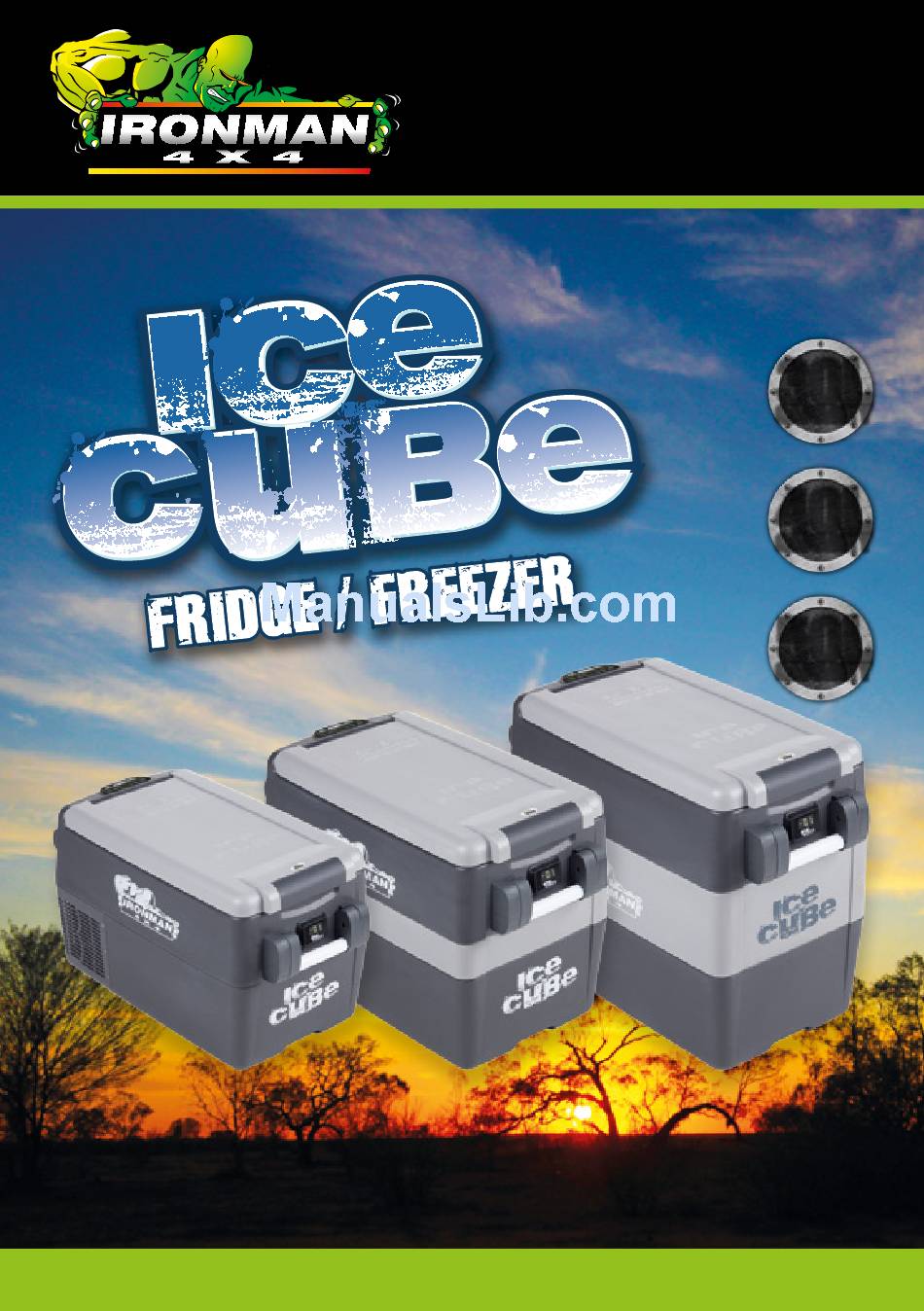

  • Page 1 USER GUIDE Instruction Manual CAPACITY CAPACITY CAPACITY This user guide includes information on the following IceCube Fridge/ Freezer models: IFRIDGE30 (30L), IFRIDGE40 (40L) and IFRIDGE50 (50L) www.ironman4x4.com...
  • Page 2 Dear Customer, Thank you for purchasing an Ironman 4x4 IceCube Fridge/Freezer. Our fridge/freezer is an ideal companion for keeping your beverages, refreshments and food refrigerated while on outback trips, picnics, camping, fishing or shopping trips. Features: • Danfoss BD-35F Compressor - The world’s most reliable cooling system. •...
  • Page 3: Table Of Contents

    Connection ........................Page 5 Operation ........................Page 6 Cleaning and Maintenance .................... Page 7 Troubleshooting ......................Page 7 Technical Data IFRIDGE30 - 30L ......................Page 8 IFRIDGE40 - 40L ......................Page 9 IFRIDGE50 - 50L ......................Page 10 Warranty ........................Page 11...
  • Page 4: Product Safety

    Product Safety Do NOT touch exposed cables with your bare hands, this especially applies when operating the appliance from an AC source. It is dangerous to touch the plug with wet hands. When using the refrigerator in a vehicle or boat, make sure that power supply circuit is properly fused.
  • Page 5: Connection

    Connection Power: The 12/ 24V and mains power can be present at the same time, the device will always set itself to the mains power supply as a priority. Unit must always be connected to an adequate power supply and DC connection must always be fused.
  • Page 6: Operation

    Operation MAX Indicator Light LED Display ECO Indicator Light Power Switch Running Mode Adjustment Temperature Adjustment Set Temperature Mode: When the fridge is on, press and hold the SET button and momentarily press the UP button. The screen will display an ‘F’ for fahrenheit, or ‘C’ for celcius. Press the UP button to alternate between either mode.
  • Page 7: Cleaning And Maintenance

    Cleaning and Maintenance Clean the unit inside and out with a damp cloth. For more stubborn dirt, sodium bicarbonate dissolved in lukewarm water may be used. Never use abrasive products, detergents or soap. After washing rinse with clean water and dry carefully.
  • Page 8: Technical Data

    Technical Data Item No. IFRIDGE30 Approx gross capacity (L) Supply Voltage (V) 12/ 24 // 100-240 Dimensions (mm) H - 380mm W - 350mm L - 585mm Temp. Range / regulation +10 to -18˚C Approx. Weight (kg) 16kg Material CFC free...
  • Page 9: Ifridge40 - 40L

    Technical Data Item No. IFRIDGE40 Approx gross capacity (L) Supply Voltage (V) 12/ 24 // 100-240 Dimensions (mm) H - 490mm W - 350mm L - 585mm Temp. Range / regulation +10 to -18˚C Approx. Weight (kg) 17kg Material CFC free CFC-Free Insulation PU foam...
  • Page 10: Ifridge50 - 50L

    Technical Data Item No. IFRIDGE50 Approx gross capacity (L) Supply Voltage (V) 12/ 24 // 100-240 Dimensions (mm) H - 530mm W - 350mm L - 585mm Temp. Range / regulation +10 to -18˚C Approx. Weight (kg) 18.5kg Material CFC free CFC-Free Insulation PU foam...
  • Page 11: Warranty

    Warranty This fridge/ freezer comes with a 5 year compressor warranty and a 3 year components warranty from the day of purchase under the following conditions. Any warranty claims exclude parts such as fuses, connectors, plugs, etc. • All defects are variably attributable to material or production errors. •...
  • Page 12 CAPACITY CAPACITY CAPACITY www.ironman4x4.com...
