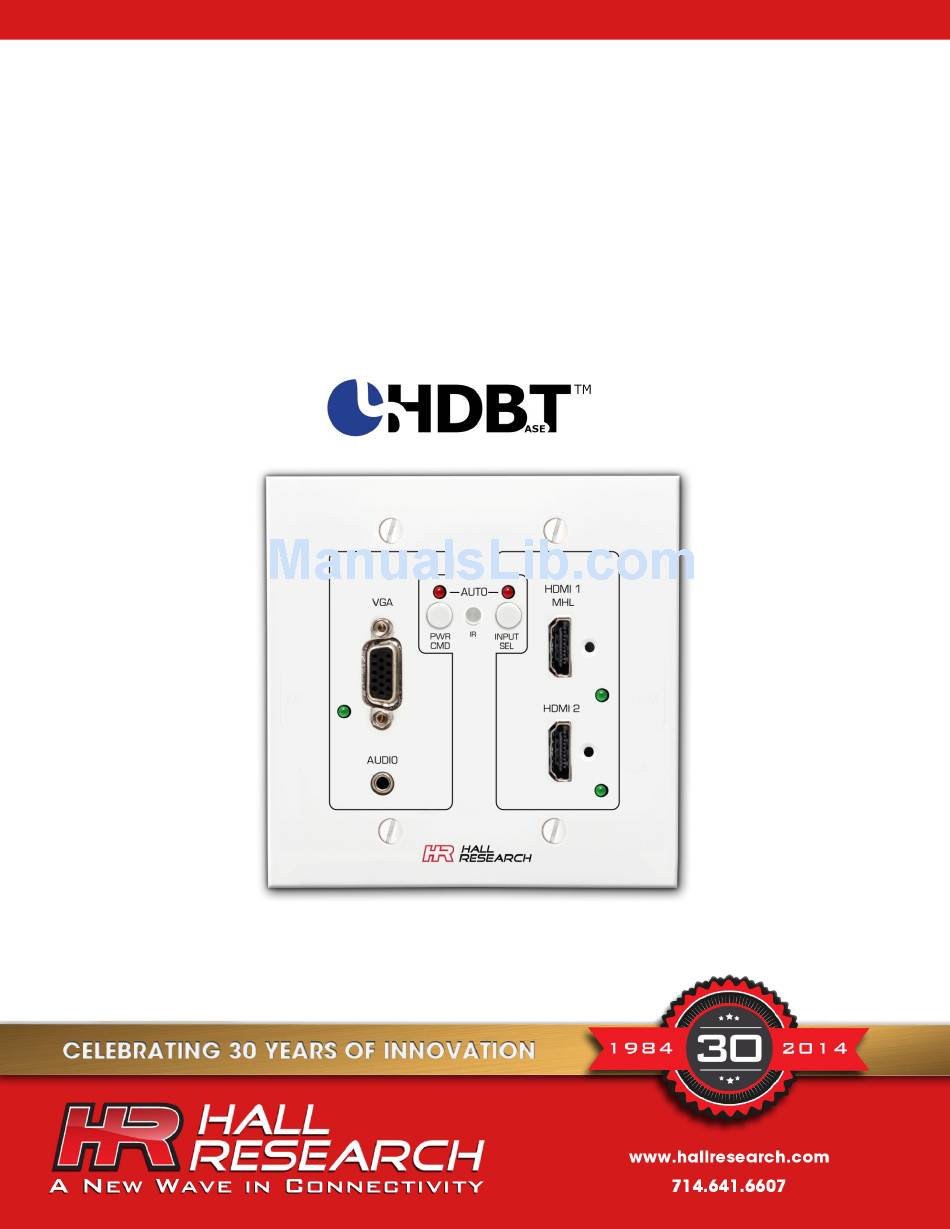

- Page 1 Quick Start Guide VGA / HDMI / MHL Auto-Switching Wall Plate With Output UHBX-SW3-WP UMA1229 Rev n/c...
- Page 2 The Model UHBX-SW3-WP is a compact 2-gang wall-plate that offers 3 video inputs: • Input 1 – HDMI or MHL (supports charging feature when an MHL source is detected) • Input 2 – HDMI • Input 3 – VGA or YPbPr with separate audio...
- Page 3 The Wall plate can be directly plugged to displays or projectors that have HDBaseT™ inputs. This will also enable the wall plate to control power on/off of the display via RS-232 through the HDBaseT input (most displays with HDBaseT also support RS-232 control via HDBaseT). However a power inserter is needed to send power to the wall plate.
- Page 4 the provided cable. To add display power control, a free Windows® GUI software is available for configuring the control method and entering the control commands. Since there are thousands of display manufacturers and models, it is the user’s responsibly to determine what method is available and can be used to turn their Display on an off.
- Page 5 The UHBX-SW3-WP also scales the VGA input to 720p, 1080p, or even 4K(UHD), to eliminate compatibility issues with the myriad of VGA output resolutions that may not be supported on most TV’s HDMI inputs. Scaling the VGA to 1080p or other standard resolution assures that there will be a display regardless of the VGA signal source timing.
- Page 6 3 inputs handle VGA, Component, HDMI (or DVI), and even MHL • Supports phone charging feature if MHL source is detected • VGA input is scaled to 1080p or user specified output resolution • to ensure proper image Supports all HDMI resolutions including 4K (UHD) •...
- Page 7 HDMI 1 input & selection Auto Input Selection Indicator indicator When lit, the wall plate scans Supports MHL signal for active input HDMI 2 input & selection Power Command Trigger indicator button Hold for 3 seconds to enter or exit Auto Power Command mode VGA input &...
- Page 8 HDBaseT Output. The wall plate requires PoH (power over HDBaseT), so the receiver has to be a PSE (power sourcing equipment) type, or a power inserter is needed. Micro-USB port for connection to a PC. A free GUI is available that can be used to configure the wall plate.
- Page 9 The wall plate is ready to use out of the box and in many cases no special configuration is needed. However if the user desires to control the On/Off function of the display or tweak some of the parameters (such as prioritizing the input selection in Auto input mode), a onetime set up is needed.
- Page 10 Hall Research 714.641.6607 www.hallresearch.com...
- Page 11 & & Hall Research 714.641.6607 www.hallresearch.com...
- Page 12 Hall Research 714.641.6607 www.hallresearch.com...
