Summary of Contents for Microwave Radio Communications Ellipse 2000

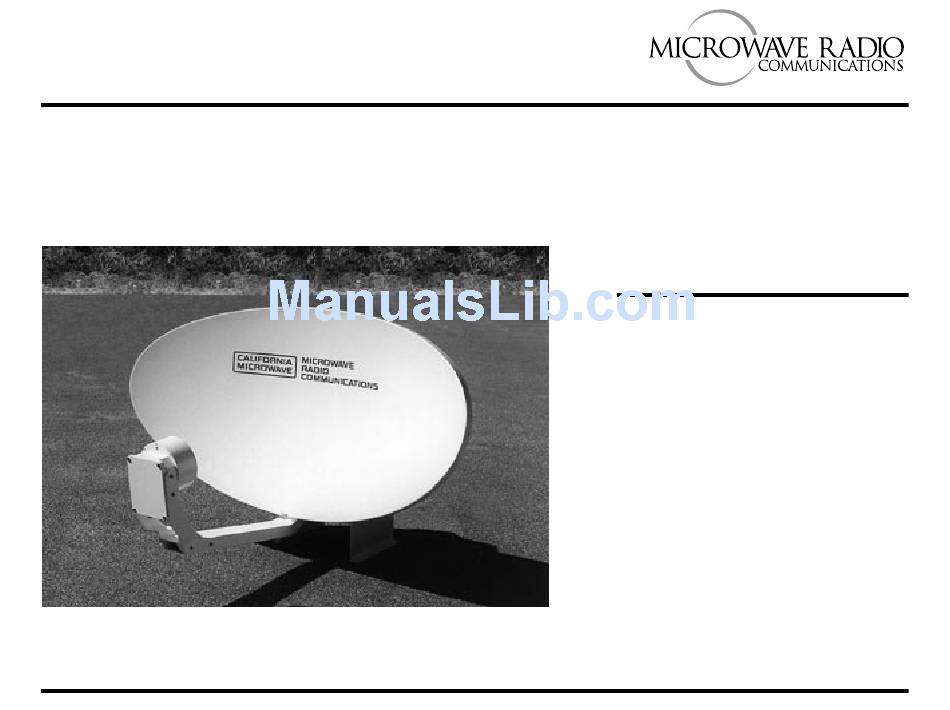

- Page 1 Ellipse 2000 2 GHz or 7 GHz Transmit Antenna Document: 400221-1 Revision A November 1997 Overview – page 3 Assembly – page 4 Dimensions – page 5 Wiring – page 6 Installation Guide...
- Page 2 The information and design contained within this manual was originated by and is the property of California Microwave Incorporated and Microwave Radio Communications. Microwave Radio Communications reserves all patent proprietary design, manufacturing, reproduction use, and sales rights thereto, and to any articles disclosed therein, except to the extent Raising or lowering the antenna rights are expressly granted to others.
- Page 3 -20 dB -20 dB The Ellipse 2000 Transmit Antenna is the latest addition to the MRC *Gain is for basic antenna, net of switching options mobile antenna line. It offers 23 dB gain at 2 GHz, and 34 dB gain at7 Mechanical Characteristics GHz, 3-4 dB over the standard MRC2A20/7A30 antenna.
- Page 4 Caution: To prevent damage to the elliptical dish, torque the mounting to no more than 25 inch pounds. Figure 1 ELLIPS 2000 with Antenna Assembly and Pan and Tilt UPPER MOUNTING BOLTS NOTCH LOWER MOUNTING BOLTS Rev. A 400221-1 Ellipse 2000 Installation Guide...
- Page 5 Ellipse 2000 Dimensions 53.00" (134.62 mm) 4.00" 30.86" (10.16 mm) (78.385 mm) 4.00" (10.16 mm) SECTION A 32.28" (81.99 mm) 8.19" 4.00" (10.16 mm) (20.80 mm) 4.50" (11.43 mm) 4.00" (10.16 mm) EL_DIM SECTION A Ellipse 2000 Installation Guide 400221-1 Rev. A...
- Page 6 Wiring Figure -3 shows the mounting instructions and wiring diagram for the PA200 and PA700 a power amplifiers. Figure 3 Wiring Diagram PA200 and PA700 Rev. A 400221-1 Ellipse 2000 Installation Guide...
