Hospital nursing intercom system
installation and operation manual
Abrunheira Business Center ed. 10/11 R. das Macarocas
tel +351219152040
(HC series)
Acutron Electroacustica Lda.
Abrunheira
2710 Sintra Portugal
http://acutron.net
Contents
1.
2.
3.
4.
-------- - -11
5.
6.
7.
8.
info@acutron.net
---------------1
-2
---- - -6
- --
--- --
-- 16
--- -17
----- - -18
-- --
--- -18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC-30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acutron HC-30

  • Page 1: Table Of Contents

    Operation instructions -- -- 16 Matters for attention -- --- -17 Troubleshooting ----- - -18 -- -- Service commitment -- --- -18 Acutron Electroacustica Lda. Abrunheira Business Center ed. 10/11 R. das Macarocas Abrunheira 2710 Sintra Portugal tel +351219152040 http://acutron.net info@acutron.net...

  • Page 2: System Profile

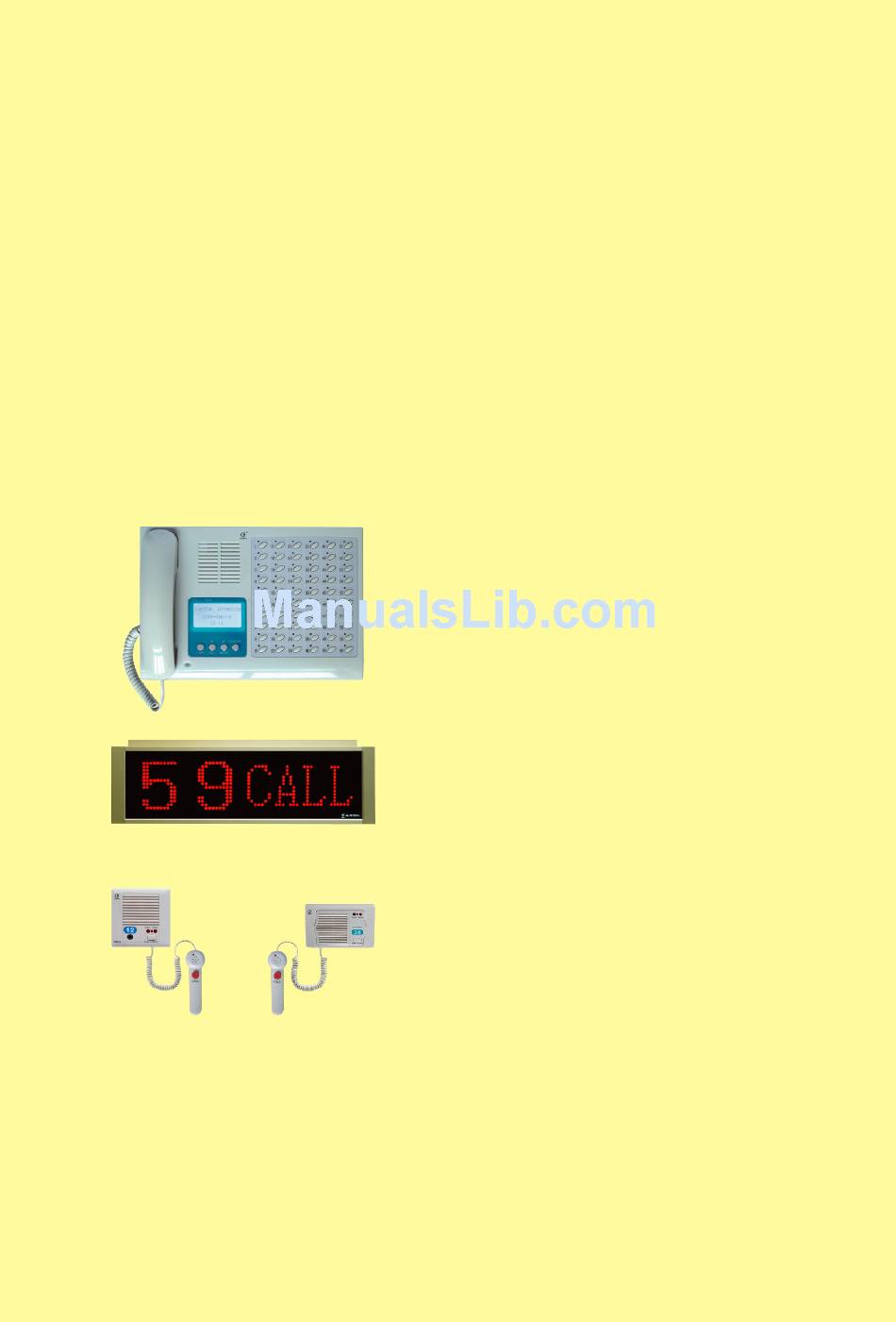

    1. System profile Before installation and operation, please carefully read this manual, so as to ensure proper installation and usage. Please keep this manual properly for future reference. The colours of products and locations of parts described in the manual may differ from those of the physical products. HC hospital nursing intercom system has benefits such as simple operation, convenient application and reliable running.

  • Page 3: Technical Specifications

    Four mainframes can be connected in parallel to realize multi-level management. The HC-30 mainframe can be connected to 30 extensions at most, while the HC-60 mainframe can be connected to 60 extensions at most.
  • Page 4 Connecting wires to the mainframe Alloy panel numerically controlled processing is employed, with smart and elegant appearance. Cooperate with HC-60 (or HC-30) mainframe, and the LED is able to display 1-60 (or 1-30) channels of extension calls, voice announcements and melody prompt.
  • Page 5 4. Waterproof switch (HB-1) It is generally installed in the toilet of the ward for alarm when there is an emergency of patients in the toilet. Two alarm modes are available, namely, pulling cord and pressing key. Water balls and fog in the toilet shall be prevented, so as to ensure the normal use of the switch.

  • Page 6: External Power Supply

    7. Door lamp Generally installed outside the ward to facilitate nurses in the corridor in observing. When the bed calls the nurse station, the door lamp of the ward will blink. When the ward bed releases the call or when the nurses talks with the patient, the door lamp outside the ward will go out.

  • Page 7: System Installation

    System installation 1. Extension coding (take one extension as an example) Preparation for extension online coding: Connect one pair of white and black wires on the extension or the waterproof switch respectively onto the two-core bus corresponding to 1 and COM terminals of the mainframe. For the specific wiring, please refer to the 'Wiring mode for extensions, waterproof switches and mainframes' of article 2 below (for details, please refer to P6).
  • Page 8 3. Connection between the transfusion alarm device, transfusion tube and extension Both transfusion blood bottle and bag apply Interface between transfusion alarm device and extension Transfusion alarm device Lower part of transfusion tube 4. Connection between list and mainframe Mainframe List of patients Directly insert the nine-core wire of the list into the port of that for the mainframe.
  • Page 9 6. Corridor display and mainframe connection Power source Corridor display Mainframe rear diagram There are two groups of wires for the corridor display, one group is for power cord (+12V and COM), while the other group is for data signal and power control cord (A, B and Ctr). Respectively connect +12V and COM on the display to the negative and positive poles of the DC12V500mA power supply.
  • Page 10 9. Mainframe alarm output, audio input and record output 1. Connect alarm flashlight and speaker onto the ALM and COM connecting terminals at the rear of the mainframe. In case of the extension calling the mainframe, the alarm indicator light blinks, and the speaker will flash and give an alarm.
  • Page 11 11. System installation illustration...

  • Page 12: System Setup

    System setup This device has done the following setup before delivery. 1. Automatic running of system date and time, without requiring additional setup. 2. All nursing levels of extensions are set to 1. 3. The mainframe's level is 01, four panes of volume for the day, two panes for volume at night, and four panes for hands free talk volume.
  • Page 13 Model:HC Model:HC Set Time Set Time FUNCTION FUNCTION MNTR MNTR Press the Function key to enter the minute setup Press the key to adjust to 25 2. Special nursing setup(take extensions 3, 12 and 30 as an example) Model:HC Model:HC Intensive Care I C Sub Station Setup...

  • Page 14: Volume Control

    5. Daytime volume setup (system default: 08:00--20:00 for the day) Model:HC Model:HC Model:HC Daytime Call VOL Daytime Call VOL Daytime Call VOL FUNCTION FUNCTION FUNCTION MNTR MNTR MNTR Press the to enter setup Press key to select the volume After the previous step, press the Function key to enter the volume setup for the day.
  • Page 15 Model:HC Model:HC Auto On Setup Auto On Setup FUNCTION FUNCTION MNTR MNTR Press the Function key to Press the key to adjust to 30 enter the setting for minutes When the power supply for the mainframe is normal, automatic startup at specified time every day whether it is in startup or shutdown status, and an alarm with a duration of 60 seconds will be given to all extensions.
  • Page 16 The routing switches of 1-12 on the mainframe respectively represent key 1, key 2, key 3, key 4, key 5, key 6, key 7, key 8, key 9, key 0, deletion key and ok key. Enter the setup mode according to the above-mentioned method. First select the extension number to be set on the mainframe in order (namely, first select the extension routing switches of channels 1 and 3), then select the room number to be set (namely, then select the extension routing switches of channels 2, 10 and 4), at last, select the bed number to be set (namely, select the extension routing switches of channels 10 and 3).

  • Page 17: Operation Instructions

    Operation instructions 1. Extension calling mainframe Press down the Call/Release key of the extension or the Call key of the handheld caller. At the time, the extension call indicator light turns red. At the same time, the corresponding routing indicator light of the mainframe turns red, the LCD displays the calling extension number and nursing level, and there is music prompt from the mainframe.

  • Page 18: Matters For Attention

    Matters for attention 1. Mainframe To be free from system faults, avoid using the product in places with major humidity and temperature fluctuation, direct blow by cool and warm wind, and excessive dust. The duration after each time of power on and off shall be more than one minute, especially in the talk status or extension call status.

  • Page 19: Troubleshooting

    7. Troubleshooting Common faults and troubleshooting Fault Possible cause Solution The mainframe is unable to call extensions, and Bus disconnection Well secure the bus extensions are unable to call the mainframe. 1. Replace the extension A certain extension cannot 1. Extension damaged 2.
