Climax CTC-808 Use Manual

CTC-808 Wireless Voice Satellite

Application Overview

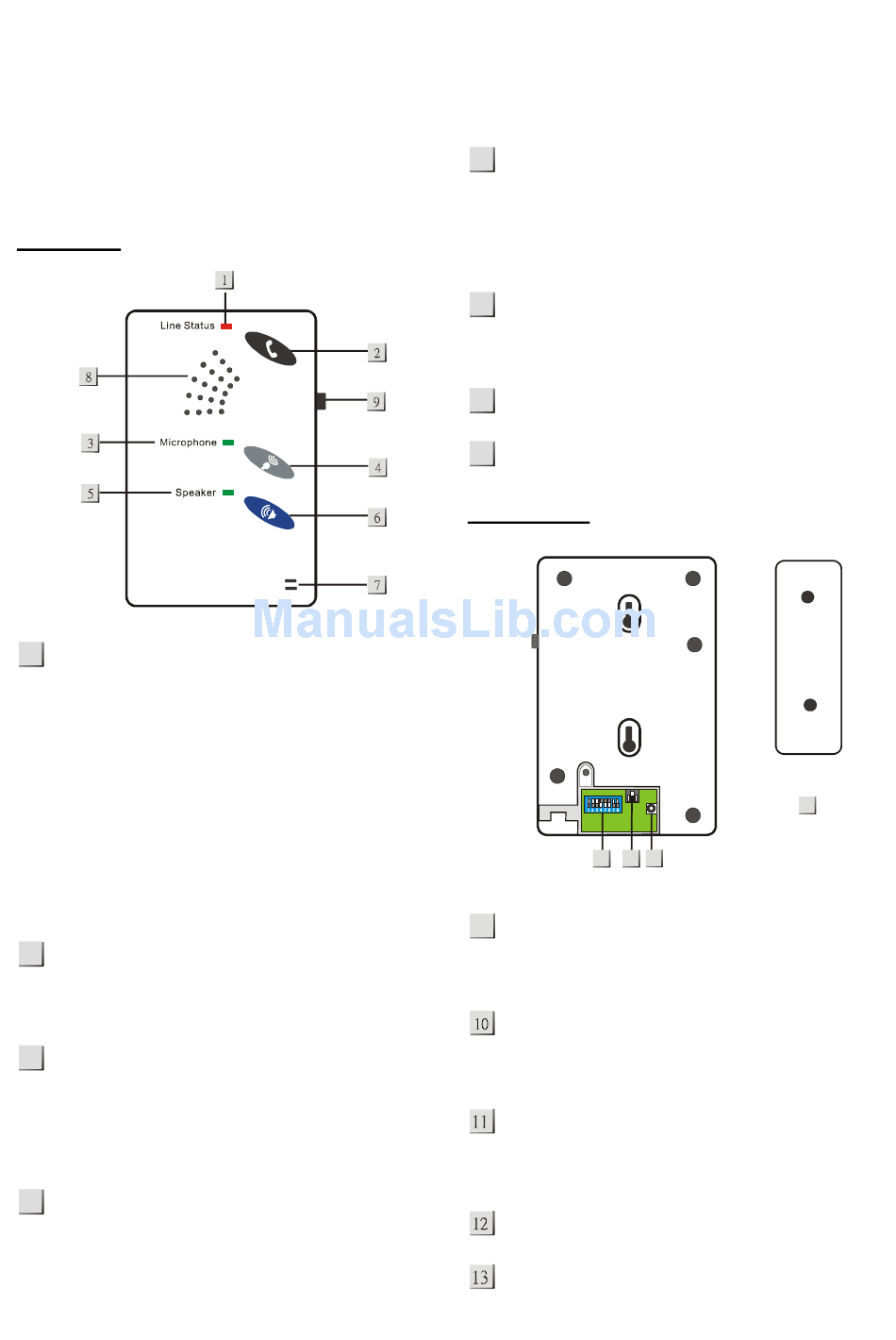

I. Identifying the parts

TOP VIEW
ANSWER LED (DUAL COLOUR GREEN +
1
RED LED)
— Power Indicator; ANSWER LED light ON
in GREEN when Power is ON and system
is in Stand-By Mode.
— ANSWER LED flashes in GREEN and
RED alternately when CTC-808 detects a
line fault
connected)
— ANSWER LED light ON in RED when
CTC-808 is in service during a phone
conversation.
2 ANSWER BUTTON
— Press once to answer the incoming call.
— Press again to terminate the call.
3 MICROPHONE LED
— Microphone Active Mode Indicator; the
LED light ON in GREEN when the
microphone is active.
— The LED dims when microphone is OFF.
4 MICROPHONE BUTTON
— Press once to activate the Microphone.
— Press again
Microphone.
(e.g. Phone-Line is
to deactivate
SPEAKER LED
5
— Speaker Active Mode Indicator; the LED
light ON in GREEN when the speaker is
active.
— The LED dims when speaker is OFF.
SPEAKER BUTTON
6
— Press once to activate the Speaker.
— Press again to deactivate the Speaker.
7 MICROPHONE
SPEAKER
8
REAR VIEW
not
SPEAKER VOLUME CONTROL
9
— Slide upward for louder volume; Slide
downward for lower volume. .
PHONE LINE JACK
— This jack is for the connection to the
Telephone unit
DC JACK
— For connecting the DC 12V 500mA power
adaptor
FUNCTION SETTING DIP SWITCH
the
WALL MOUNTING BRACKET
1
06-Oct-2011
10
12 11
13
