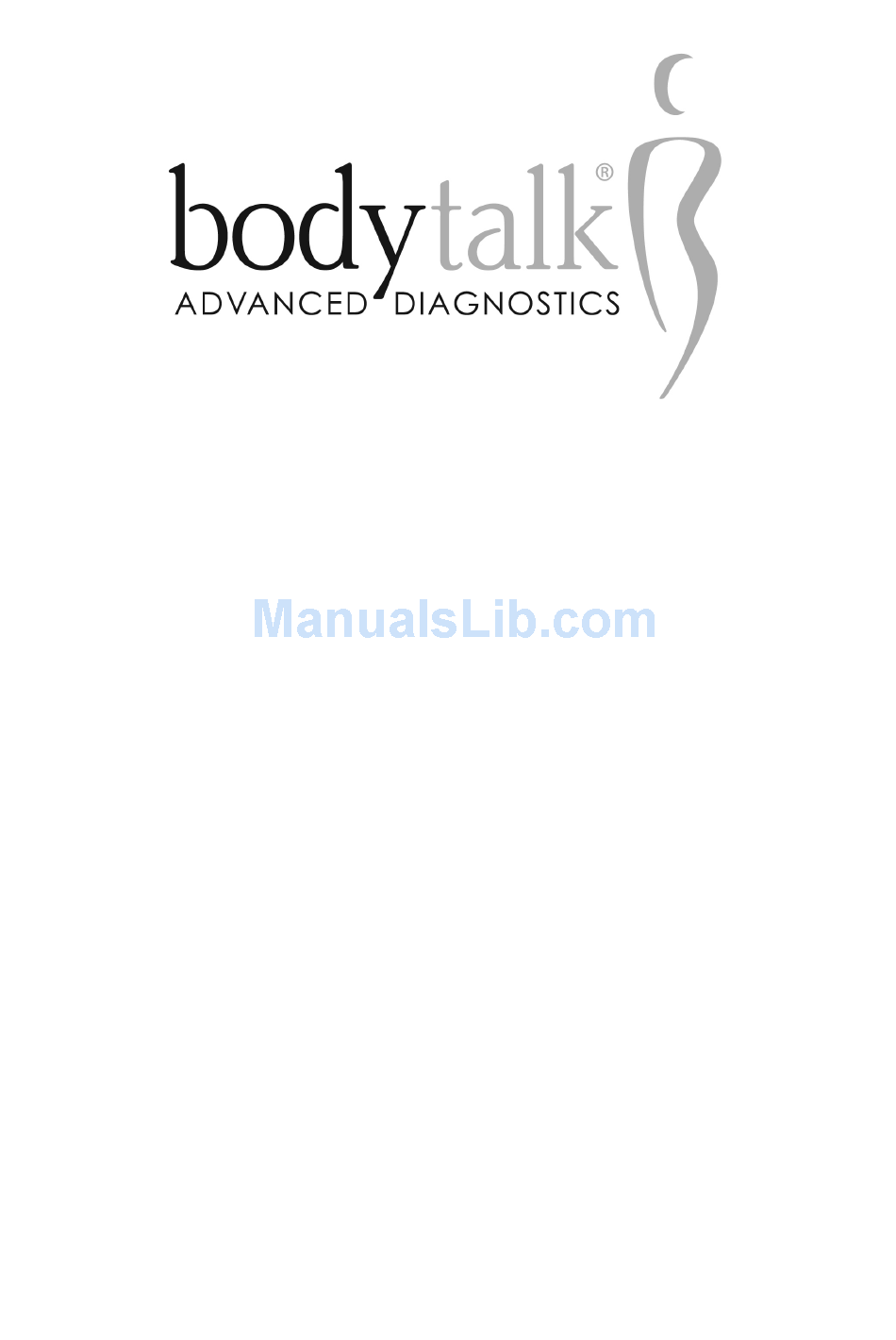

Foetal Heartbeat Monitor ADT-509
OPERATION GUIDE
INDEX
IMPORTANT INFORMATION .......................................................................................................2
CONTROLS AND DISPLAY INDICATORS ..................................................................................3
INTENDED USE..............................................................................................................................3
CONTRAINDICATION ...................................................................................................................3
PRODUCT DESCRIPTION .............................................................................................................3
SETUP AND OPERATING PROCEDURES ...................................................................................4
TROUBLE SHOOTING...................................................................................................................6
MAINTENANCE .............................................................................................................................6
CLEANING INSTRUCTIONS ........................................................................................................6
SPECIFICATION .............................................................................................................................7
EXPLANATION OF SYMBOLS .....................................................................................................9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADT-509 and is the answer not in the manual?

Questions and answers

Summary of Contents for BodyTalk ADT-509

  • Page 1: Table Of Contents

    Foetal Heartbeat Monitor ADT-509 OPERATION GUIDE INDEX IMPORTANT INFORMATION .......................2 CONTROLS AND DISPLAY INDICATORS ..................3 INTENDED USE..........................3 CONTRAINDICATION ........................3 PRODUCT DESCRIPTION ......................3 SETUP AND OPERATING PROCEDURES ...................4 TROUBLE SHOOTING........................6 MAINTENANCE ..........................6 CLEANING INSTRUCTIONS ......................6 SPECIFICATION ..........................7 EXPLANATION OF SYMBOLS .....................9...

  • Page 2: Important Information

    12-14 weeks pregnancy and count the foetal heart rate at home by herself. The bodytalk Foetal Heartbeat Monitor is not intended and should not be used as a substitute for regular prenatal care by medical practitioners. Any concerns about your pregnancy should be addressed by your medical practitioner.

  • Page 3: Controls And Display Indicators

    CONTROLS AND DISPLAY INDICATORS INTENDED USE The bodytalk Foetal Heartbeat Monitor is designed to listen to the foetal heartbeat in the comfort of your own home. CONTRAINDICATION Normally none PRODUCT DESCRIPTION This product is a hand-held, battery powered device. It outputs foetal heart sound, and the sound volume can be adjusted by the wheel.

  • Page 4: Setup And Operating Procedures

    SETUP AND OPERATING PROCEDURES 1. Battery loading : Open the battery cover and then put in one 9V battery. Please pay attention to polarity. Close the battery cover. 2. Connect the earphone to the socket of probe. (For your safety, please use the earphone provided) 3.
  • Page 5 4. Apply generous amount of ultrasound gel to flat oval probe area on the underside of the device and on the skin of the lower abdomen. It is important to have adequate gel without air bubbles between the probe and the lower abdomen.

  • Page 6: Trouble Shooting

    TROUBLE SHOOTING Because of incorrect operation or other problems, you may not get the estimated hearing result. If problems occur, please refer to the following solutions. Abnormalities Possible Cause Solutions No voice Forget to turn on the Turn on the volume probe control on the probe The volume is too low.

  • Page 7: Specification

    SPECIFICATION 1. Product name: bodytalk Foetal Heartbeat Monitor ADT-509 2. Product type: bodytalk Foetal Heartbeat Monitor (Ultrasound Doppler) ADT-509 3. Protection class: Type B, IPX0, No AP or APG, Continuous operation. Machine size: 187(long) x 61.4 (width) x 50(high) mm 5.
  • Page 8 POINTS FOR ATTENTION AND SAFETY Please do not abandon the battery to fire, to avoid fire and explosion hazard. Please do not use the foetal Doppler near flammable gas to avoid possible explosion or fire hazard. It is inappropriate to use foetal Doppler with high frequency surgical equipment.

  • Page 9: Explanation Of Symbols

    EXPLANATION OF SYMBOLS Symbol for “CAUTION” Symbol for “TYPE B APPLIED PARTS” Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or retailer for recycling advice”. Manufactured by Andon Health Co.Ltd.
