Summary of Contents for DM Engineering AUDIO-POD IFB

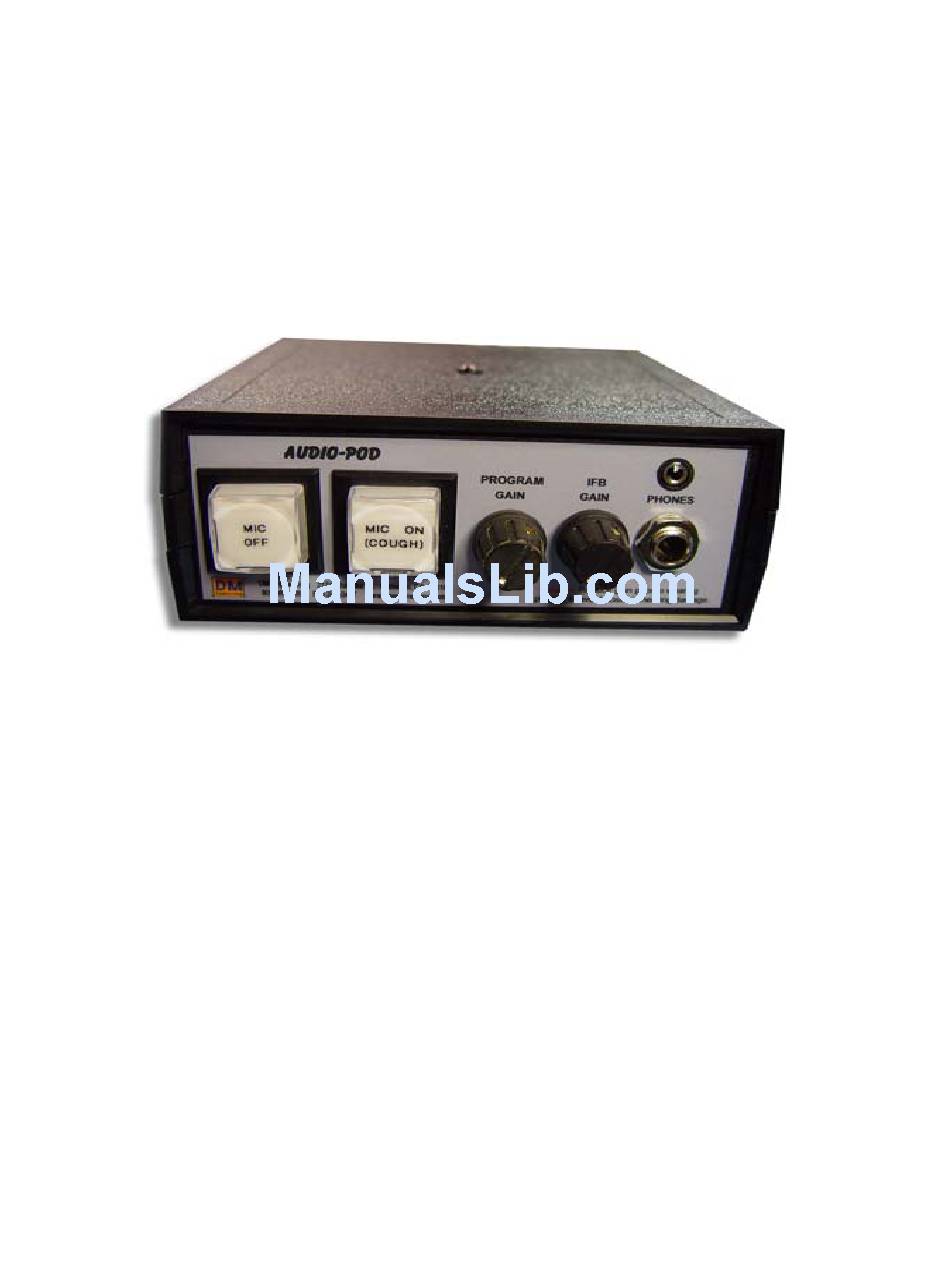

- Page 1 USER GUIDE AUDIO-POD IFB Microphone Control and Integrated Headphone Amplifier System with IFB Receive Version 1.0 DM Engineering 2174 Chandler St. Camarillo, CA 91345-4611 805-987-7881 800-249-0487 www.DMEngineering.com...
- Page 2 Overview: The “Audio-Pod System with IFB Receive” is a microprocessor controlled Microphone On-Off control system with an integrated headphone amplifier and IFB Receive capabilities which is ideal for remote and talk studio applications. The Mic ON/OFF buttons may be top or front mounted depending on the application. The latching Microphone On-Off circuitry incorporates a high quality, low noise pre-amplifier with available switched 48VDC phantom power.
- Page 3 • Power Op-Amp headphone output providing both the power and P-P voltage required to drive headsets ranging from 8 to 600 ohms • Rear panel output phase switch (0-180 ) to address bone conduction cancellation issues sometimes experienced by users •...
- Page 4 for lighting incandescent ON AIR or RECORDING lights. Outputs may be connected in parallel for multiple Audio-Pods driving one SSR if all modules are set for constant SSR operation. IMPORTANT: Maintain SSR output polarity considerations between the Audio-Pods or damage may result. If multiple Audio-Pod SSR outputs are used for driving a single LED indicator, a 220 ohm series resistor between the positive outputs and the LED is recommended.
- Page 5 ESD protection circuitry for protection from static build-up on the earphone plug that is being connected. The Audio-Pod IFB rear panel headset control adjustments are as follows: (refer to Fig. 1) PHASE: Depressed for 180° phase shift in the headphone output to correct for bone conduction issues that may arise, and left in the outermost position for 0°...
- Page 6 Warranty Information: The DM Engineering Audio-Pod IFB system is warranted for a period of one year from the date of purchase. This warranty covers materials and workmanship only. Any misapplication, physical or electrical damage from outside sources or by the customer is not covered.
