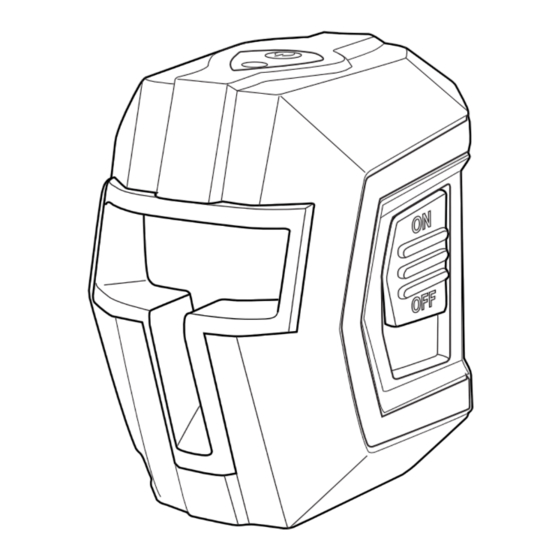

Ozito LCT-1800 Instruction Manual

Cross line laser level
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
CROSS LINE
LASER LEVEL
10m Working Range
INSTRUCTION MANUAL
SPECIFICATIONS
Battery:
3V DC (2 x AA Battery)
Laser Power:
Class 2, <1mW
Laser Width:
100 LUX, 3mm/5m
Approx Run Time:
15 Hours
Working Range:
10m
Accuracy:
±0.5mm/m
Levelling Time:
<5s
Levelling Range:
>4
0
ozito.com.au
WHAT'S IN THE BOX
Cross Line Laser Level
Tripod
2 x AA Batteries
LCT-1800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCT-1800 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito LCT-1800

Summary of Contents for Ozito LCT-1800

  • Page 1 SPECIFICATIONS Battery: 3V DC (2 x AA Battery) Laser Power: Class 2, <1mW Laser Width: 100 LUX, 3mm/5m Approx Run Time: 15 Hours Working Range: Accuracy: ±0.5mm/m Levelling Time: <5s Levelling Range: >4 ozito.com.au Tripod 2 x AA Batteries LCT-1800...

  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION CROSS LINE LASER LEVEL WITH TRIPOD 1. INSTALLING BATTERIES 1 On/Off & 3 Laser Window Operating Mode Button 4 Automatic Levelling Switch The Cross Line Laser Level unit requires 2 x AA batteries to operate. 2 Auto Levelling Indicator Light 5 Battery Compartment WARNING!
  • Page 3 2. ATTACHING LASER TO TRIPOD 3. ADJUSTING THE TRIPOD The tripod allows you to set up the laser in a specific position and easily make adjustments to the height, angle and tilt of the unit. 6 To remove the laser unit from the tripod, lift the quick release 1 Open up the 3 legs of the...

  • Page 4: Operation

    OPERATION 4. OPERATING THE LASER Adjusting the Angle of the Laser Switching the Laser On and Off WARNING! ENSURE LASER WINDOW IS NOT AT EYE 1 Rotate the angle LEVEL WHEN OPERATING. adjusting handle anti- clockwise to allow the 1 Turn laser on or off by pressing handle to move.
  • Page 5 Note: The indicator light will glow position and then press red, indicating the auto- the operating mode levelling feature is in-active. button to achieve the desired mode. Note: Ensure the laser is level on tripod. LCT-1800...

  • Page 6: Description Of Symbols

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local Note: Ozito Industries will not be responsible for any damage or council authority for recycling advice. injuries caused by repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 7 Model No. LCT-1800 How To Order Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any further questions, please contact Ozito Customer Service on: Australia: 1800 069 486 New Zealand: 0508 069 486...

  • Page 8: Electrical Safety

    Additional safety instructions for laser lights TOOL AND BATTERY The laser light/laser radiation used in the Ozito Cross Line Laser LCT-1800 laser is Class 2 with maximum 1mW and 650nm wavelengths. These lasers do not normally present an optical hazard, although staring at the beam •...

  • Page 9: Warranty

    • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0815...
