TFT LCD Display
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT27A02 and is the answer not in the manual?

Questions and answers

Related Manuals for 3B Technology LT27A02

Summary of Contents for 3B Technology LT27A02

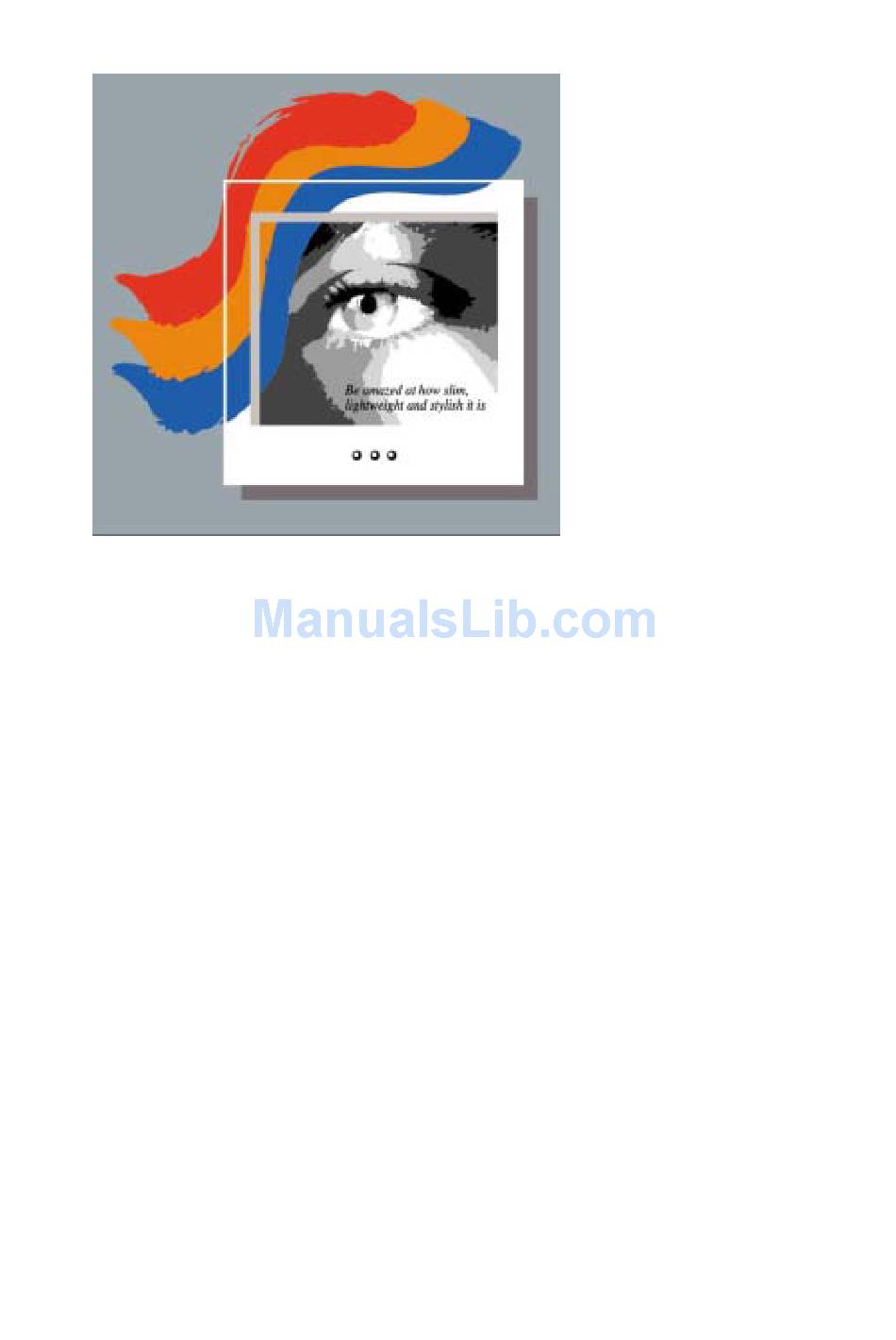

  • Page 1 TFT LCD Display USER'S MANUAL...
  • Page 2 Warnings WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN Warning: To reduce the risk of electric shock do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insinuated "dangerous voltage"...

  • Page 4: Table Of Contents

    Contents Warnings 1. Supplied Accessories 2. Installation 2.1. Wall Installation 2.2. Desktop Installation 2.3. Installation Procedure 2.4. Installation Reference 3. Operation 3.1 OSD (On Screen Display) buttons on the casing 3.2 Use of OSD (On Screen Display) menu 3.2.1 Basic Instruction of OSD Menu 3.2.2 OSD basic form 3.2.3 Control of OSD menu at PC Input mode 3.2.4 Control of OSD menu while in use of VIDEO or TV Input...

  • Page 5: Supplied Accessories

    Supplied Accessories Make sure the following accessories are provided with product. Installation Install Options * You can install the unit on a wall or place it on a table-like surface. * To eliminate any risk of injury from the unit falling, it should be mounted securely. 1.

  • Page 6: Operation

    3. Operation 3.1 OSD(On Screen Display) buttons on the casing You can basically control OSD menu with OSD buttons on front case, therefore you need to understand overall functions of OSD buttons prior to entering main contents. ** Front Buttons Power On/Off Volume buttons during OSD operation, adjust...

  • Page 7: Use Of Osd(On Screen Display) Menu

    3.2 Use of OSD(On Screen Display) menu 3.2.1 Basic Instruction of OSD Menu - Order of OSD Menu If you want to adjust the displaying, please follow the following procedure. 1. Press the [MENU] button, then OSD Menu will appear on screen. 2.
  • Page 8 - Select the Input Mode - Conversion of source inputs ; You can select one of source inputs using [MENU] button. Press [MENU] button, then the following menu will appear. 1. Press [UP/DOWN] and put the cursor on "SOURCE" then press [MENU] 2.

  • Page 9: Osd Basic Form

    3.2.2 OSD basic form Two kinds of OSD menu are serviced as OSD structure. One for TV input, and the other for other source inputs. (OSD for analog PC input) (OSD for other sauce inputs) At the beginning, the cursor is fixed at [PICTURE], and the present resolution of PC Monitor appears at the bottom.

  • Page 10: Control Of Osd Menu At Pc Input Mode

    3.2.3 Control of OSD menu at PC input mode Adjustment of PICTURE - Control of Brightness To adjust BRIGHTNESS, take the following procedure. 1. Press [MENU], then OSD MENU appears. Select "PICTURE", then press [MENU]. 2. Select "Brightness" using [UP]/[DOWN] then press [MENU] 3.
  • Page 11 - Control of SHARPNESS Use to control the distinction of display 1. Press [MENU], then OSD MENU appears. Select "PICTURE", then press [MENU]. 2. Select "Sharpness" using [UP]/[DOWN] then press [MENU] 3. Select the distinction you want by using [RIGHT]/[LEFT] button. lower number gets stronger distinction, higher number gets smoother distinction.
  • Page 12 3. Select "Red" using [UP]/[DOWN] then press [MENU] 4. Adjust the level with using [RIGHT]/[LEFT] 5. Press [EXIT] to move to previous MENU * To adjust the density of Green, Blue, take the same procedure as above. Control of the position of entire screen - Control of H-POSITION Use to move the position of entire screen.
  • Page 13 3. Adjust the level by using [RIGHT]/[LEFT] 4. Press [EXIT] to move to previous MENU - SCALING Function Controlling magnification of the screen. 1. Press [MENU], then OSD MENU appears. Select "SCREEN CONTROL", then press [MENU]. 2. Select "Scaling" using [UP]/[DOWN] then press [MENU] 3.
  • Page 14 - ZOOM Function Use to zoom in/out on the screen. 1. Press [MENU], then OSD MENU appears. Select "SCREEN CONTROL", then press [MENU]. 2. Select "Zoom" using [UP]/[DOWN] then press [MENU] 3. Select the level with using [RIGHT]/[LEFT] - FREEZE FRAME Function Use to pause the favorite shot of pictures.
  • Page 15 Control of MISCELLANY - SYSTEM RESET In case that user makes improper setting, it sets back to factory default 1. Press [MENU], then OSD MENU appears. 2. Select "MISCELLANY" using [UP]/[DOWN], then press [MENU]. 3. Select "System Reset" using [UP]/[DOWN], then press [MENU] 4.
  • Page 16 4. Select the time as you like by using [RIGHT]/[LEFT], You can set up the time 5 to 60 sec. in a multiple of 5 sec. - OSD TRANSPARENCY Function 1. Press [MENU], then OSD MENU appears. 2. Select "MISCELLANY" using [UP]/[DOWN], then press [MENU].
  • Page 17 - Using PIP(Picture in Picture) This function will work on Video / S-Video / Television / Scart signals as inputs to sub-screen on main screen PC mode. When watching PIP, the main screen and the sub-screen menu have differences in the quality of screen color. * PiP Adjustment 1.
  • Page 18 -Teletext Language 1. Press [MENU], then OSD MENU appears. 2. Select "MISCELLANY" using [UP]/[DOWN], the press [MENU]. 3. Select "Redetect language" using[UP/DOWN], the press [menu]. 4. Select User's area using [Left]/[Right] ** Area East Euro -> West Euro -> East Cyrillic -> West Cyrillic ->...
  • Page 19 AUDIO SETUP - Control of BALANCE Use to adjust right or left balance of VOLUME. 1. Press [MENU], then OSD MENU appears. 2. Select "AUDIO SETUP" using [UP/DOWN], then press [MENU]. 3. Select "Balance" using [UP/DOWN] then press [MENU] 4. Adjust the balance of VOLUME using [RIGHT/LEFT] L : left speaker R : right speaker...
  • Page 20 4. Adjust the On/Off of Surround using [RIGHT/LEFT] - Control of EQUALIZER Use to adjust certain frequency to make it fit user's desire 1. Press [MENU], then OSD MENU appears. 2. Select "AUDIO SETUP" using [UP/DOWN], then press [MENU]. 3. Select "Equalizer" using [UP/DOWN] then press [MENU] 4.
  • Page 21 - AUTO CONFIG Adjust position of display and picture quality automatically. 1. Press [MENU], then OSD MENU appears. 2. Select "AUTO CONFIG" using [UP/DOWN], then press [MENU]. 3. Select [RIGHT/LEFT], then Start "AUTO CONFIG". before pressing [RIGHT/LEFT], to escape to previous menu, select [EXIT]...

  • Page 22: Control Of Osd Menu While In Use Of Video Or Tv Input

    3.2.4 Control of OSD menu while in use of VIDEO or TV Input AUDIO SETUP - Auto Volume Use to put the different level of volumes as per broadcast stations in a similar level 1. Press [MENU], then OSD MENU appears. 2.
  • Page 23 4. Adjust according to channel programs using [RIGHT/LEFT] At Auto selection, sound system automatically adjusted - Control of SOUND SYSTEM Use to fit each country's stereo system. 1. Press [MENU], then OSD MENU appears. 2. Select "AUDIO SETUP" using [UP/DOWN], then press [MENU].
  • Page 24 Control of TV SETUP - Adjusting AUTO SEARCH Automatically search and store currently broadcasting channels in memory. 1. Press [MENU], then OSD MENU appears. 2. Select "TV SETUP" using [UP/DOWN], then press [MENU]. 3. Select "Auto Search" using [UP/DOWN] then press [MENU] 4.
  • Page 25 - PROGRAM EDIT After completing Auto Searching, use to delete the undesired of stored channels or input your favorite channels manually. 1. Press [MENU], then OSD MENU appears. 2. Select "TV SETUP" using [UP/DOWN], then press [MENU]. 3. Select "Program Edit", using [UP/DOWN] then press [MENU] 4.
  • Page 26 - FINE TUNE Use to make minute adjustment when unsecured, poor colored display or lined picture appears. 1. Press [MENU], then OSD MENU appears. 2. Select "TV SETUP" using [UP/DOWN], then press [MENU]. 3. Select "Fine Tune", using [UP/DOWN] then press [MENU] 4.

  • Page 27: Using Teletext With Remote Control

    3.2.5 Using TELETEXT with a remote control - TELETEXT When the present TV program is broadcasted with text information, it shows TV mode and Text mode in a toggle form by Text button, recognizing its signal. * The remote control has not been fixed yet. This is subject to change without notice. DIGIT 0~9 buttons - In TEXT Mode, it is possible to move to the selected page directly...
  • Page 28 R/G/Y/C COLOR buttons - In TEXT Mode, there are four different colors at the bottom of the screen. One of them can be chosen with these buttons. CANCEL button - In TEXT Mode, it is used to cancel the searching of pages or other working functions.
  • Page 29 4. Product Spec. Specification MODEL LT27A02 Panel:TFT-LCD Panel Type LVDS Size 27 inch Panel Pitch 0.1555(H) x 0.4665(V) Maximum Color 16.7M(8bit) Brightness 550cd Contrast Ratio 600:1 Viewing Angle 85" Resolution WXGA(1280*720) @75Hz Scanning Frequency: 30~80.0KHz 55~75Hz Horizontal Vertical 99Programs(EU). Program Channels Color System "PAL, SECAM, Multi(PAL/SECAM), Tri-mode (NTSC/PAL)"-option...

  • Page 30: Troubleshooting

    5. Troubleshooting Troubleshooting In case a problem occurs with your LCD, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. CHECK ITEM TROUBLESHOOTING Is the power plug pulled out? Insert the power plug, Turn the main power The screen does not button on and then press the power button of the remote control.
  • Page 31 FCC Compliance Statements Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
