Summary of Contents for Audiodesksysteme Glass Vinyl Cleaner PRO

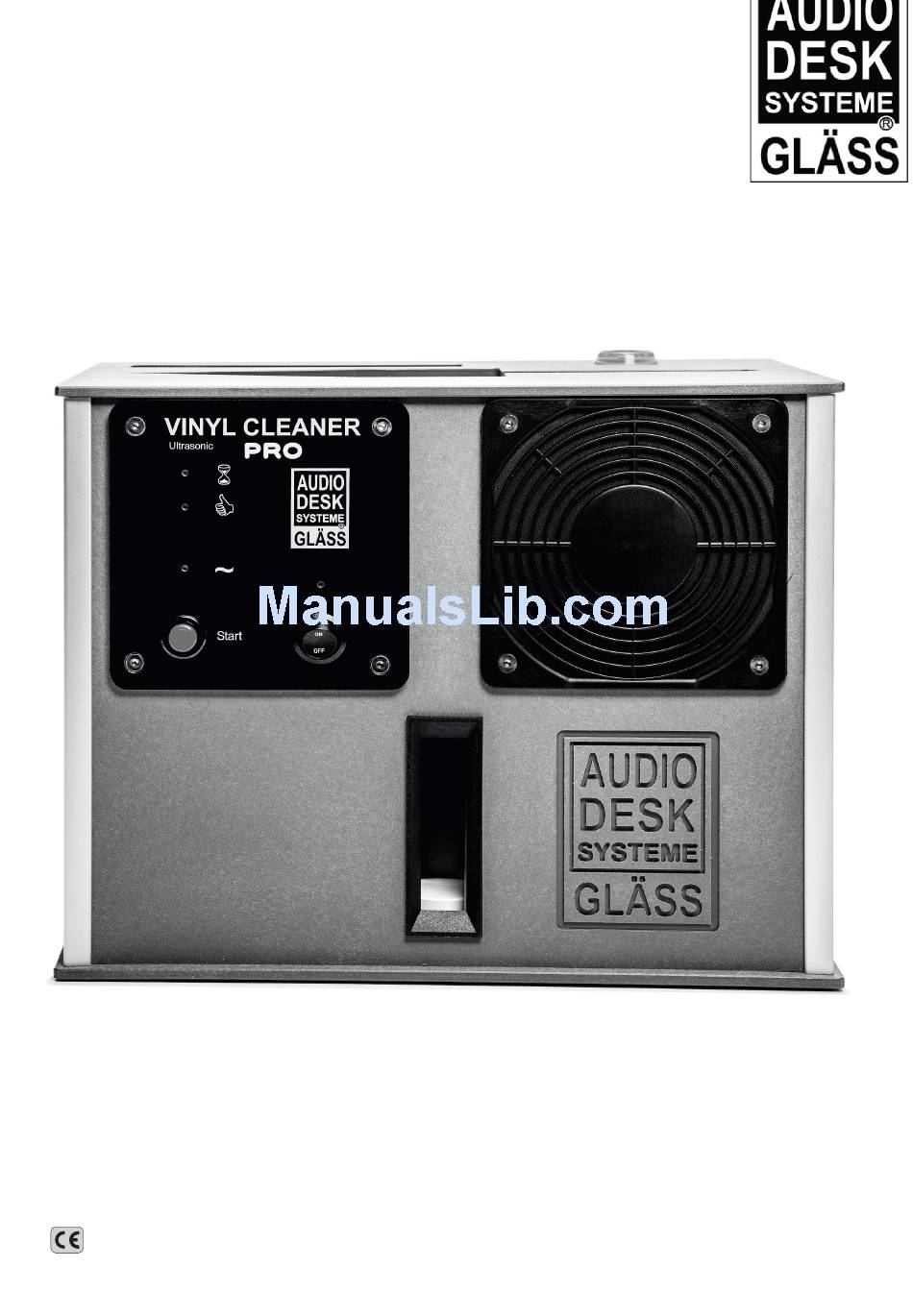

  • Page 1 Operating Instructions VINYL CLEANER PRO V 1.0/2016...

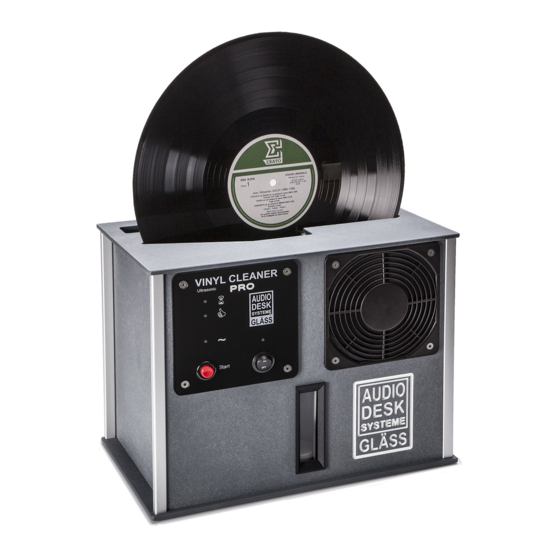

  • Page 2 However, only professional cleaning removes fingerprints or dirt particles. With VINYL CLEANER PRO you purchased a comfortable record-washing mashine for your valuable LPs. The gentle and fully automated wet-cleaning is done by counter-rotating microfiber cleaning barrels and ultrasound followed by a drying process.

  • Page 3: Table Of Contents

    Table of contents How to use these instructions .....................4 Intended use ..........................4 Technical data..........................4 Safety instructions ........................5 Product safety ........................5 Disposal ..........................5 Product overview...........................6 Description of functions ......................7 Scope of delivery........................7 Operation............................8 Preparation ..........................8 Cleaning a record ........................8 6.2.1 Extremly dirty records ....................9 6.2.2 Repeat the drying process ....................9 Cleaning liquid ..........................10...

  • Page 4: How To Use These Instructions

    - If you give the device to a third party, make sure to pass on the operating instructions with it. 2 Intended use Vinyl Cleaner PRO is designed to clean 12-inch (Ø 300 mm) vinyl records. The device must only be used according to the information given in the operating instructions.

  • Page 5: Safety Instructions

    4 Safety instructions This section provides an overview of all the important safety precautions for the ideal protection of persons and safe and reliable operation of the device. 4.1 Product safety This device complies with all state-of-the-art and recognized safety standards. Nevertheless potential hazards still remain.

  • Page 6: Product Overview

    5 Product overview Front Back 1. Operating panel 6. Rinsing chamber with cleaning barrels 2. Ventilator for drying 7. Wet filter 3. Level indicator 8. Drain plug for cleaning liquid 4. Spirit level 9. Connection for power supply unit 5. Water wiper 10.

  • Page 7: Description Of Functions

    A filter prevents the dirt particles from flowing back into the circulating cleaning liquid. After the cleaning process, the record is dried by two high-performance ventilators.. 5.2 Scope of delivery Description Quantity Vinyl Cleaner PRO Power supply unit Microfiber cleaning barrels Wet filter Concentrated cleaning liquid...

  • Page 8: Operation

    All position details refer to the position numbers in the section `Product Overview´ 6.1 Preparation 1. Place VINYL CLEANER PRO on a level surface. - Check using the spirit level (5). - The air bubble must be roughly in the middle of the circular mark.

  • Page 9: Extremly Dirty Records

    6.2.1 Extremly dirty records If the records are extremely dirty, it may be necessary to extend the cleaning process. In order to extend the cleaning time, keep the start button (12) pressed until a signal can be heard. There are several signals if the button is pressed for longer. Each signal extends the cleaning time by one minute.

  • Page 10: Cleaning Liquid

    Cleaning liquid CAUTION ! Keep the concentrated cleaning liquid away from children. The cleaning liquid must remain in the device for more than 4 weeks. The cleaning liquid consists of distilled or demineralized water and concentrated cleaning liquid. The liquids are mixed together inside the water tank. - Distilled or demineralized water can be purchased in shops.

  • Page 11: Cleaning The Device

    Cleaning the device CAUTION ! Pull out the mains plug from the power socket before cleaning the device. The device must not be put in water. Cleaning the outside surfaces - The outside surfaces can be cleaned with a damp cloth. Use a mild household detergent or cockpit spray to remove more severe dirt.

  • Page 12: Cleaning The Wet Filter

    Cleaning the wet filter CAUTION ! If the wet filter is not pushed all the way down, cleaning liquid may leak out of the device while it is operating The cleaning liquid is constantly filtered during operation. Depending on the amount of dirt, the filter will need to be cleaned or replaced from time to time. Inspection interval: after approx.

  • Page 13: Changing The Driving Rings

    Changing the driving rings CAUTION ! Unplug the mains plug from the power socket before changing the driving rings. Always be careful when you reach inside the device to avoid abrasions or injuries The driving rings are subject to regular wear and tear. If the record is not rotating properly anymore or jerks, the driving rings must be replaced.

  • Page 14: Frequently Asked Questions

    7. The record is not completely dry or there are water droplets left on the surface. - This may be due to a number of factors beyond our control. For this reason Vinyl Cleaner PRO is also equipped with an additional drying cycle (see section 6).
