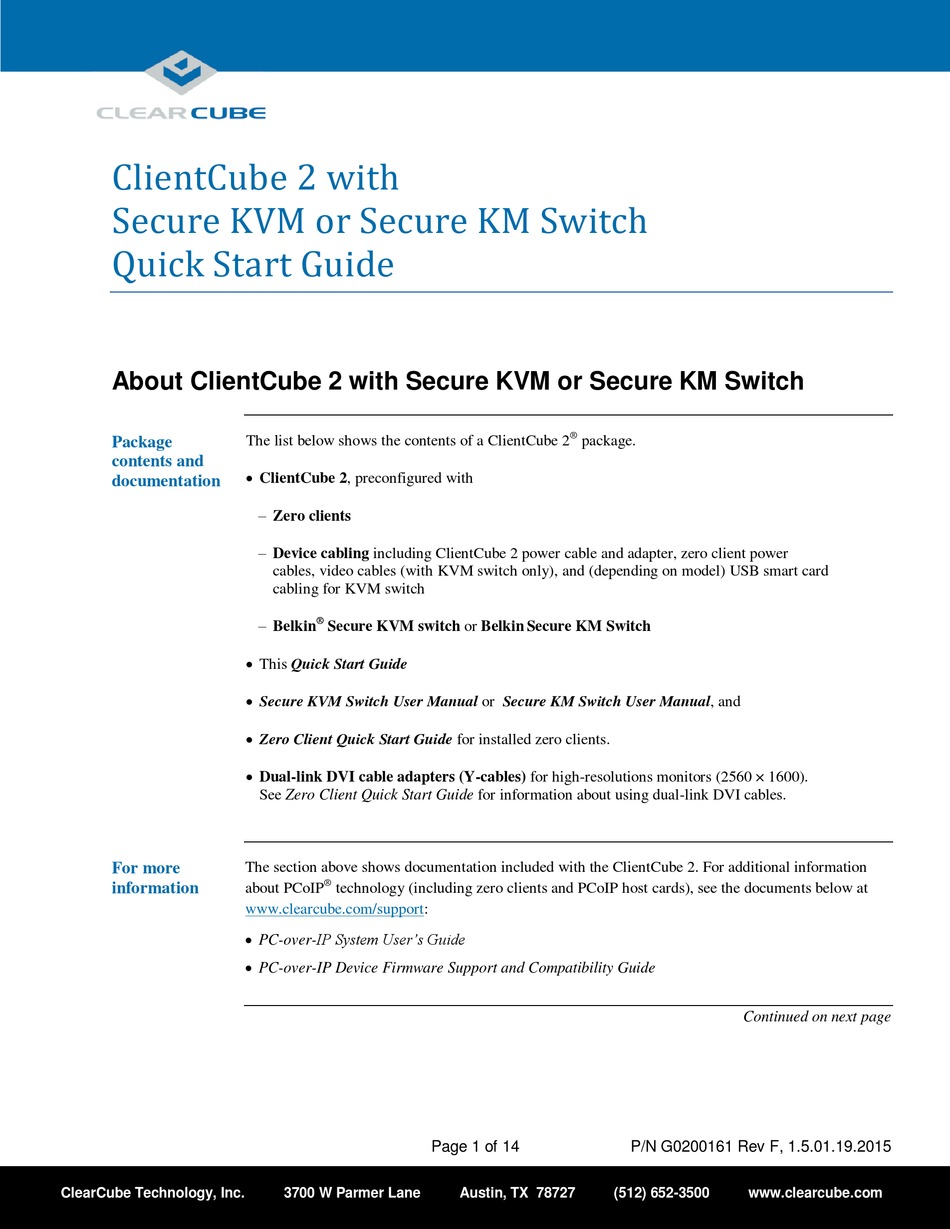

ClientCube 2 with
Secure KVM or Secure KM Switch
Quick Start Guide
About ClientCube 2 with Secure KVM or Secure KM Switch
Package
contents and
documentation
For more
information
ClearCube Technology, Inc.
The list below shows the contents of a ClientCube 2
ClientCube 2, preconfigured with
Zero clients
Device cabling including ClientCube 2 power cable and adapter, zero client power
cables, video cables (with KVM switch only), and (depending on model) USB smart card
cabling for KVM switch
Belkin
®
Secure KVM switch or Belkin Secure KM Switch
This Quick Start Guide
Secure KVM Switch User Manual or Secure KM Switch User Manual, and
Zero Client Quick Start Guide for installed zero clients.
Dual-link DVI cable adapters (Y-cables) for high-resolutions monitors (2560 × 1600).
See Zero Client Quick Start Guide for information about using dual-link DVI cables.
The section above shows documentation included with the ClientCube 2. For additional information
®
about PCoIP
technology (including zero clients and PCoIP host cards), see the documents below at
www.clearcube.com/support:
PC-over-IP System User's Guide
PC-over-IP Device Firmware Support and Compatibility Guide
3700 W Parmer Lane
®
package.
Page 1 of 14
Austin, TX 78727
Continued on next page
P/N G0200161 Rev F, 1.5.01.19.2015
(512) 652-3500
www.clearcube.com
Advertisement
Table of Contents
Related Manuals for ClearCube clientcube 2
Summary of Contents for ClearCube clientcube 2
-
Page 1: Quick Start Guide
ClientCube 2, preconfigured with documentation Zero clients Device cabling including ClientCube 2 power cable and adapter, zero client power cables, video cables (with KVM switch only), and (depending on model) USB smart card cabling for KVM switch ... -
Page 2: About Clientcube 2 With Secure Kvm Or Secure Km Switch
About ClientCube 2 with Secure KVM or Secure KM Switch, Continued The picture below shows the front of a ClientCube 2 (depending on the model, product features might ClientCube 2 front features differ slightly). Description Secure KVM switch or Secure KM switch... -
Page 3: Cable Configuration
Cable Configuration KVM cabling The picture below shows the default cabling configuration for ClientCube 2 with a KVM switch. For simplicity, cabling is shown between the KVM and only one zero client. The same cabling configuration is used for the remaining zero clients. - Page 4 KM cabling The picture below shows the default cabling configuration for ClientCube 2 with a KM switch. For simplicity, cabling is shown between the KM and only one zero client. The same cabling configuration is used for the remaining zero clients.
-
Page 5: Before You Begin
Always perform ESD prevention steps before using a card reader. Inspect If ClientCube 2 packaging or hardware (including holographic seals on the Secure KVM or KM) packaging shows any evidence of disruption, call ClearCube Support immediately at (800) 652-3400. -
Page 6: Setting Up Clientcube 2 With Kvm Switch
(continued) Optionally, install a CAC driver on any computing devices requiring CAC support. If the ClientCube 2 includes a KM switch and you are connecting to computers with multi-head displays, install the Belkin Advanced Secure KM Switch Mouse Filter driver software (see www.clearcube.com/support). - Page 7 Select a host to connect to. Additional Optionally, install ClientCube 2 accessories including color chips to distinguish each port button, steps and name labels to identify each network. See the included Secure DVI-I KVM User Manual for more information.
-
Page 8: Setting Up Clientcube 2 With Km Switch
(through a network switch or by direct connection). Connect one or more displays to the zero clients in the rear of the ClientCube 2 (see “Before step 5 setup”... -
Page 9: Navigating Osds And Vms
When connecting to VMs, zero clients must use TERA firmware 4.2.0. See PCoIP Device and Firmware Compatibility Guide and PC-over-IP (PCoIP) System User’s Guide for information about upgrading firmware. Page 9 of 14 P/N G0200161 Rev F, 1.5.01.19.2015 ClearCube Technology, Inc. 3700 W Parmer Lane Austin, TX 78727 (512) 652-3500 www.clearcube.com... -
Page 10: Connecting To Physical Devices
For more information about Host Card configuration, see the appropriate zero client Quick Start Guide (included) and PC-over-IP System User’s Guide (download from ClearCube Support). “Mouse control: Configure zero... -
Page 11: Configuring Zero Clients For Vm Connections
Press CTRL, CTRL, F11, b to toggle to relative mode and record the zero client’s IP address. Repeat this process for all zero clients in the ClientCube 2— remember that you must toggle the mouse to absolute mode to move to the next zero client. - Page 12 To restart the zero client, click Diagnostics > PCoIP Processor and then click Reset. A message is displayed. Click OK. This ends the PCoIP session with the zero client. Repeat this procedure for all zero clients in the ClientCube 2. Page 12 of 14 P/N G0200161 Rev F, 1.5.01.19.2015 ClearCube Technology, Inc.
-
Page 13: Connecting To Vms
(or computer) to the next. Press CTRL, CTRL, F11, c to switch the mouse to absolute mode. Move the mouse to the next monitor to switch to the next zero client in the ClientCube 2. Once you are on the next zero client’s OSD, press CTRL, CTRL, F11, b to toggle to relative mode so you can navigate the screen. -
Page 14: Additional Information And Support
Additional Information and Support “Package contents and documentation” and “For more information” on page 1 for a list of Documentation documentation about ClientCube 2 components and concepts. resources Contacting w ww.clearcube.com/support/U U U U U U Support Email s upport@clearcube.com...
