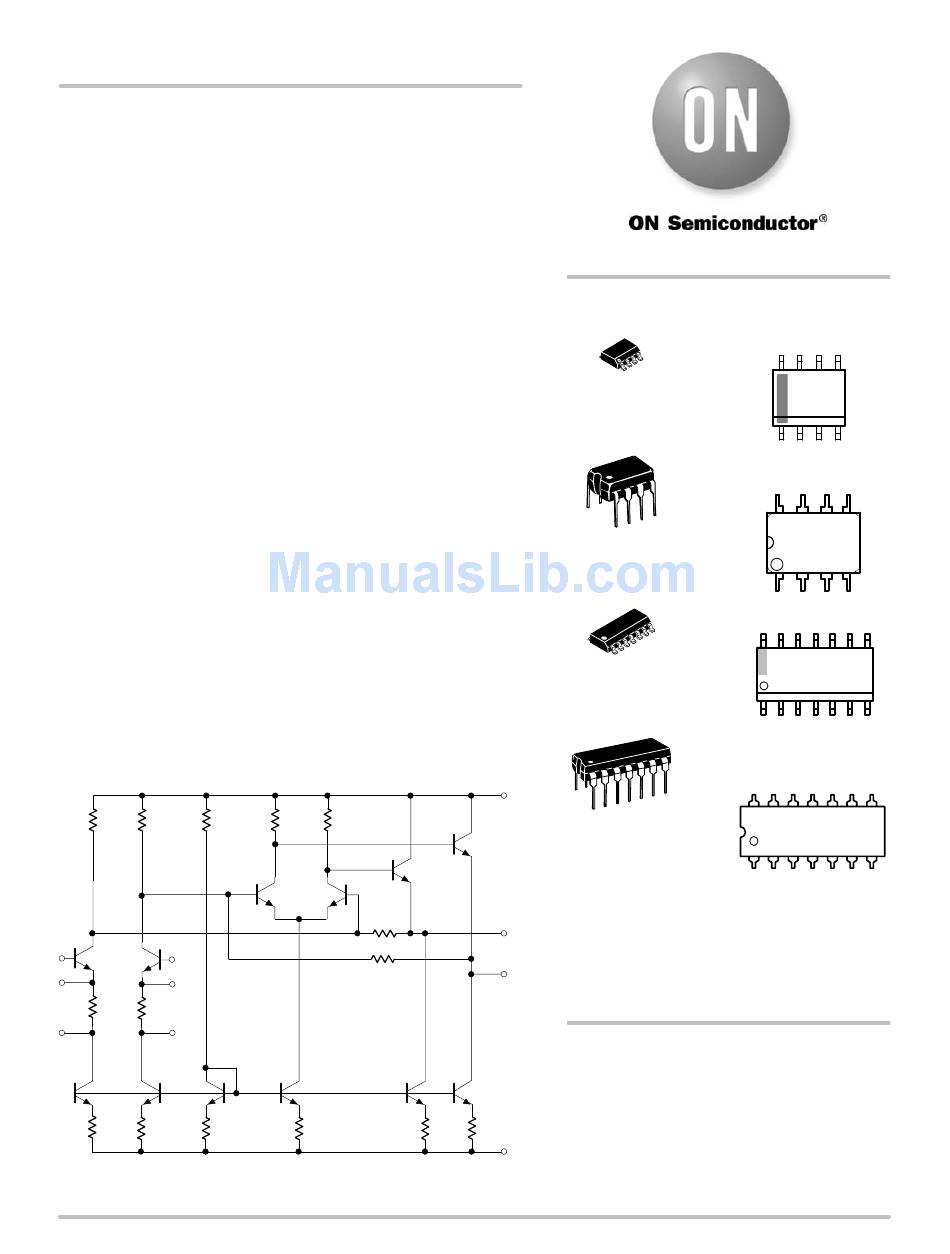

NE592
Video Amplifier
The NE592 is a monolithic, two-stage, differential output,
wideband video amplifier. It offers fixed gains of 100 and 400
without external components and adjustable gains from 400 to 0 with
one external resistor. The input stage has been designed so that with
the addition of a few external reactive elements between the gain
select terminals, the circuit can function as a high-pass, low-pass, or
band-pass filter. This feature makes the circuit ideal for use as a
video or pulse amplifier in communications, magnetic memories,
display, video recorder systems, and floppy disk head amplifiers.
Now available in an 8-pin version with fixed gain of 400 without
external components and adjustable gain from 400 to 0 with one
external resistor.
Features
•
120 MHz Unity Gain Bandwidth
•
Adjustable Gains from 0 to 400
•
Adjustable Pass Band
•
No Frequency Compensation Required
•
Wave Shaping with Minimal External Components
•
MIL-STD Processing Available
•
Pb−Free Packages are Available
Applications
•
Floppy Disk Head Amplifier
•
Video Amplifier
•
Pulse Amplifier in Communications
•
Magnetic Memory
•
Video Recorder Systems
R1
R2
INPUT 1
INPUT 2
Q1
Q2
G1A
G1B
R3
R5
G2A
G2B
Q7B
Q8
Q7A
R7A
R7B
Figure 1. Block Diagram
© Semiconductor Components Industries, LLC, 2006
October, 2006 − Rev. 4
R8
R10
R9
Q4
Q3
R11
R12
Q9
R15
R16
+V
1
Q6
Q5
OUTPUT 1
OUTPUT 2
See detailed ordering and shipping information in the package
dimensions section on page 8 of this data sheet.
Q10
Q11
R13
R14
-V
1
http://onsemi.com
http://onsemi.com
MARKING
DIAGRAMS
8
1
SOIC−8
D SUFFIX
CASE 751
1
8
PDIP−8
1
N SUFFIX
CASE 626
1
14
SOIC−14
1
NE592D14G
D SUFFIX
CASE 751A
1
14
PDIP−14
NE592N14
N SUFFIX
AWLYYWWG
CASE 646
1
A
= Assembly Location
L, WL
= Wafer Lot
Y, YY
= Year
W, WW = Work Week
G or G
= Pb−Free Package
ORDERING INFORMATION
Publication Order Number:
NE592
ALYW
G
NE592N8
AWL
YYWWG
AWLYWW
NE592/D
