Summary of Contents for ATMTECH TPUH406T-EU

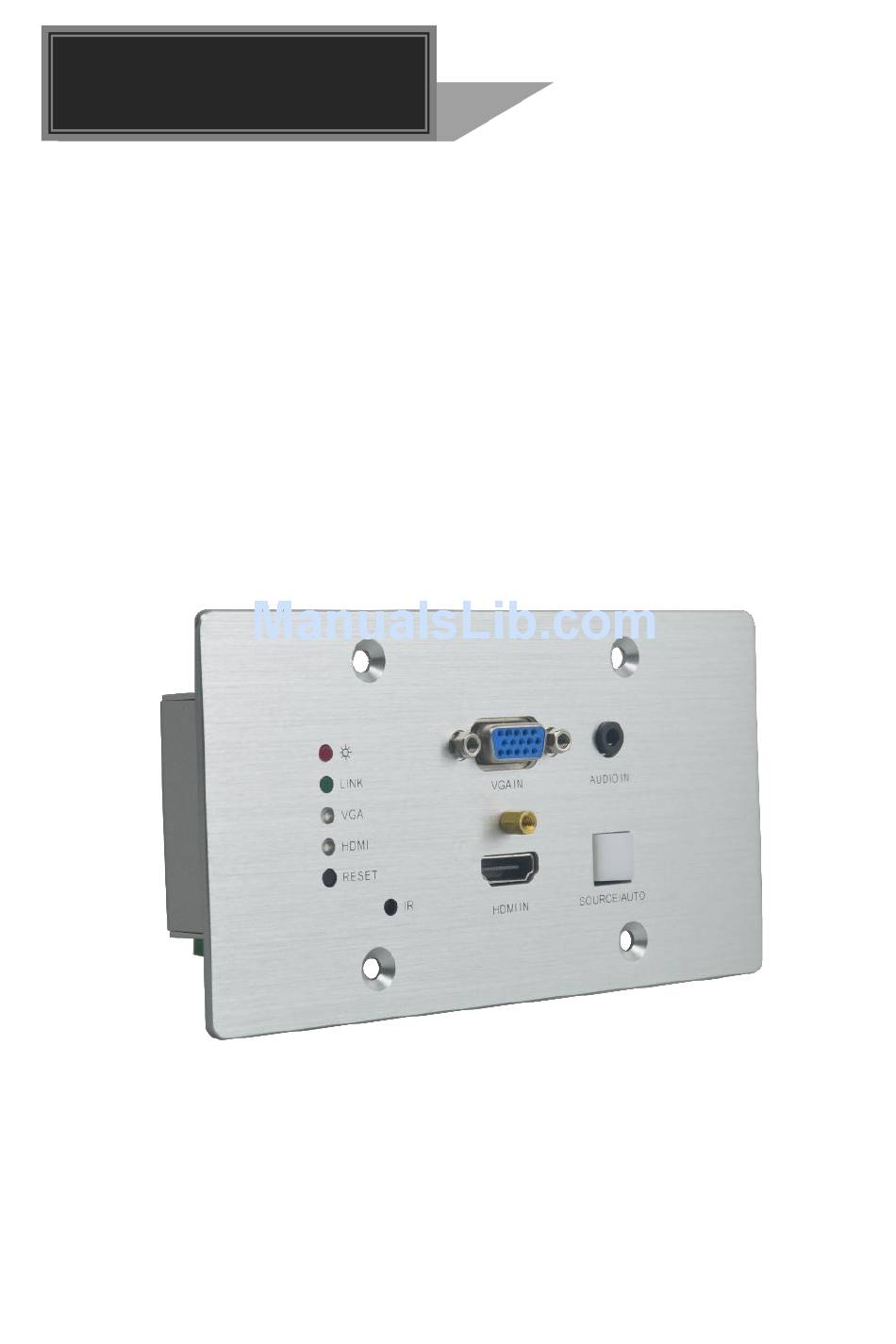

- Page 1 User Manual TPUH406T-EU 4K Wallplate HDBaseT Transmitter All Rights Reserved Version: TPUH406T-EU_2017V1.1...
-
Page 2: Fcc Statement
4K Wallplate HDBaseT Transmitter Preface Read this user manual carefully before using the product. Pictures shown in this manual is for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction only. The functions described in this version are updated till September 6, 2017. -
Page 3: Safety Precautions
4K Wallplate HDBaseT Transmitter SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 4: Table Of Contents
4K Wallplate HDBaseT Transmitter Contents 1. Introduction ......................... 1 1.1 Introduction to TPUH406T-EU ................1 1.2 Feature ......................1 1.3 Package List ...................... 2 2. Specification ....................... 3 3. Panel Description ......................4 3.1 Front Panel ......................4 3.2 Rear Panel ......................5 3.3 Side Panel ...................... -
Page 5: Introduction
HDBaseT technology. The resolution of HDMI input is up to 4K/UHD@ 60Hz 4:2:0 and VGA input up to 1920x1200. TPUH406T-EU is ideal for huddle rooms, classrooms and small conference rooms. The wall‑mountable design provides the convenience of placing input connections precisely where they are needed. -
Page 6: Package List
4K Wallplate HDBaseT Transmitter 1.3 Package List 1 x TPUH406T-EU 4K Wallplate HDBaseT Transmitter 1 x 2-pin Pluggable Terminal Block 1 x 4-pin Pluggable Terminal Block 1 x User Manual Note Please confirm if the product and the accessories are all included, if not, please... -
Page 7: Specification
4K Wallplate HDBaseT Transmitter 2. Specification Input & Output Input (1) HDMI; (1) VGA; (1) AUDIO; (1) 12V POWER ; (1) 19-pin Type A female HDMI; (1) HD-15 VGA; (1) Input Connector 3.5mm mini jack; (1) 2-pin Pluggable Terminal Block Output (1) HDBaseT;... -
Page 8: Panel Description
② RESET This button performs a soft reboot of the TPUH406T-EU. ③ VGA IN VGA input connector, connect with VGA source. 3.5mm stereo audio connector supplies audio for the VGA ④... -
Page 9: Rear Panel
② 12V input, connects with power adapter. ③ 12V output, connects with WP8 Control Panel to energize it. Serial port for control TPUH406T-EU or the third-party device ④ RS232 via RS232 commands. Please refer to the 5. RS232 Control for more details. -
Page 10: Side Panel
4K Wallplate HDBaseT Transmitter 3.3 Side Panel Name Description ① FIRMWARE Micro-USB connector used for firmware update. -
Page 11: System Connection
Laptop Installation ① If installing in a back-box, it is recommended that the TPUH406T-EU be installed in a suitable square box. The square box has sufficient space to terminate the cables with jacks behind the unit when fully installed. ②... - Page 12 HDBaseT Receiver/ Matrix Switcher will be located (somewhere near the display device).See the installation instructions for the 70M HDBaseT Receiver. ③ If using the Control Panel, run another twisted pair cable from the TPUH406T-EU location to the location that the Control Panel will be mounted. ④...
-
Page 13: Button Control
TPUH406T-EU is in AUTO mode. This mode automatically selects the last video source connected to the TPUH406T-EU and outputs it to the display. Press and hold again for approximately 3 seconds, the light will go out, and the device will be in Manual mode which will allow the user to momentarily press the button to toggle between the two sources. -
Page 14: Rs232 Control Software
Uninstallation Delete all the control software files in corresponding file path. Basic Settings: First, connect TPUH406T-EU with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. - Page 15 4K Wallplate HDBaseT Transmitter The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
-
Page 16: Rs232 Command
4K Wallplate HDBaseT Transmitter 6.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 6.3.1 Control Mode Switching Command Function Feedback Example Switch to RS232 mode 1（Default）, RS232 Mode 1: RS232 50779% control scaler switcher and the far-end Control Scaler &... -
Page 17: Hdcp Compliance
4K Wallplate HDBaseT Transmitter 6.3.4 HDCP Compliance Command Function Feedback Example Set the HDCP status of HDMI output 50790% HDCP Active socket to Active Set the HDCP status of HDMI output 50791% HDCP On socket to On Set the HDCP status of HDMI output 50792% HDCP Off socket to Off... - Page 18 4K Wallplate HDBaseT Transmitter Command Function Feedback Example Picture Mode: xx (xx can 50633% Check the picture mode be dynamic, standard, mild, or user.) Picture Mode: xx (xx can 50614% Set the picture mode be dynamic, standard, mild, or user.) 1920x1080 Check the present resolution and 50707%...
-
Page 19: Edid Configuration
4K Wallplate HDBaseT Transmitter 6.3.6 EDID Configuration Command Function Feedback Example 50772% EDID pass-through (default) EDID: bypass mode 50773% Set EDID data to 1080P PCM 2.0ch EDID:1080P&PCM 2ch 50774% Set EDID data to 1080P Dolby 5.1 EDID:1080P&5.1ch 50775% Set EDID data to 1080P3D Dolby 5.1 EDID:1080P3d&5.1ch 50776% Set EDID data to 1080i PCM 2.0ch... -
Page 20: Panel Drawing
4K Wallplate HDBaseT Transmitter 7. Panel Drawing LINK VGA IN AUDIO IN HDMI RESET HDMI IN SOURCE/AUTO 44 mm 151 mm 108 mm 41 mm RS232 Tx Rx... -
Page 21: Troubleshooting & Maintenance
4K Wallplate HDBaseT Transmitter 8. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local are connected correctly correctly or it may be HDMI input is in normal... -
Page 22: Customer Service
4K Wallplate HDBaseT Transmitter 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed 3 (three) years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
