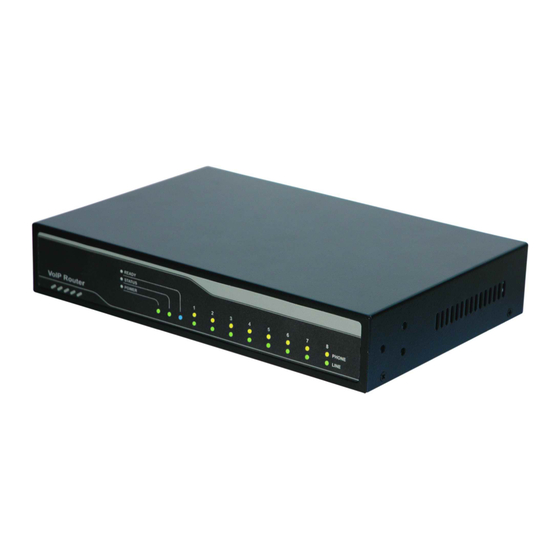

Allwin G300C User Manual

4/8 fxo/fxs voip router
Hide thumbs
Table of Contents

Advertisement

Quick Links

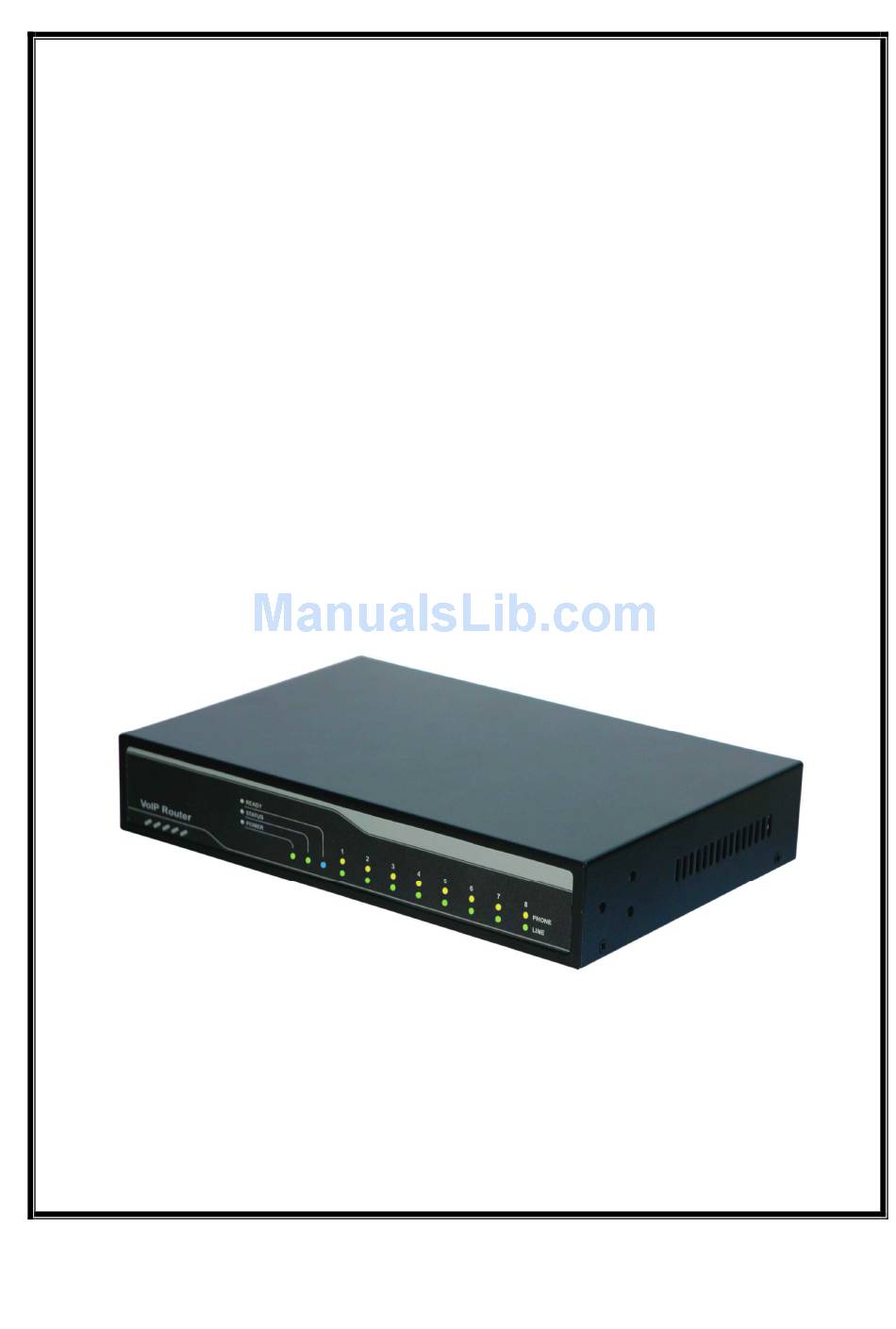

4/8 FXO/FXS VoIP Router
Web UI User's Manual
Version: 2.6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G300C and is the answer not in the manual?

Questions and answers

Summary of Contents for Allwin G300C

  • Page 1 4/8 FXO/FXS VoIP Router Web UI User’s Manual Version: 2.6...

  • Page 2: Table Of Contents

    Table of contents Chapter 1 Web UI Management..................4 1.1 Access to Web UI......................4 1.2 Web UI Management....................5 1.2.1 Web UI Management Overview..............5 1.2.2.1 VoIP Setup/ Port Status/........ 7 1.2.2.2 VoIP/Line Configure/ Line Setting ....... 9 1.2.2.3 Line configure/ Tone Setting ......11 1.2.2.4 Line configure/ Line Feature ......
  • Page 3 1.2.7.4 Administrator Setting ........72 1.2.7.5 System Log ..........73 1.2.8 Route Function(/System Setup) ............75 1.2.8.1 Setting WAN connection: System Setup/Connection ... 75 1.2.8.2 LAN Settings .......... 80 1.2.8.3 NAT ........... 83 1.2.8.4 Firewall..........88 1.2.8.5 Routing..........93 1.2.8.6 UPnP Settings ......... 95 1.2.8.7 DDNS ..........

  • Page 4: Chapter 1 Web Ui Management

    Chapter 1 Web UI Management 1.1 Access to Web UI The VoIP router provide user friendly Web interface to let you configure your router function The default setting of DHCP Server inside VoIP Router is turn ON, So please set up your PC TCP/IP network as “Get IP Automatically”...

  • Page 5: Web Ui Management

    1.2 Web UI Management The VoIP router provide user friendly Web interface to let you configure your router function and VoIP function. There are a help on line content within each setting page. Please press Help hyperlink to view the on line help. There are 3 main functions for web, VoIP, System Setup(Router) &...
  • Page 6 System Maintenance function Configurations Backup/Restore VoIP Module Backup/Restore Reboot System Save Modification Gateway Manual overview...

  • Page 7: Voip Setup/ Port Status

    1.2.2 VoIP Function 1.2.2.1 VoIP Setup/ Port Status/ This page will display the current and last time VoIP call status & result. The PC time : will show the date & time that your connected PC now. The VoIP Router time : will show the date & time on this VoIP router, the date&...
  • Page 8 Talking Sec: Total talked seconds of last VoIP call on this port. Dialed number: On the VoIP call out (line status display “In”). This will display the real dial out number for VoIP call. On the VoIP call in (line status display “Out”). This will display the number will dial out to phone line.

  • Page 9: Voip/Line Configure/ Line Setting

    1.2.2.2 VoIP/Line Configure/ Line Setting /VoIP Setup/Line Configure/Line Setting/ This page will setup the phone line information each port. Port: display the port number, e.g. 1 or 2. Interface: Telephone interface type: FXO: for connect to telephone line or PBX extension line. FXS: for connect to regulate phone set Name: Line name for this port.
  • Page 10 handle the router rule for hot line function. And please also remember to Strip 3 digits to stripe the “hl1” symbol and remember add real phone number you want to dial on Prefix. In this case, the setting example on call out routing (/VoIP Setup/Routing Setup/VoIP Call Out/) for hot line application is as below:...

  • Page 11: Line Configure/ Tone Setting

    1.2.2.3 Line configure/ Tone Setting /VoIP Setup/Line Configure/ Tone Setting A.Call Progress Tone This page defines the tones generated to the phone connected to the phone port. The cadence of CPT is been defined here also. All lines use same tone save modify parameters.
  • Page 12 Busy: Define the busy tone for generate. Ring: Define the ring back tone for generate Low freq: Lower frequency for defined tone High freq: Higher frequency for defined tone. Each tone can define two frequencies, if only one frequency needed, please leave High Frequency to T_ON_1, T_OFF_1, T_ON_2, T_OFF_2: The cadence pattern of up to four intervals for each dual-frequency.

  • Page 13: Line Configure/ Line Feature

    1.2.2.4 Line configure/ Line Feature /VoIP Setup/Line Configure/ Line Feature This page defines the feature on the phone port of the VoIP router. A. Dial Pause signal length(as ,)[100~3000] ms: Define the pause time (ms) of the “,” on the /Routing Setting/VoIP Call Out/.
  • Page 14 Current Drop-> 3 S: Enable FXS interface to generate three seconds Current Drop signal. C. Called Number Relay on FXS ： Define when use the FXS interface to outbound call, resend or Drop out the dialed number. Drop out: Do not send the dialed number. When use the FXS port direct connect to phone set for outbound call, please enable the “Drop out”...
  • Page 15 Line number Priority: The 1 line has high priority; it will always ring the 1 line if it is available. When 1 line is busy, it will try to ring 2 line if it is free. Rotation: 1 line ring first, then 2 line ring next time, when the latest line ring this time, it will come back to ring 1 line next time.

  • Page 16: Line Configure/ Line Polarity

    1.2.2.5 Line configure/ Line Polarity /VoIP Setup/Line Configure/ Line Polarity This page defines the Polarity on the phone port of the VoIP router. If use the normal phone set to connect gateway, please select “Normal”. If use PBX or special PSTN line (support polarity invert), then please select “Invert”.

  • Page 17: Routing Setup/ Voip Call Out Setting

    1.2.2.6 Routing Setup/ VoIP Call Out Setting /VoIP Setup/Routing Setup/VoIP Call Out This page let you define the routing rule for Call out to VoIP. (User press the phone number through phone set dial pad, then VoIP Router translate the phone number by the routing table setting here to destination IP &...
  • Page 18 FirstDigitTime: Define the waiting time (seconds) for user press phone number first digit. User need to press first digits before the setting time (seconds) defined here, if VoIP Router wait for the defined seconds and there is no any digits press, the VoIP Router will stop to wait and feedback the user busy tone.
  • Page 19 the SPACE due to HTTP protocol limitation. Area Code: Define the Prefix number fit this rule, any phone number prefix digits matched with the rule will call out by this rule define. Please Notify there is a compare order rule on this routing table. That mean the VoIP Router will check the rule list from top to bottom one by one, any rule item matched with the prefix digits that user press will go to call out directly no regard to the rest rules below.
  • Page 20 available ( search sequence: gk1 > gk2 > gk3 > gk4). Gk3_2_1 will try gk3 first, then gk2, then gk1. All the setting above can be added by port number, for examples: 168.56.9.22:8495 will call to 8495 port. srn, rsn: same as gkn , basically, it is used for SIP register server.
  • Page 21 4, the first 4 digits 8862 will be truncated and actually call out number will be 12345678. Prefix: The numbers will be added on the prefix of the user press number. For examples, if user press the number is 12345678 and the PREFIX field setting 0028862, actually...
  • Page 22 C.Setting Examples Here is some VoIP call out routing table setting examples below: Define wait time and digits for destination phone number MaxDigits: FirstDigitTime(Sec): OtherDigitTime(Sec): In this case, when user picks up the phone, the VoIP router will generate 30 seconds (defined on FirstDigitTime) dial tone for user press DTMF for destination phone number, After user press first digit DTMF from phone set (for example, 0, the VoIP router will wait 5 seconds (defined on OtherDigitTime) to...
  • Page 23 Port Message Display Talking Port Type Status Connected IP Caller ID Start Time End Time Dialed number Release by name 2004/02/19 2004/02/19 Idle 172.16.7.1 (146)onHangup 13:55:10 13:55:43 Idle Call by Domain name: Index Remark Area Code Min Digits Max Digits IP Address Strip Prefix...
  • Page 24 Index Remark Area Code Min Digits Max Digits IP Address Strip Prefix Profile Delete Take_All 10.1.1.1 Never_Used 8621 20.1.1.1 never Strip and Prefix User is easy to combine using Strip and Prefix define to modify the phone number from phone to real call out phone number, for example, if the VoIP router is installed on Taipei and use another Gatekeeper to service global service.
  • Page 25 GK2_3_1 gk2_3_1 Delete GK_ALL Delete By Index 1, if user input any phone number with prefix code is 1, The VoIP Router will call out via Gatekeeper 2. By Index 2, if user input any phone number with prefix code is 2, The VoIP Router will try to call out by Gatekeeper 2 ( if register to Gatekeeper 2 is successful), if Gatekeeper 2 is not available, it will check Gatekeeper 3, then check Gatekeeper 1.That mean if register to gk2 is failure and register to gk3 &...
  • Page 26 UseDefaultPF Gate.proxy.com Delete Q.931 H.245 DTMF T.38 Package Index Name CODEC Fast Tunneling Relay FAX Relay Frame Start Delete G.723.1 Out band 00001 H.323 1001 E.164 Delete G.723.1 In band 00002 H.323 1002 E.164 Delete When VoIP call out number with prefix 1 will use the Profile named PF1 (H.323 ID1 = 0001, E.164 ID=1001, DTMF Relay=Out band, Q.931 Fast Start=ON) to Call out VoIP.

  • Page 27: Voip Call In Routing Table Setting

    1.2.2.7 VoIP Call In Routing Table Setting /VoIP Setup/Routing Setup/VoIP Call In/ This page let you define the routing rule for Call in from VoIP. (VoIP Router got a VoIP call required form Network, and then translates the phone number passed from remote side VoIP Router to the real dial out number &...
  • Page 28 range setting on , if it is /VoIP Setup/Routing Setup/Authorization/ within the authorization, the gateway will allow the call out, but if the remote caller’s IP is not in the range, it will refuse to call out and terminate this call. Area Auth CallWaiting...
  • Page 29 Index Area Code Strip Prefix Maximum Minimum From LineNo Gatekeeper Alert Profile Forward Delete 2 0,12345678 Delete Ex: VoIP Call in number is 90 and real dial out number is 0,12345678 by stripe 2 digits and add 0,12345678 prefix, so the real dial out number is 0,12345678.
  • Page 30 Index Area Code Strip Prefix Maximum Minimum From To LineNo Gatekeeper Alert Profile Forward Delete Delete Delete Delete Ex. Any VoIP Call in number with prefix 601 will ring the line 1, and Any VoIP Call in number with prefix Call in number 602 will ring the line 2. any other numbers will ring any available (not busy) lines.
  • Page 31 hold the original conversation. When some one call in when you are busy on another phone call , you will hear a du-du call waiting signal, please use flash key on your phone to hold the original call and answer the incoming call, press again flask key will switch back the original call party.
  • Page 32 G.723.1 Out band 00001 H.323 1001 E.164 Delete G.723.1 In band 00002 H.323 1002 E.164 Delete When VoIP call in number with prefix 1 will use the Profile named PF1 ( H.323 ID1 = 0001, E.164 ID=1001, DTMF Relay=Out band, Q.931 Fast Start=ON) to answer the VoIP Call in.
  • Page 33 number will change to 104). When the line 1 user is going to have a tour to another location with same VoIP router equipment, user setup the called prefix number 601 forward to profile name CF1, and in CF1 profile, the Always field is set to hk.big.com/301, that mean any call number with prefix 601 will always be forward to another VoIP Router locate at hk.big.com and dial out number is 301.

  • Page 34: Voip Call In Ivr Setting

    1.2.2.8 VoIP Call In IVR Setting /VoIP Setup/Routing Setup/VoIP Call In IVR/ When Enable the [Prompt Voice for VoIP Call In function on /VoIP , all the remote party of VoIP caller will Setup/Advance Setup/Prompt Voice/ hear the customization upload voice file and need press the destination number.
  • Page 35 A. Time & Digits wait for user The VoIP Router wait user input the number digits & time parameters as below: Time & Digits wait for user Press. MaxDigits: Define the maximum digits wait for user press for all VoIP Call Out, if user press digits match the number defined here.
  • Page 36 this rule, if user press digits less the number defined here. It will keep waiting for input until exceed the FirstDigitTime defined time. If user press digits more then Min Digits here, the VoIP Router will wait time defined on OtherDigitTime then go to translate for call out rule without needed to press # key.

  • Page 37: Voip Routing Profile Setting

    1.2.2.9 VoIP Routing Profile Setting /VoIP Setup/Routing Setup/Routing Profile/ This page defines the optional special VoIP parameters when making/received a VoIP call. For define some special parameters for different VoIP equipment or authorize purpose, please add a profile at /VoIP Setup/Routing Setup/ Routing Profile/ and use the same name as the profile on the Call in Routing Table...
  • Page 38 When select In band to transfer the DTMF during VoIP, the user pressed DTMF tone will be treat as general voice and been compressed then transmit to remote side to decompress play back, it maybe cause some problem on duplicate or missing DTMF receive. When select Out band to transfer the DTMF during VoIP, the user pressed DTMF tone will be decode by local VoIP Router then transmit as signal, after received on received remote VoIP Router, it will be...
  • Page 39 Please remember to press the modify button to take it effect. For store back to flash memory, please press Save Modification (/Syetem Maintenance/Save Modification/). Here is VoIP Routing Profile setting examples below: Q.931 H.245 DTMF T.38 Package Index Name CODEC Fast Tunneling Relay...

  • Page 40: Voip Forwarding Profile Setting

    1.2.2.10 VoIP Forwarding Profile Setting /VoIP Setup/Routing Setup/Forwarding/ This page defines the forwarding behavior include: get an unmatched prefix number for VoIP call in, Line busy No answer Please add a profile at /VoIP Setup/Routing Setup/Routing Profile/ put the name of profile on the Call out Routing table /VoIP Setup/Routing Setup/VoIP Call Out/ Other: Define the forward IP and forward phone number when there is no...
  • Page 41 No Answer Sec. Defined the wait seconds for redirect forward to another IP(or URL). Delete: Delete this rule item on routing table. To add new rule item on routing table, please assign the item number you want to insert before, input AREA CODE then press ADD button to add it on the list.
  • Page 42 Router locate at hk.big.com and dial out number is 301. When the line 2 is busy and another VoIP with prefix 602 Call in, it will forward it to the assist.big.com with same number (defined on OnBusy). When VoIP Call In number with prefix 602, it will ring the line 2 for 30 seconds (defined on No Answer Sec.), if no one answer line 2 within 30 seconds, it will forward the call to another VoIP Router located at assist.big.com and dial out number is 610 (defined on No Answer) .

  • Page 43: Voip Authorization Setting

    1.2.2.11 VoIP Authorization Setting /VoIP Setup/Routing Setup/Authorization/ When this gateway has been used for outbound call, it can enable to check the remote caller gateway’s IP to decide accept or refuse the call. If define the IP range /VoIP Setup/Routing Setup/VoIP here and enable the [Auth] option on the Call In/ , only the IP in range will allow to call out by this gateway.

  • Page 44: Register Server Setting

    1.2.3 Register Server Setting 1.2.3.1 Register Status /VoIP Setup/Register Server/Register Status You Can check the register status of this gateway on this page. a. MAC: this gateway’ MAC Address。 b. RS1-4: Indicate the status of 4 server register. SIP&H323: The protocol used for registering the server, this gateway supports both H.323 and SIP protocol.

  • Page 45: Setup The Register Server-Sip Protocol

    1.2.3.2 Setup the Register Server—SIP Protocol 1.12 /VoIP Setup/Register Server/Server 圖 If you need use this gateway to register to the H.323 gatekeeper or SIP register/proxy server, you can setup the account for register here. This gateway can register up to four Servers simultaneously. a.
  • Page 46 f. Thought Outbound Proxy: When your gateway is installed behind the firewall or NAT, you maybe need use Proxy server to relay your call. If so, please input the Outbound proxy server’s IP here. g. Prot[1~65535]: Port number used for register Outbound Proxy Server. h.

  • Page 47: Setup The Register Server-H.323 Protocol

    1.2.3.4 Setup the Register Server—H.323 Protocol /VoIP Setup/Register Server/Server When Select use H.323 to register gatekeeper, please input the flow information for register: Register Method: Global: All the lines of the gateway share same account to register. Independent: Each line different/same account independently for register.
  • Page 48 d. GK ID: Some Gatekeeper Server need you input an ID for register, please input here. e. Proxy for NAT： When your gateway is installed behind the firewall or NAT, you maybe need use Proxy server to relay your call. If your gatekeeper supports this proxy function, you can enable gateway function here to use that.

  • Page 49: Auto Provision Function

    1.2.4 Auto Provision function To use the auto provision function, the system have to install a dedicate Auto Provision Server for keep all parameters for installed gateways. When Enable the Auto Provision function, the System administer can modify all the Parameters of each gateway on the local Provision Server, and remote gateway will automatic download all the parameters from Provision Server.
  • Page 50 It will indicate the status of linking to each Provision Servers. The gateway will link to one of the five setting Provision Server each time. If successful link, it will display green indicator. If failure link, it will display red indicator. The yellow indicator means it is disable. Last link time: Display the Date &...

  • Page 51: Advance Setup

    1.2.5 Advance Setup 1.2.5.1 NAT Traversal /VoIP Setup/Advance Setup/NAT Traversal If your VoIP gateway is installed behind NAT, you may need a special configuration and server to establish the VoIP communication, this gateway support several method for NAT Traversal as below: By Outbound Proxy: User can appoint an Outbound Proxy Server to handle the NAT traversal on VoIP Setup/Register Sever/Server #/...

  • Page 52: Listen Port

    1.2.5.2 Listen Port /VoIP Setup/Advance Setup/Listen Port In this page, user can define the usage port for setup the VoIP communication. Both side of gateways need use the same port for begin VoIP communication. a. SIP Listen Port : Define the listen port for SIP protocol, the default port is 5060, input range from 1024 to 65535.

  • Page 53: Voip Package

    1.2.5.3 VoIP Package /VoIP Setup/Advance Setup/VoIP Package User can define the parameters relative about VoIP package on this page. Jitter Buffer(ms): Define the Jitter buffer size, input range is from 20 to 200ms. VoIP DTMF Relay Mode: Define the relay mode for DTMF signal: In band: When local gateway detects a DTMF signal, it will not decode it .
  • Page 54 Silence Detection / Suppression: Enable or disable the Silence Detection/VAD function. When Enable, if local gateway detect a silence situation ( no talk), it will send a VAD package rather than a full voice package for remote side to active CNG ( Comfort Noise Generation) to save the bandwidth.

  • Page 55: Rtp Packet Summary

    1.2.5.4 RTP Packet Summary /VoIP Setup/Advance Setup/RTP Packet Summary On this page, user will know the RTP package summary about last VoIP call. Line#: number of line Using CODEC: ex.: G.723.1, G.729a Source IP: Remote side IP Source Port: Remote side port Packet Interval: interval time between 2 packets.(ms) Packet Send: number of packets sent.

  • Page 56: Flash & Call Waiting

    1.2.5.5 Flash & Call waiting /VoIP Setup/Advance Setup/Flash & Call waiting On this page, user can define the parameters relative to the FLASH key and Call Waiting function. These functions usually work with PBX Token for flash key on VoIP(!): Define the token for flash key during VoIP protocol ( use “! “...

  • Page 57: Gain

    1.2.5.6 Gain /VoIP Setup/Advance Setup/Gain This page defines different function gain on the gateway. Gain when Dial tone phase： When phone off hook, user will hear the dial tone generated from the gateway, sser can adjust the play/record gain during this phase for stable DTMF detection.
  • Page 58 Setting the Caller ID Receiver gain. Incorrect value will cause the Caller ID signal can not be receive, please use the default value if no other issue.

  • Page 59: Qos

    1.2.5.7 QoS /VoIP Setup/Advance Setup/QoS User can define the ToS field on the VoIP packet for Quality of Service control. The ToS field is included these 2 parameters: Precedence: bit 0,1,2 DSCP(Diffserv Code Point): bit 3~7 User can select inptut either IP Precedence or DSCP value. Or input the ToS binary code directlly.

  • Page 60: Cdr

    1.2.5.8 CDR /VoIP Setup/Advance Setup/CDR The Gateway can export all the CDR (Call detail Record) to external CDR server by HTTP protocol. The gateway supports up to 2 CDR servers for keep the record. Export to CDR Server: Please install and enable this function if you want to keep CDR of this gateway.

  • Page 61: Foip

    1.2.5.9 FoIP /VoIP Setup/Advance Setup/FoIP User can define the parameters relative FAX Over IP function. Maximum FoIP Rate (bps) Appoint the maximum FAX transceiver rate during FoIP: Disable: Only the VoIP function is supported on the gateway. FoIP is disabled. Auto: Gateway will negotiation the maximum speed for FoIP with FAX machine..

  • Page 62: Prompt Voice&Beep

    1.2.5.10 Prompt Voice&Beep /VoIP Setup/Advance Setup/Prompt Voice & Beep This gateway can use voice or beep to prompt the user different situation. User can download/upload their own prompt voice wave files also. For prompt beep enable function, it can be enable by: VoIP Call out Beep: When enable, the gateway will generate a beep for call out for VoIP VoIP Call out Failure twice Beep...
  • Page 63 Prompt voice for replace dial tone: Use a customize voice file to replace the dial tone Warming Prompt after VoIP out failure: Annunciate a customize voice file when VoIP call failure. No PSTN Line Connected : Annunciate a customize voice file when there is no trunk connected to the PSTN port and failure to call via PSTN line.

  • Page 64: Application

    1.2.6 Application 1.2.6.1 Ping test /VoIP Setup/Application/Ping Test User can use the Ping Test function to test the network status or remote device Ping Destination:Ping: Target device IP for ping test. Number of Ping[1-100]Ping 次數: Number of ping test, maximum is 100. Ping Packet Size[56-5600 bytes]: Size of ping test packet, input range is between 56 to 5600 bytes。...

  • Page 65: Telnet & Snmp

    1.2.6.2 Telnet & SNMP /VoIP Setup/Application/Telnet & SNMP User can enable and set the user account for the SNMP and Telnet function of this gateway on this page. 。 a. Enable telnet server Enable: Enable telnet service function, user can telnet this gateway.

  • Page 66: System

    1.2.7 System 1.2.7.1 System Status This page reveals the status of the gateway including WAN, LAN and some hardware information. Internet This sub-block shows the Internet information of your home gateway. It depends on the WAN mode connecting to your ISP. The different items correspond to each WAN mode will be revealed after the common part of the Internet status sub-block.
  • Page 67 Cable/DSL This field indicates the Internet connection status. Its value is Connected , Disconnected or Connecting. WAN IP Connected to the Internet through Cable or ADSL modem, the ISP will offer the home gateway a WAN IP address to communicate with other hosts in the Internet. Subnet Mask This field indicates a mask...
  • Page 68 Gateway IP Address This field is the LAN IP address of the home gateway. Subnet Mask This field is the subnet mask of the network in the LAN side. DHCP Server The home gateway supports DHCP service. This field indicates the enabled status of the DHCP Server.
  • Page 69 Hardware Version Tells the version of hardware of the gateway. Serial Number This field indicates serial number.

  • Page 70: System Settings

    1.2.7.2 System Settings This page is used to configure the names given by the ISP, if any, to represent the gateway, and also to set the local time zone. Host Name Some ISPs request the host name to represent the home gateway. Fill the host name given by the ISP, or you may not be able to access the Internet successfully.

  • Page 71: Date & Time

    1.2.7.3 Date & Time This page is used to setting the system time of VoIP gateway; it can define the correct time by which ways.

  • Page 72: Administrator Setting

    1.2.7.4 Administrator Setting This page allows you to change the user and administration password used to manage this router for security reasons.

  • Page 73: System Log

    1.2.7.5 System Log The system log page shows the gateway’s activity logs such as the Internet connectivity, hacker attack, intrusion detection and the wireless association. The log helps you to do fault analysis or regular statistics. Download Save the log to a local file. Clear Clear the log.
  • Page 74 Remote Log Settings Remote Log Check this file and the gateway will send the log message to the “Send Log to” remote host. Send Log to Set the IP address to send log. Email Log When the log buffer is full, the gateway will check whether this item is enabled. If enabled, the gateway will send all the log messages to the “Send Email to”...

  • Page 75: Route Function(/System Setup)

    1.2.8 Route Function(/System Setup) 1.2.8.1 Setting WAN connection: System Setup/Connection /System Setup/WAN/Connected Type Connection Type There are five ways to connect to the Internet. They are Dynamic IP, Static IP, PPPoE, PPTP and L2TP. The cable modem ISP usually requests you to obtain the WAN IP dynamically.
  • Page 76 Request IP address You can specify the IP address you desired. But the ISP has the right to neglect it and provides you a different one. MTU (576-1500) You can specify the MTU (maximum transmission unit) of your home gateway. The default value is 1500 bytes and in normal case, you don’t have to change.
  • Page 77 Subnet Mask Set the subnet mask of the network. ISP Gateway Address Set the ISP’s gateway IP address. This address routes packets to Internet. C. PPPoE This page is the PPPoE configuration page. Most of the ISPs request the user to connect to central office (CO) side via PPPoE, acronym of Point-to-Point Protocol over Ethernet, which provides authentication, authorization and accounting.
  • Page 78 Service Name Some ISP provides the service name of this PPPoE connection. If so, enter this item, or make it blank. MTU (546-1492) Maximum Transmission Unit (MTU) is the largest physical packet size measured in bytes, which a network can transmit. Any messages larger than the MTU are divided into smaller packets before sent.
  • Page 79 dropped. D. DNS This page sets the primary and secondary DNS servers, which were given by your ISP or known to you. When a domain name request received, the gateway tries to resolve to it from the Primary Domain Name Server. Resolving failed, the gateway tries the Secondary sever again.

  • Page 80: Lan Settings

    1.2.8.2 LAN Settings /S/System Setup/LAN/LAN Settings/ The home gateway is an IP sharing device, which provides the home users share the same public IP address. While in the LAN side, each network device must have one private IP address to do network communication. This page is to set the configuration of the LAN interface of the gateway.
  • Page 81 IP Pool Ending Address The ending address provided by DHCP sevice. Lease Time Set the lease time of the IP address to renew. Local Domain Name Set the gateway’s local Domain Name. DNS Proxy The home gateway acts as a DNS Proxy. In this case, the DHCP service will set LAN interface IP address as the DNS server address, and inform the clients in the DHCP renew process.
  • Page 82 Host Name This column shows the host name of the DHCP clients. IP Address This column shows the IP Address of the DHCP clients. MAC Address This column shows the MAC Address of the DHCP clients. Static Check this item to make the IP address static, and every time the client connect to the home gateway, it will get the same IP address all the way.

  • Page 83: Nat

    1.2.8.3 NAT Virtual Server This is the virtual server page, which set the rules translate the private IP/private port pairs to the public ports. Private IP Set the IP address of the virtual server. Private Port Set the port of the virtual server to connect to Internet. Type Set the protocol of the virtual server.
  • Page 84 Special Application Trigger Port To define the TCP/UDP port range to monitor, when initiating from the home network, the public ports configured in this entry will be activated. Trigger Type Defines the protocol type: TCP, UDP or both of the trigger ports. Public Port This column defines the public ports opened when the trigger ports were seen.

  • Page 85: Mapping Ports

    Port Mapping The Port Mapping page does a port range mapping. Server IP Set one of LAN client’s IP address to do port mapping. Mapping Ports Set the ports to mapping from WAN to LAN. You can enter multiple ports, delimited by comma, or a range of port by dash.
  • Page 86 Some applications have to do Application Level Gateway (ALG) to monitor the transaction or monitor the payload of the packet. This page let you setup them. We use mnemonic nouns to describe the specific ALGs. The checked entries will be enabled by the ALG processing. For the Non-Standard FTP Port, you have to set the port number to let the ALG take it as an FTP session.
  • Page 87 DMZ table This table lets you configure the DMZ hosts. If you have more than one public IP Addresses, you can specify each one with an associated DMZ host. Public IP MZ table Address Select among the WAN IP addresses of the home gateway. IP Address of Virtual DMZ Host Fill the client in the LAN side as the associated DMZ host.

  • Page 88: Firewall

    1.2.8.4 Firewall Firewall Options Enable Hacker Attack Protect The hackers always try to break into you system or crack down your network. The gateway provides hacker attack protect modules to protect your home network. Discard PING from WAN side “Ping” is the most widely used tool to diagnose the network. Hackers use “ping”...
  • Page 89 scans all the TCP/UDP port of a station to find out the opened ports. After confirmed, the hackers try to connect to the listened ports to attack your computer. Check this option, the home gateway will drop the port scan packets to protect your system.
  • Page 90 Client Filtering Enable Client Filter Check this box and all the entries below will take effect. Block the IP addresses ranged to connect to Internet. Port Set the port range, within which is not allowed to connect to Internet. Type Set which protocol, TCP/IP/Both, of this entry to inhibit.
  • Page 91 URL Filtering Enable URL Filter Check this box and all the entries below will take effect. The IP addresses ranged will be the candidate to check the URL when they use web browser to access the Internet. URL filter string The specific URL string to block.
  • Page 92 MAC Control MAC Control MAC Address Control Check this item to enable MAC control service. Filter out or only accept the following MAC address connect to Internet Select “Filter out”, the MAC addresses list in the following table will be block out to access the Internet.

  • Page 93: Routing

    1.2.8.5 Routing Routing Table To set this Destination LAN IP This field indicates the destination IP of this route entry. Subnet Mask This field indicates the Subnet Mask of this route. Gateway If a packet’s destination IP address do “bit and” operation with the “Subnet Mask”...
  • Page 94 Static Routing Destination LAN IP This field indicates the destination IP of this route entry. Subnet Mask This field indicates the Subnet Mask of this route. Gateway If a packet’s destination IP address do “bit and” operation with the “Subnet Mask”...

  • Page 95: Upnp Settings

    1.2.8.6 UPnP Settings UPnP Enable UPnP Check this item to enable UPnP. UPnP Port Number Set UPnP port number to announce to the UPnP control points. The UPnP control points use this TCP port to send request to the home gateway. Advertise Time (60-1800) Set the time interval after which the home gateway sends advertisement packets.
  • Page 96 Port Mapping Remote Host This field lists remote host that connect to LAN client. External Port This field lists the port of the remote host connect to LAN client. Internal Client This field lists LAN client connect to the Internet. Internal Port This field lists port of LAN client connect to the Internet.

  • Page 97: Ddns

    1.2.8.7 DDNS Enabled Check this item to enable the DDNS settings Disabled Check this item to disable the DDNS settings Host Name Set your host name that need to do DDNS update. DDNS Server Set the DDNS server that updates your IP address. User Name The DDNS server requires you to supply a name and password to update your IP address.

  • Page 98: Backup/Restore

    1.2.9 Backup/Restore 1.2.9.1 Configuration /Backup-Restore/Configurations/ This page let you backup / Restore all of your configuration parameters on the VoIP Router. It is very good idea to back up all of your VoIP Router configuration parameters after install. To Backup, press Download setting backup file, and input the file name you want and file location to save.

  • Page 99: Voip Module

    1.2.9.2 VoIP Module /System Maintenance/Backup-Restore/Configurations/ This page displays the current firmware module version and let you backup / Restore all of your VoIP firmware module on the VoIP Router. Please use this page to update the VoIP module firmware if necessary. To Restore from local file, press the Browse button the select the VoIP module file to upload then press Restore .

  • Page 100: Reboot System

    1.2.9.3 Reboot System /Reboot System Use the Reboot button on this page to reboot your VoIP Router, before you reboot, please make sure you have to press the Saved modification to save your current configuration to Flash ROM, otherwise all the change will be disappear after reboot.

  • Page 101: Save Modification

    1.2.10 Save Modification /Save Modification/ Most of the VoIP Router parameters will take effective after you modify, but it is just temporary stored on RAM only, it will disappear after your reboot or power off the VoIP Router, to save the parameters into Flash ROM and let it take effective forever, please remember to press the Save Modification button after you modify the parameters.
