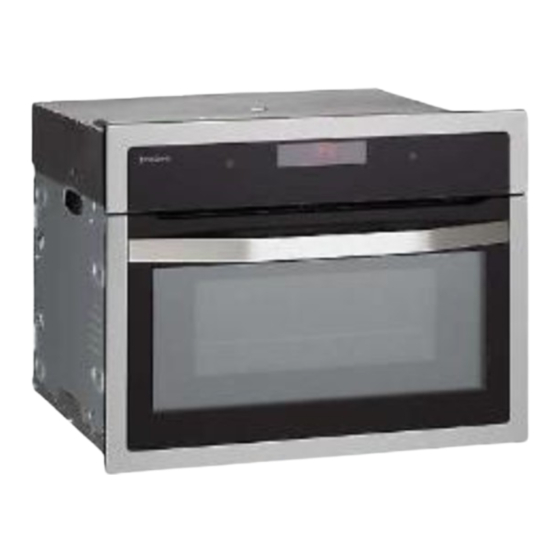

John Lewis JLBIMW02 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Microwave Oven
JLBIMW02
JLBIMW03
User Manual

Advertisement

Table of Contents
loading

Related Manuals for John Lewis JLBIMW02

Summary of Contents for John Lewis JLBIMW02

  • Page 1 Microwave Oven JLBIMW02 JLBIMW03 User Manual...

  • Page 2: Table Of Contents

    Contents Setting the Quick Start function Safety information Examples of cooking applications for power Children and vulnerable people safety settings General Safety Clock functions Safety instructions Clock functions table Installation Setting the clock functions Electrical connection Heat + Hold Extra Time Care and cleaning Automatic programmes Internal light...

  • Page 3: Safety Information

    Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 elements. Children less than 8 years of age shall be kept away unless continuously supervised. Always use oven gloves to remove or put in accessories or • ovenware. Before maintenance cut the power supply. • Ensure that the appliance is switched off before replacing the lamp •...
  • Page 5 Microwave heating of beverages can result in delayed eruptive • boiling. Care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred • or shaken and the temperature checked before consumption, in order to avoid burns.

  • Page 6: Safety Instructions

    Safety instructions • The shock protection of live and insulated parts Installation must be fastened in such a way that it cannot be removed without tools. Warning! Only a qualified • Connect the mains plug to the mains socket person must install this only at the end of the installation.

  • Page 7: Care And Cleaning

    • Do not apply pressure on the open door. Care and cleaning • Do not use the appliance as a work surface or as a storage surface. Warning! Risk of injury, fire, • Open the appliance door carefully. The use of or damage to the appliance.

  • Page 8: Service

    • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. • Remove the door catch to prevent children or pets from becoming trapped in the appliance. Service •...

  • Page 9: Product Description

    Product description General overview 1. Control panel 2. Electronic programmer 3. Heating element 4. Microwave generator 5. Lamp 6. Shelf support, removable 7. Shelf positions Accessories Wire shelf For cookware, cake tins, roasts. Microwave Oven User Manual...

  • Page 10: Control Panel

    Control panel Electronic programmer 9 10 Use the sensor fields to operate the appliance. If they are not visible touch to activate them. Sensor Function Comment field ON / OFF To activate and deactivate the appliance. Grilling or Assisted Touch the sensor field once to choose a heating function or Cooking the menu: Assisted Cooking.

  • Page 11: Display

    Sensor Function Comment field Down key To move down in the menu. Time and additional To set different functions. When a heating function operates, functions touch the sensor field to set the timer or the functions: Func- tion Lock, Favourite Programme, Heat + Hold, Set + Go. Minute Minder To set the function: Minute Minder.
  • Page 12 Symbol Function Heat-up Indicator The display shows the temperature in the appli- ance. Heat + Hold The function is active. Microwave Oven User Manual...

  • Page 13: Before First Use

    Before first use Warning! Refer to Safety chapters. Initial Cleaning Remove all accessories and removable shelf supports from the appliance. Refer to "Care and cleaning" chapter. Clean the appliance and the accessories before first use. Put the accessories and the removable shelf supports back to their initial position.

  • Page 14: Daily Use

    Daily use 2. Press to select the menu option. Warning! Refer to Safety chapters. 3. Press to move to the submenu or accept the setting. At each point you can go back to Navigating the menus the main menu with 1.

  • Page 15: Activating A Heating Function

    Symbol Submenu Description Display Brightness Adjusts the display brightness by degrees. Set Language Sets the language for the display. Buzzer Volume Adjusts the volume of press-tones and signals by degrees. Key Tones Activates and deactivates the tone of the touch fields. It is not possible to deactivate the tone of the ON / OFF touch field.
  • Page 16 Cooking with the lamp off Deactivate the lamp during cooking and activate only when you need it. Microwave Oven User Manual...

  • Page 17: Microwave Mode

    Microwave mode • Use flat, wide dishes. Microwave • Do not use cookware made of porcelain, ceramic or earthenware with unglazed bottoms General: or small holes, e.g. on handles . Moisture going Caution! Do not let the into the holes can cause the cookware to crack appliance operate when there when it is heated.

  • Page 18: Suitable Cookware And Materials

    Suitable cookware and materials Cookware / Material Microwave Grilling Defrosting Heating Cooking Ovenproof glass and porcelain with no metal components, e.g. Pyrex, heat-proof glass Non-ovenproof glass and porcelain Grill shelf, glass and glass ceramic made of ovenproof / frost-proof material e.g. Arcoflam Ceramic , earthenware Heat-resistant plastic up to 200 °C...

  • Page 19: Microwave Functions

    Result Remedy The food after cooking is too dry. Set shorter cooking time or select lower microwave power and cover with material suitable for use in the microwave. The food is still not defrosted, hot or cooked Set longer cooking time or select higher microwave power. after the end of cooking time .

  • Page 20: Setting The Combi Function

    4. Touch to set the function: Duration. Refer 2. Touch and do the same steps as when you to "Setting the clock functions". set the Microwave function. When the time of the function: For some functions the microwave Duration is longer than 7 minutes will start as soon as the set the Microwave power is decreased temperature is reached.
  • Page 21 Power setting • 400 Watt Continuing to cook meals • 300 Watt Cooking delicate food • 200 Watt Heating baby food Simmering rice Heating delicate food Melting cheese • 100 Watt Defrosting meat, fish, bread Defrosting cheese, cream, butter Defrosting fruit and cakes (gateaux) Raising yeast dough Heating up cold dishes and drinks Microwave Oven User Manual...

  • Page 22: Clock Functions

    Clock functions Clock functions table Clock function Application Minute Minder To set a countdown (max. 2 h 30 min). This function has no effect on the operation of the appliance. to activate the function. Press to set the minutes and to start.

  • Page 23: Extra Time

    4. Press again and again until the display shows: Heat + Hold. 5. Press to confirm. When the function ends, an acoustic signal sounds. The function stays on if you change the heating functions. Extra Time The function: Extra Time makes the heating function continue after the end of Duration.

  • Page 24: Automatic Programmes

    Automatic programmes Warning! Refer to Safety chapters. Recipes online You can find the recipes for the automatic programmes specified for this appliance on our website. To find the proper Recipe Book check the PNC number on the rating plate on the front frame of the appliance cavity.

  • Page 25: Using The Accessories

    Using the accessories Warning! Refer to Safety chapters. Inserting the accessories Use only suitable cookware and material. Warning! Refer to "Microwave mode" chapter. Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

  • Page 26: Additional Functions

    Additional functions Favourite Programme 3. Press to confirm. 4. Select your favourite programme name. You can save your favourite settings, such as 5. Press to confirm. duration, temperature or heating function. They are available in the menu: Favourite Programme. Using the Child Lock You can save 20 programmes.

  • Page 27: Automatic Switch-Off

    1. Activate the appliance. – if you touch a symbol during the night 2. Set a heating function. brightness (apart from ON / OFF), the display goes back to the day brightness 3. Press again and again until the display mode for the next 10 seconds.

  • Page 28: Hints And Tips

    Hints and tips • Set the shelf into the shelf position as Warning! Refer to Safety recommended in the grilling table. chapters. • Always set the pan to collect the fat into the first shelf position. • Grill only flat pieces of meat or fish. The temperature and baking times •...
  • Page 29 Defrosting meat Food Power Quantity (kg) Time (min) Standing time Comments (Watts) (min) Whole cuts of 10 - 12 10 - 15 Turn halfway meat through. Steak 3 - 5 5 - 10 Turn halfway through, remove defrosted parts. Mixed minced 10 - 15 10 - 15 Turn halfway...
  • Page 30 Defrosting fish Food Power Quantity (kg) Time (min) Standing time Comments (Watts) (min) Whole Fish 10 - 15 15 - 20 Turn halfway through. Fish fillets 10 - 12 15 - 20 Turn halfway through. Defrosting sausage Food Power Quantity (kg) Time (min) Standing time Comments...
  • Page 31 Food Power Quantity Time (min) Standing time Comments (Watts) (min) Dry cake (e. g. 1 piece 2 - 4 15 - 20 Turn plate half- Pound cake) way through. Fruit cake 1 piece 1 - 2 15 - 20 Turn plate half- way through.
  • Page 32 Food Power Quantity Time (min) Standing time Comments (Watts) (min) Baby milk (bot- 1000 0.2 kg 0:20 - 0:40 Put spoon into tle, 180 ml) bottle, stir and check tempera- ture. Convenience 0.4 - 0.5 kg 14 - 20 Remove any alu- food minium lids, turn halfway through.
  • Page 33 Food Power Quantity Time (min) Standing time Comments (Watts) (min) Vegetables, 0.5 kg 14 - 18 Add approx. 50 short cooking ml water, cook covered, stir time, frozen halfway through. Vegetables, long 0.5 kg 14 - 20 Add approx. 50 cooking time, ml water, cook covered, stir...

  • Page 34: Care And Cleaning

    Care and cleaning Warning! Refer to Safety chapters. Notes on cleaning • Clean the front of the appliance with a soft cloth with warm water and a cleaning agent. • To clean metal surfaces, use a dedicated 2. Pull the front end of the shelf support away cleaning agent.
  • Page 35 3. Replace the lamp with a suitable 300 °C heat- resistant lamp. 4. Install the glass cover. Microwave Oven User Manual...

  • Page 36: Troubleshooting

    Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Remedy You cannot activate or operate the The oven is not connected to an Check if the oven is correctly con- oven. electrical supply or it is connected nected to the electrical supply (re- incorrectly.

  • Page 37: Service Data

    Problem Possible cause Remedy Steam and condensation settle on You left the dish in the oven for too Do not leave the dishes in the oven the food and in the cavity of the long. for longer than 15 - 20 minutes af- oven.

  • Page 38: Repairs - After Sales Service

    John Lewis, Aberdeen 01224 625000 information contained within this instruction John Lewis, Ashford 01233 811010 manual, the next step is to contact John Lewis technical support on: John Lewis, Bluewater 01322 624123 0330 1230106...
  • Page 39 John Lewis, Nottingham 0115 941 8282 John Lewis, Trafford 0161 491 4040 John Lewis, Oxford Street 020 7629 7711 John Lewis at home, Turnbridge Wells 01892 506830 John Lewis, Peterborough 01733 344644 John Lewis, Watford 01923 244266 John Lewis at home, Poole 01202 756020...

  • Page 40: Environmental Concerns

    ENVIRONMENTAL CONCERNS marked with the symbol with the household Recycle the materials with the symbol . Put waste. Return the product to your local the packaging in applicable containers to recycle recycling facility or contact your municipal office. it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.
  • Page 41 Microwave Oven User Manual...
  • Page 42 Microwave Oven User Manual...
  • Page 43 Microwave Oven User Manual...
  • Page 44 867326060-C-212016 ( Subject to change without notice. )
