Page 1

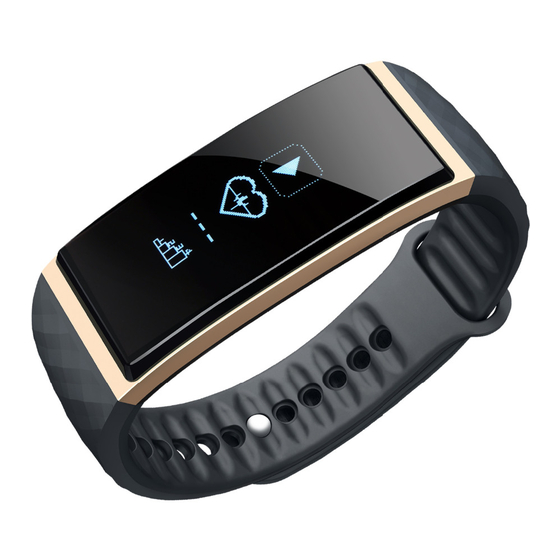

User manual Model: CUBOT S1 Brand: CUBOT...
Page 2
1. For first usage, make the thimble of the charger wire contact the bracelet end with a contact, and insert the USB into a charger, mobile phone or computer for activation. Charger wire CUBOT S1 Smart Bracelet 2. The bracelet will display the interface below after it is successfully activated...
Page 3
Ulna 2) If you intend to accurately measure your heart rate by using any S1 bracelet, you may shift the bracelet to your upper wrist, namely the place three fingers wide below your ulna.
Page 4
which affects correct heart rate signals. Touch 1.The bracelet will be lightened by touching its screen, and all functional interfaces can be viewed by sliding horizontally.
Bracelet binding and data synchronization 1. Bracelet binding, unbinding and Bluetooth disconnection 1) First bracelet binding: Enable the Bluetooth of your mobile phone to start the S1 bracelet APP; the APP will go to the exercise interface after a successful binding is...
Page 6
And a Bluetooth icon will appear on the time interface of the bracelet; 2) In case you have bound any smart bracelet and need to bind another S1 bracelet, you shall unbind other bracelet before binding any S1 bracelet. Press the button on the APP to pop up a sidebar.
Synchronize data by pulling down any place outside the running step circle Heart rate measurement 1. Wearing method and instructions 1) Wear the bracelet at the rear of the joint at the back of your wrist to make the optical sensor behind the bracelet and your skin have good and stable contact;...
Page 8
5) Your heart rate can be viewed and the heart rate monitoring function can be used in exercise mode. 2. Heart rate measurement Each S1 bracelet has two ways for measuring heart rates: real time heart rate measurement and all weather heart rate monitoring: 1) Real time heart rate measurement can be simultaneously controlled from the bracelet and the APP.
Page 9
moment, it will display real time heart rate measurement values; turn off real time measurement by clicking “Turn off measurement” on the APP; 2) All weather heart rate monitoring Enter the sidebar of the APP, select the “Device management” menu to enter the device management interface;...
Page 10
Exercise type Icon of heart rate Heart rate section Description X≦50% Warm-up 50%<X≦70% Fat burning 70%<X≦85% Heart and lung Extreme sports X>85% Resting heart rate 4. Heart rate prewarning function Enter the sidebar of the APP, select the “Smart reminder” menu to enter the smart reminder interface;...
Page 11
Exercise 1) Each S1 bracelet can automatically identify various exercise states such as walking, running, cycling and climbing stairs and record all kinds of exercise data; enter the to enter the “Exercise records”...
cycling and climbing stairs; if the bracelet is bound with the APP, you can also view real time and historical exercise data on the APP. Exercise icon It means there is Number of steps submenu Calorie Distance Exercise Stopwatch subinterface Automatic display and viewing of number of steps, calorie and distance, etc.
Page 13
previous or next song on your mobile phone. Music icon Next song Previous song UV Switch to the UV interface on the bracelet; click the UV icon to start measurement; any current UV index will be displayed by clicking the icon once. UV icon Sun protection grade Sun protection factor...
Atmospheric pressure 1) The bracelet can automatically acquire current atmospheric pressure, temperature and elevation for you to understand current geographical conditions and weather conditions so as to make your exercise plans in a more effective manner. 2) Switch to the atmospheric pressure interface on the bracelet, and it will display current atmospheric pressure, temperature and elevation.
Page 16
5. Do not expose the bracelet to any place with high moisture, extremely high or low temperature for a long time; 6. Do not use any corrosive detergent to clean your bracelet; 7. Do not use the bracelet in any environment with strong electromagnetic interference; 8.
Page 17
FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 18
-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement.
