Technical Specifications And Features - Geotab GO7 User Manual

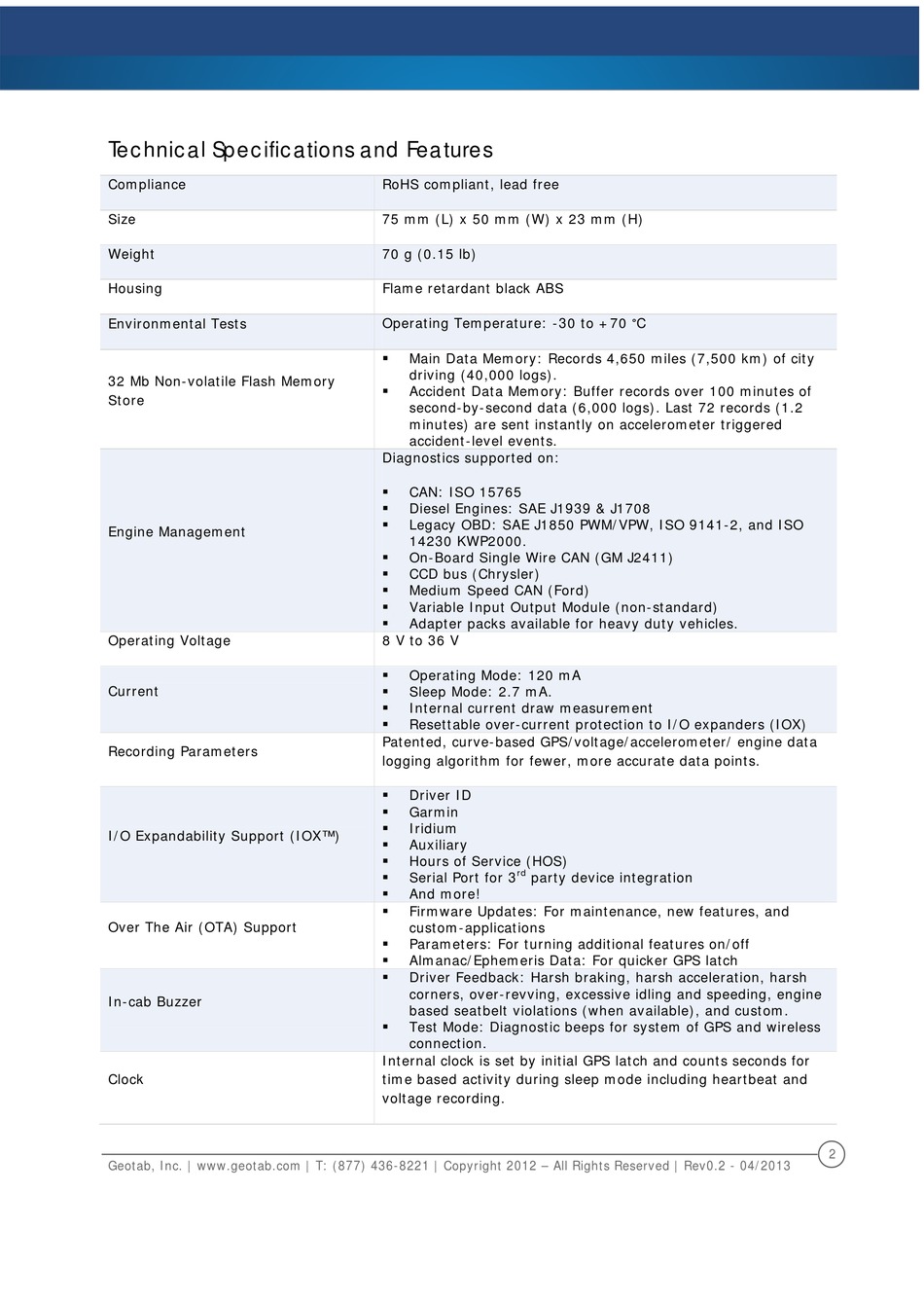

Technical Specifications and Features

Compliance
Size
Weight
Housing
Environmental Tests
32 Mb Non-volatile Flash Memory
Store
Engine Management
Operating Voltage
Current
Recording Parameters
I/O Expandability Support (IOX™)
Over The Air (OTA) Support
In-cab Buzzer
Clock
Geotab, Inc. | www.geotab.com | T: (877) 436-8221 | Copyright 2012 – All Rights Reserved | Rev0.2 - 04/2013
RoHS compliant, lead free
75 mm (L) x 50 mm (W) x 23 mm (H)
70 g (0.15 lb)
Flame retardant black ABS
Operating Temperature: -30 to +70 °C
Main Data Memory: Records 4,650 miles (7,500 km) of city

driving (40,000 logs).
Accident Data Memory: Buffer records over 100 minutes of

second-by-second data (6,000 logs). Last 72 records (1.2
minutes) are sent instantly on accelerometer triggered
accident-level events.
Diagnostics supported on:
CAN: ISO 15765

Diesel Engines: SAE J1939 & J1708

Legacy OBD: SAE J1850 PWM/VPW, ISO 9141-2, and ISO

14230 KWP2000.
On-Board Single Wire CAN (GM J2411)

CCD bus (Chrysler)

Medium Speed CAN (Ford)

Variable Input Output Module (non-standard)

Adapter packs available for heavy duty vehicles.

8 V to 36 V
Operating Mode: 120 mA

Sleep Mode: 2.7 mA.

Internal current draw measurement

Resettable over-current protection to I/O expanders (IOX)

Patented, curve-based GPS/voltage/accelerometer/ engine data
logging algorithm for fewer, more accurate data points.
Driver ID

Garmin

Iridium

Auxiliary

Hours of Service (HOS)

rd
Serial Port for 3 party device integration

And more!

Firmware Updates: For maintenance, new features, and

custom-applications
Parameters: For turning additional features on/off

Almanac/Ephemeris Data: For quicker GPS latch

Driver Feedback: Harsh braking, harsh acceleration, harsh

corners, over-revving, excessive idling and speeding, engine
based seatbelt violations (when available), and custom.
Test Mode: Diagnostic beeps for system of GPS and wireless

connection.
Internal clock is set by initial GPS latch and counts seconds for
time based activity during sleep mode including heartbeat and
voltage recording.
2
