CT104 Manual
Rugged Enclosure System
for Embedded
PC/104 Systems
Manufactured by
TRI-M ENGINEERING
Engineered Solutions for Embedded Applications
Technical Manual
P/N: CT104-MAN
Revision: 08/10/03
TRI-M ENGINEERING
1407 Kebet Way, Unit 100
Port Coquitlam, BC V3C 6L3
http://www.Tri-M.com
Tel 604.945.9565
North America 800.665.5600
Fax 604.945.9566
Canada
Advertisement
Table of Contents
Summary of Contents for TRI-M ENGINEERING CT104
- Page 1 CT104 Manual Rugged Enclosure System for Embedded PC/104 Systems Manufactured by TRI-M ENGINEERING Engineered Solutions for Embedded Applications Technical Manual P/N: CT104-MAN Revision: 08/10/03 TRI-M ENGINEERING 1407 Kebet Way, Unit 100 Port Coquitlam, BC V3C 6L3 Canada http://www.Tri-M.com Tel 604.945.9565 North America 800.665.5600...
-
Page 2: Table Of Contents
CT104 Manual 08/10/2003 CHAPTER 1: INTRODUCTION ......................4 1.1 D ....................................4 ESCRIPTION 1.2 F : .......................................5 EATURES 1.3 C : ................................6 AINER NCLUDES CHAPTER 2: CUSTOM BOARD MOUNTING ..................6 CHAPTER 3: CAN-TAINER MATERIAL SPECIFICATIONS...............7 3.1 A ..............................7 LUMINUM OUSING ATERIALS 3.2 R ..............................8... - Page 3 Tri-M Engineering reserves the right to revise this publication from time to time without obligation to notify any person of such revisions. If errors are found, please contact Tri-M Engineering at the address listed on the title page of this document. COPYRIGHT © 2000-03-22 TRI-M ENGINEERING...
-
Page 4: Chapter 1: Introduction

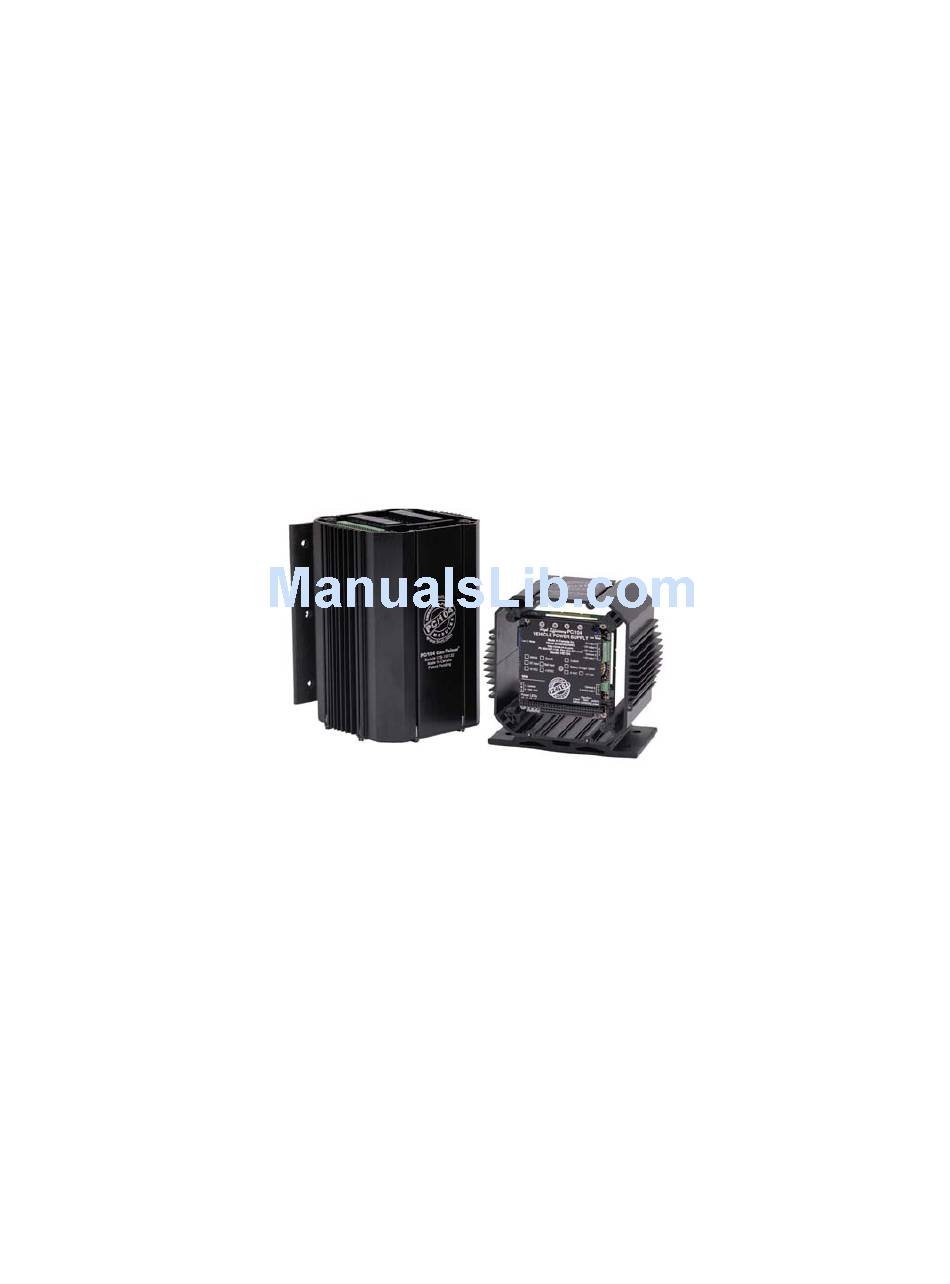

CT104 Manual 08/10/2003 CHAPTER 1: INTRODUCTION 1.1 Description Tri-M's PC/104 Can-Tainer is a new and unique design specifically intended to protect PC/104 electronics such as instrumentation, data collectors, remote terminals, SCADA packages or other solutions that operate in hostile environments. The Can-Tainer is constructed of 0.125” aluminum and can accommodate any number of PC/104 modules, their cabling and peripherals, with maximum flexibility in a minimum amount of space. -
Page 5: Features
CT104 Manual 08/10/2003 1.2 Features: Rugged anodized aluminum Securely holds PC/104 modules Internal stack vibration mount External isolating shock mount o I/O end caps o NEMA sealed with end cap gaskets o PC/104 Can-Tainer available sizes in 2", 4", 5", 6", 8", 10" and 12"... -
Page 6: Can-Tainer Kit Includes
CT104 Manual 08/10/2003 1.3 Can-Tainer Kit Includes: o 1x Can -Tainer body 2", 4", 5", 6", 8", 10" or 12" o 1x CT-EC00, Solid End cap o 1x CT-EC01, End cap with 4x DB9 and 2x DB 25 o 1x Anti-shock mounting pad... -
Page 7: Chapter 3: Can-Tainer Material Specifications
CT104 Manual 08/10/2003 For the VM method, the PC/104 stack is mounted to a vertical divider, CT6-VD00 or CT8-VD00. The vertical divider with the PC/104 stack installed is then slid into the vertical card slots in the Can-Tainer™ case. Accessory equipment, such as batteries and transmitters, may be attached to the opposite side of the vertical divider. -
Page 8: Rubber Mounting Materials
CT104 Manual 08/10/2003 3.2 Rubber Mounting Materials Compound - High Grade EPDM 80 extruded rubber Rating - ULHB94 Horizontal Burn Test, compound # 295-104-02-90 ETHYLENE PROPYLENE COPOLYMER (EPM/EPDM) Elastomers prepared from ethylene and propylene monomers , at times with a small amount of a third monomer (Etlylene Propylene Terpolymer). Excellent resistance to phosphate ester type hydraulic fluids.
