H.264 Full HD-SDI recorder with
converter
INSTRUCTION MANUAL
Safety Precautions
It is advised to read the safety precaution guide
through carefully before operating the product,
WARNING: The lightning flash with an arrowhead symbol within an
equilateral triangle is intended to alert the user to the presence of un-insulated
"dangerous voltage".
CAUTION: The exclamation point within an equilateral triangle is
intended to alert the user to presence of important operating and maintenance.
Do not power sources other than that specified and do not expose this appliance to
rain or moisture.
Do not install the product in an environment where the humidity is high.
Unless the product is waterproof or weatherproof, otherwise poor image quality
may occur.
Do not drop the product or subject them to physical shocks.
Except for vandal-proof or shockproof product, otherwise malfunctions may occur.
Never keep the product to direct strong light. It can damage the product.
Do not spill any kind of liquid on the product.
If it gets wet, wipe it dry immediately, Alcohol or beverage can contain minerals
that corrode the electronic components.
Do not install the product in extreme temperature conditions.
Use this product under conditions where temperatures are between -10∘C(14
∘F) ~50∘C.(122∘F). Be especially careful to provide ventilation when
operating under high temperature
1
to prevent any possible danger.
2
Advertisement
Table of Contents
Summary of Contents for AV Rise AR1012
-
Page 1: Safety Precautions

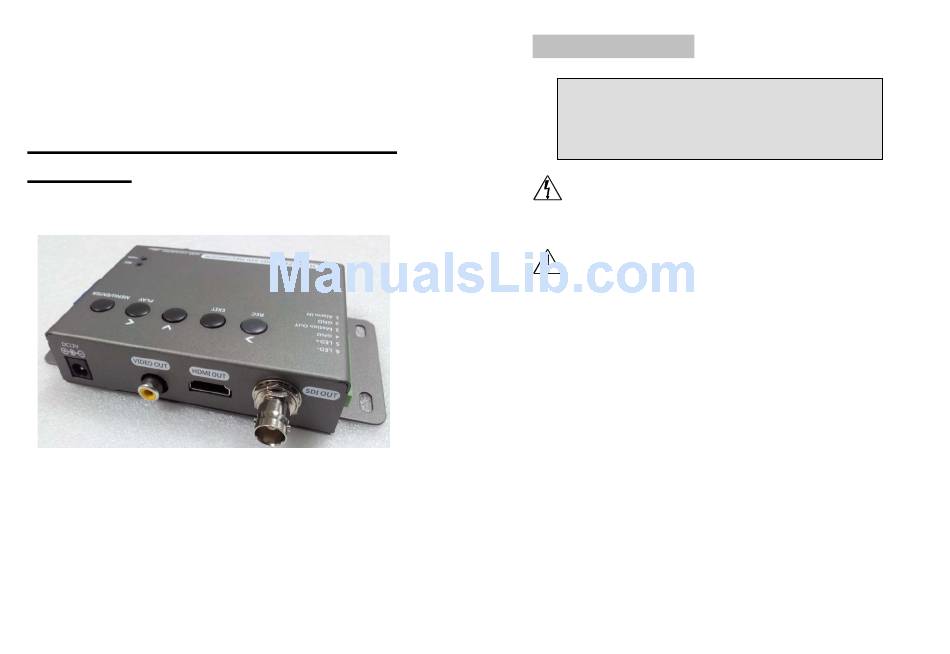

INSTRUCTION MANUAL Safety Precautions It is advised to read the safety precaution guide through carefully before operating the product, H.264 Full HD-SDI recorder with to prevent any possible danger. converter WARNING: The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage”. -
Page 2: Table Of Contents
Warning Table of Contents Warning The recorder and camera requires periodic Inspection. Components Contact an authorized technician to carry out the inspection. Installation Operation Stop using your camera when you find it malfunctioning. Button Functions If the camera emits smoke or is unusually hot for a long period, a fire may Initial Start Up be caused. -
Page 3: Components
Components Installation *Mounting with included wall mount bracket Full HD-SDI recorder Power Adapter DC 12V *SD-Card Insertions: 2 pieces of irons and screws Remote Control *HDMI out, HD-SDI out and CVBS out connections Instruction Guide... -
Page 4: Operation
Operation *HD-SDI input connections ●Button Functions Name Function Up Button Menu : Navigate up Menu : Increase value Right Button Playback : Fast forward Playback Paused : Step forward Down Button Menu : Navigate down Record Button Recording function OSD Button OSD on/off Menu/Enter Menu : Navigate enter... - Page 5 SDI out SDI 1080P/720P out for SDI monitor Operation continued -Side 3 -Side 1 Name Function HD SDI in Full HD SDI input for 1080P/720P camera Name Function -Side 4 SD card storage connection - SD card should SD card slot be inserted with the label facing the front of the device.
-
Page 6: Initial Start Up
1. To turn the device ON/OFF: -Top ▪ Make sure if recorder is power switch is at OFF state ▪Plug DC12V adaptor in DC Jack for power on ▪Insert SD card in SD slot ▪Switch power switch ON for starting running system NOTE: Each time after power-on, the system auto-detects its peripherals. -
Page 7: Record View
User will see the OSD on screen as below when user power on machine on to the SD-Card. ‧Do not withdraw the SD-Card while recording. It may destroy the stored data. ‧Power loss during recording result in incomplete videos or errors. ●Main Menu view OSD Functions Shows the current date and time. -
Page 8: Set Date/Time
Playback using a Computer Name Function All files on the SD-Card are stored in a folder named DVH264 and will have an approximate of Recorded files by date Recorded files by sorted date 3MB~100MB, and will be ordered chronologically. These files can be viewed with Microsoft All files by date Total recorded files by date Media Player or DivX Player. -
Page 9: Set Motion Detection
‧Date Format : Here you can change the way the date is displayed ‧ADD ALL : Here you can activate all cells at once. ‧Year/Month/Date/Time Adjustment: Here you can change the date and time. ‧DST : It is for day time saving (Default is OFF) ]button and system will enter SET MD SENSITIVITY: Under “Set Motion Detect”, Press[ ●Set Motion Detect... -
Page 10: Schedule Record
Schedule Setup Manual Record Function Under the schedule record, Press [ ]button and system will enter as below OSD: Set the current record resolution. There are two kinds of resolution to be selected : 1920*1080P and 1280*720P Set the recorded frame rates : 1080P : 1,4,10,15,20 and 25 fps 720P : 1,4,10,15,20,25 and 30 fps Set recorded video quality : High, Normal and Basic... -
Page 11: Sd Card Options
●SD Card Options Event Record Function Showing SD card information and format it. Video Size :Set the recorded frame rates for Motion and Alarm in mode : 1080P or 720P Frame Rate : Set different frame per second for Motion and Alarm in mode : 1080P : 1,4,10,15,20 and 25 fps 720P : 1,4,10,15,20,25 and 30fps... -
Page 12: Power On Setup
Language : show “English” or “Japanese” version Version : working software version SD full : show “loop’ or “stop’ after writing data full in SD card Manual status : 1280*720 30 FPS and high quality recording Motion status : 1280*720 30 FPS and high quality recording Alarm status : 1280*720 30 FPS and high quality recording Continue status : 1280*720 30 FPS and high quality recording ●Power On Setup...
