Linear Range - TV Scenarios
TV screens above the linear range of fireplaces can be achieved in a number of ways. It is largely not
recommended to position a TV directly above any of the Lopi linear fireplaces due to the large amount of
radiant and convection heat produced, however it can be achieved in a number of suggested ways.
Building a TV recess/niche directly above the fireplace is restricted by the minimum enclosure height of
each fireplace so as an alternative a number of proposed set-up options to protect the TV are shown below.

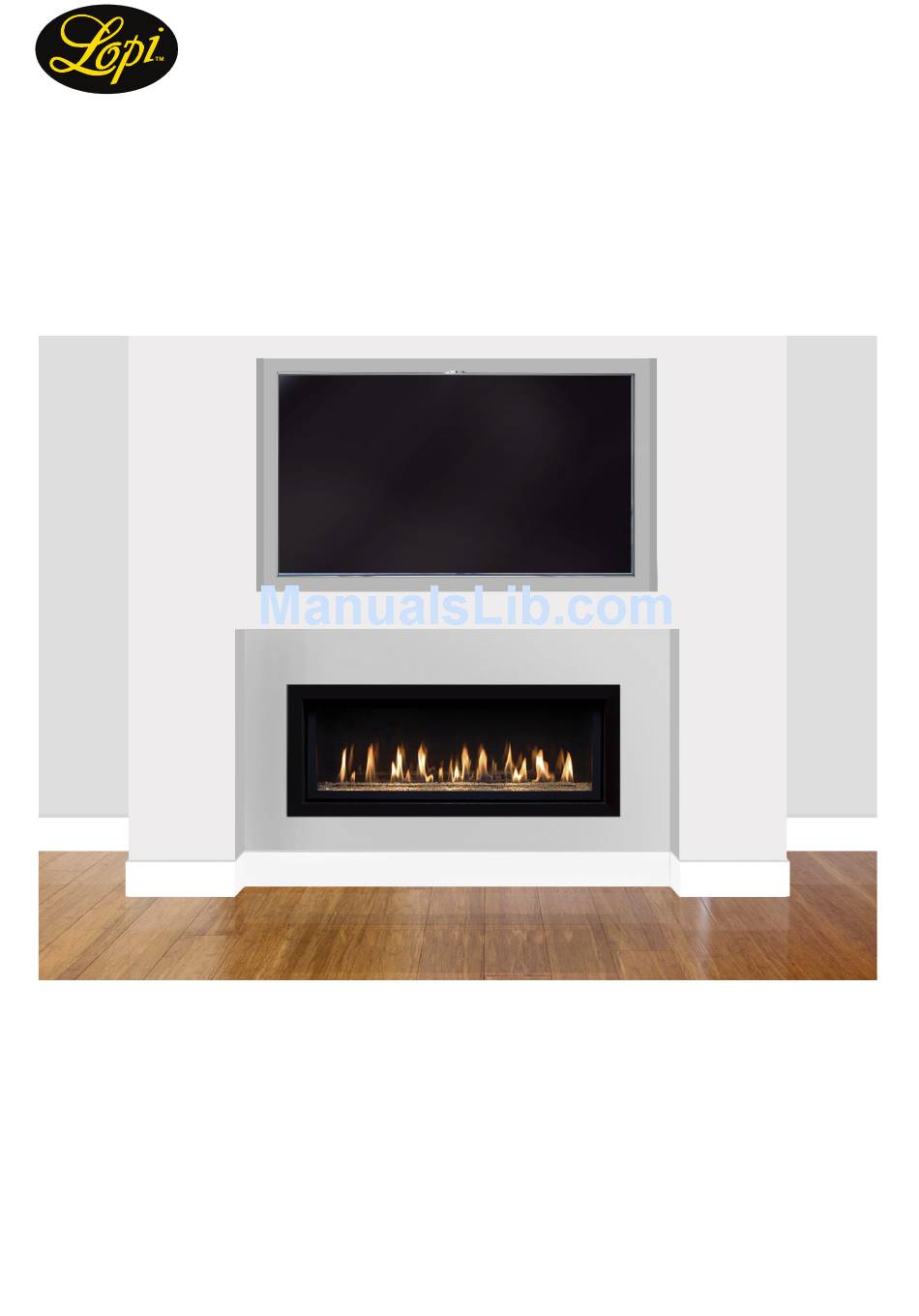

Scenario 1 - Double Recess
In this scenario a wall is built out from the face of the fireplace by 100mm in depth and the TV recess is
created within the built out section above the fireplace. This is achieved by using the minimum mantel
clearances shown in the installation manual of each fireplace.
Example shows the 4415 HO GS2
Dimensions of this example found on page 5
Advertisement
Table of Contents
Summary of Contents for Dragon Wholesaling Lopi 4415
- Page 1 Linear Range - TV Scenarios TV screens above the linear range of fireplaces can be achieved in a number of ways. It is largely not recommended to position a TV directly above any of the Lopi linear fireplaces due to the large amount of radiant and convection heat produced, however it can be achieved in a number of suggested ways.
- Page 2 Linear Range - TV Scenarios Scenario 2 - Shelf Above In this scenario the fireplace is installed flush with the wall and a deflection shelf is absorbing and deflecting the heat from the fireplace away from the face of the TV above. In this example it is assumed that the shelf above is timber and therefore combustible.
- Page 3 Linear Range - TV Scenarios Scenario 3 - Wrap Around Wall / Shelf / Mantel In this scenario the wall is partly built out from the face of the fireplace by 100mm in depth to create a shelf effect. This wall in then extended down creating a wrap around shelf. This example is achieved by using mantel clearances shown in the installation manual of each fireplace.
- Page 4 Scenario 1 - Double Recess Min 25mm Air Gap Behind TV 77mm (Typically provided by wall mount) Min 50mm From Front of TV Minimum Dimensions = Firebox Lopi 3615 Lopi 4415 Lopi 6015 = 9mm Non- 1067mm* 1067mm* 1067mm* Combustible FC Sheet/tile 200mm...
- Page 5 Min 25mm Air Gap Behind TV (Typically provided by wall mount) 25mm Min 50mm TV to front of shelf Minimum Dimensions = Firebox Lopi 3615 Lopi 4415 Lopi 6015 = 9mm Non- 1067mm* 1067mm* 1067mm* Combustible FC Sheet/tile 200mm 200mm...
- Page 6 Scenario 3 - Wrap Around Wall / Shelf / Mantel Min 25mm Air Gap Behind TV (Typically provided by wall mount) 25mm Min 50mm From Front of TV Minimum Dimensions = Firebox Lopi 3615 Lopi 4415 Lopi 6015 = 9mm Non- 1067mm* 1067mm* 1067mm* Combustible FC Sheet/tile 200mm...
