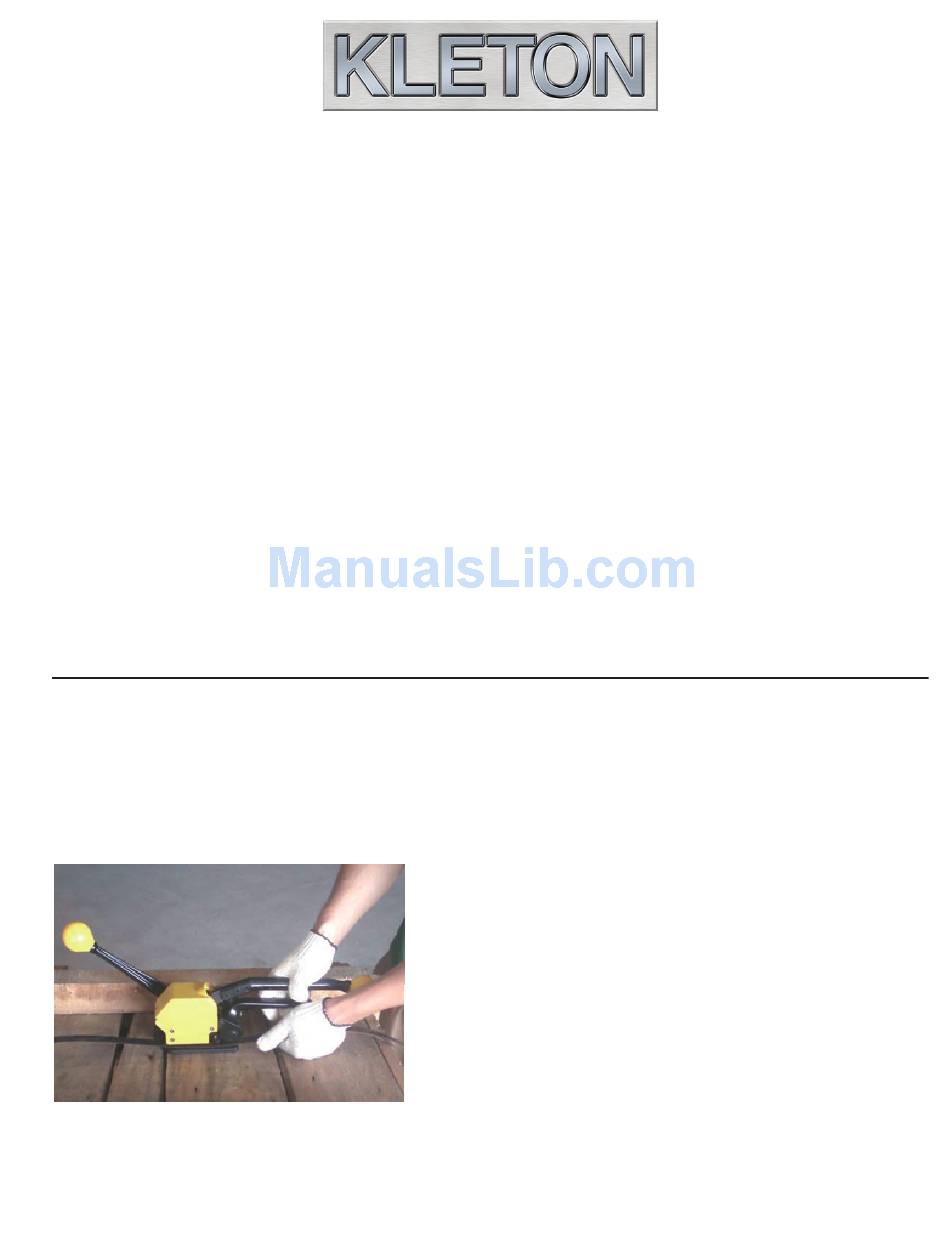

PF705 Manual Sealless Steel Strapping Tool

SPECIFICATIONS

1. Strap Dimensions: Widths: 13mm (1/2"), 16mm (5/8"), 19mm (3/4") Thickness : 0.38mm (.015") – 0.70mm (0.27")
2. Weight: 3.5 kg

SAFETY INSTRUCTIONS

1. Always read operating instructions before using the tool.
2. Always wear eye, face and hand protection when operating the tool.
3. Keep hands/fingers or other parts of the body away from areas that can be pinched or cut.

MAINTENANCE INSTRUCTIONS

1. Clean this tool periodically with compressed air to remove any dust or dirt. The punch (#10), dies (#21 and #22),
gripper (#8) and feedwheel (#59) must be cleaned regularly.
2. Apply light machine oil to all moving parts.
3. Check tool regularly for broken or worn parts.
4. Use the original replacement parts to ensure tool reliability.

OPERATING INSTRUCTIONS

Prior to operation, make sure the front strap stop (#13), side strap stop (#91 for 16mm and 19mm, #92 for 13mm and
19mm), and rear strap stop (#36 for 16mm and 19mm, #37 for 13mm and 16mm) are equivalent to your strap width.
(See ADJUSTMENTS-TO ADJUST STRAP STOPS for installation of strap stops)
1. Feed the strapping around the
package and hold in place with left
hand. The end of strap is underneath.
9422-H0317
