Tectonic PL-11 Quick Start Manual

Speakers, cross-over and amps
Hide thumbs Also See for PL-11:
1
2
3
4

Advertisement

Quick Links

Download this manual
Subwoofer
Sub
LP 100Hz
18dB/Oct Butt
variable delay
Parametric EQ Settings:
1 - 225Hz, -4dB, Q 3.79, B/W 0.38
2 - 400Hz, -2dB, Q 4.0, B/W 0.36
3 - 1.45kHz, -3dB, Q 2.73, B/W 0.525
4 - 8.61kHz, -3dB, Q7.63, B/W 0.18
Subwoofer
Sub
LP 100Hz
18dB/Oct Butt
variable delay
Parametric EQ Settings:
1 - 225Hz, -4dB, Q 3.79, B/W 0.38
2 - 400Hz, -2dB, Q 4.0, B/W 0.36
3 - 1.45kHz, -3dB, Q 2.73, B/W 0.525
4 - 8.61kHz, -3dB, Q7.63, B/W 0.18

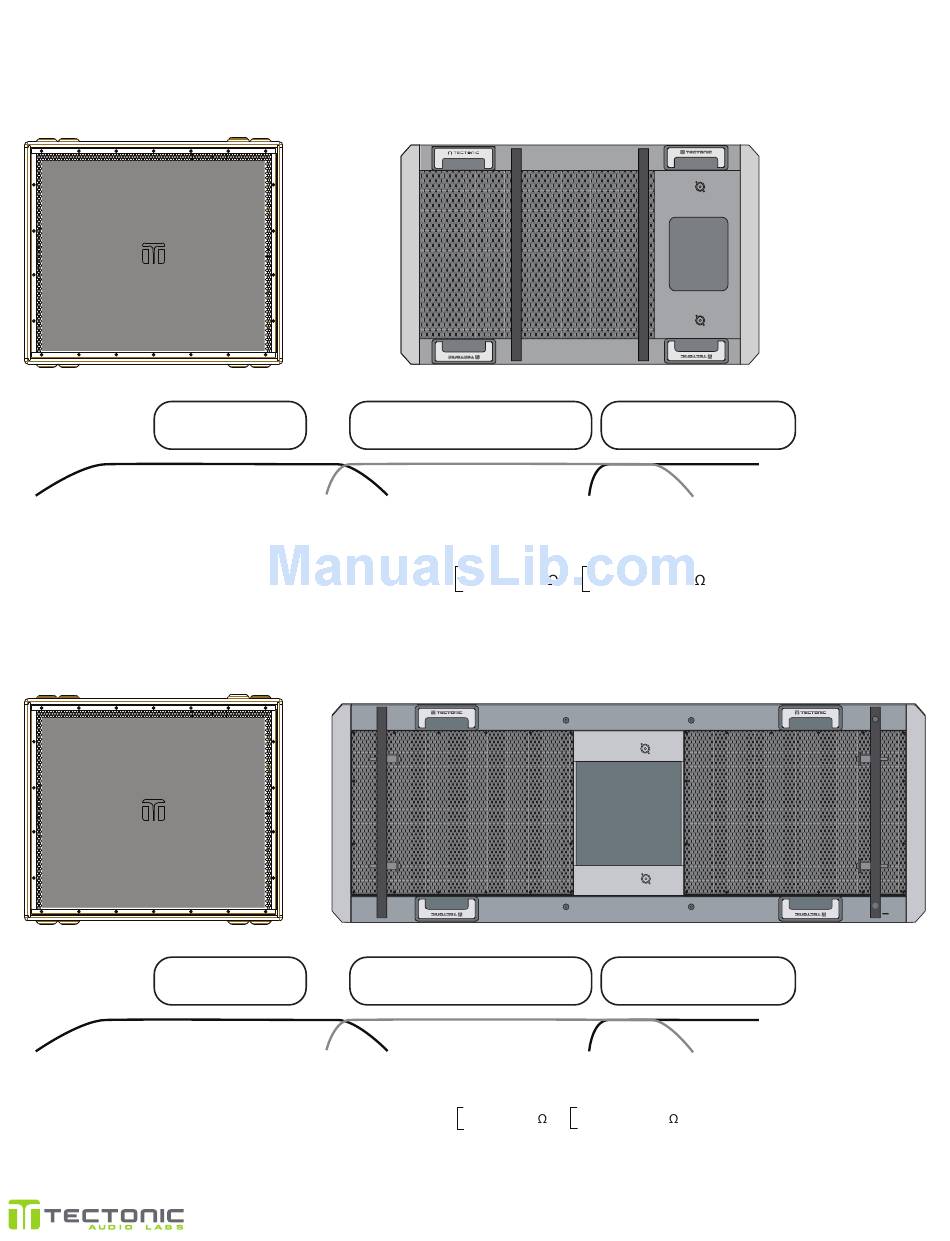

Quick Start Guide

Speakers, Cross-over and Amps
PL-11
HP 100Hz
DML
18dB/Oct Butt
~0.13ms delay
HP 100Hz
DML
18dB/Oct Butt
~0.13ms delay
+(425) 686-7640
(One ribbon, one DML)
Weight - 68 lbs • 30.8 kg
LP 16kHz
HP 7kHz
12dB Oct Butt
18dB/Oct Butt
PIN OUTS
1+
2+
DML 8
Ribbon 12
1-
2-
400W RMS
240W RMS
PL-12
(One ribbon, two DMLs)
Weight - 98 lbs • 45 kg
LP 16kHz
HP 7kHz
12dB Oct Butt
18dB/Oct Butt
PIN OUTS
1+
2+
DML 4
Ribbon 12
1-
2-
800W RMS
240W RMS
Ribbon
gain -2dB
Ribbon
gain -2dB
www.tectonicaudiolabs.com
