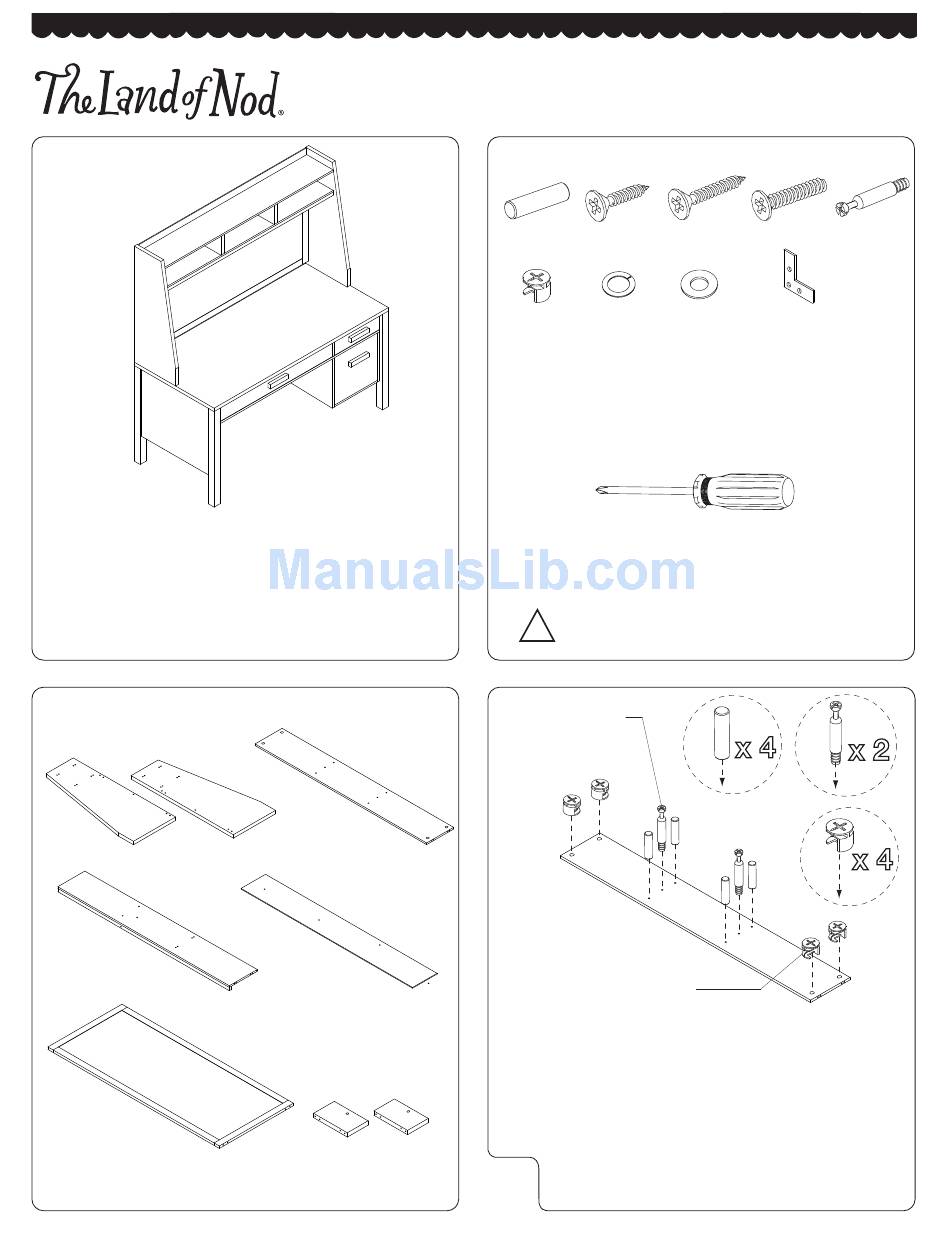

Thank you for purchasing the Oak Park Hutch. This
page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.

COMPONENTS

2 - side panels
(1 left, 1 right)
1 - shelf
1 - bulletin
board
Made in Vietnam - r05
1 - top panel
1 - back
panel
2 - partitions
(1 left, 1 right)
Customer Service 800.933.9904 | Latest instructions available on www.landofnod.com
ASSEMBLY HARDW ARE
26 - wood
6 - small
4 - large
dowels
screws
screws
17 - cams
4 - spring
washers
Missing hardware? Please call
NOTE: Contains small parts. Keep away from small children.
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
!
WARNING: Adult Assembly Required
NOTE: Do not over
tighten the cam
screws
B
top panel
NOTE: Make sure arrow
on cam points toward
nearest edge with holes
A) Insert 4 wood dowels into top panel as shown.
B) With the assistance of another adult, carefully
place top panel onto clean, padded surface. Insert
2 cam screws into top panel as shown. Secure,
but do not over tighten, cam screws with a
phillips head screwdriver.
C) Insert 4 cams into top panel as shown. Make
1
sure arrows on each cam points toward nearest
edge with holes.
OAK PARK
HUTCH
17 - cam
4 - bolts
screws
4 - flat
2 - connecting
washers
brackets
for replacements.
800.933.9904
A
B
C
A
C
Page 1 of 5
