FSAM50SM60A
Motion SPM
Features
• UL Certified No. E209204 (UL1557)
• 600 V - 50 A 3-Phase IGBT Inverter with Integral
Gate Drivers and Protection
• Low-Loss, Short-Circuit Rated IGBTs
• Very Low Thermal Resistance Using Al
Substrate
• Separate Open-Emitter Pins from Low Side IGBTs
for Three-Phase Current Sensing
• Single-Grounded Power Supply
• Optimized for 5 kHz Switching Frequency
• Built-in
NTC
Thermistor
Monitoring
• Inverter Power Rating of 4.0 kW / 100~253 VAC
• Adjustable Current Protection Level via Selection
of Sense-IGBT Emitter's External Rs
• Isolation Rating: 2500 V
Applications
Motion Control - Home Appliance / Industrial Motor
Resource
AN-9043 - Motion SPM® 2 Series User's Guide
Package Marking and Ordering Information
Device
FSAM50SM60A
©2006 Fairchild Semiconductor Corporation
FSAM50SM60A Rev. C4
®
2 Series
O
2
3
for
Temperature
/ min.
rms
Device Marking
FSAM50SM60A

General Description

FSAM50SM60A is a Motion SPM
providing a fully-featured, high-performance inverter
stage for AC Induction, BLDC, and PMSM motors.
These modules integrate optimized gate drive of
the built-in IGBTs to minimize EMI and losses, while
DBC
also
providing multiple on-module
features including under-voltage lockouts, over-
current shutdown, thermal monitoring, and fault
reporting. The built-in, high-speed HVIC requires
only a single supply voltage and translates the
incoming logic-level gate inputs to the high-voltage,
high-current drive signals required to properly drive
the module's internal IGBTs.
IGBT terminals are available for each phase to
support the widest variety of control algorithms.

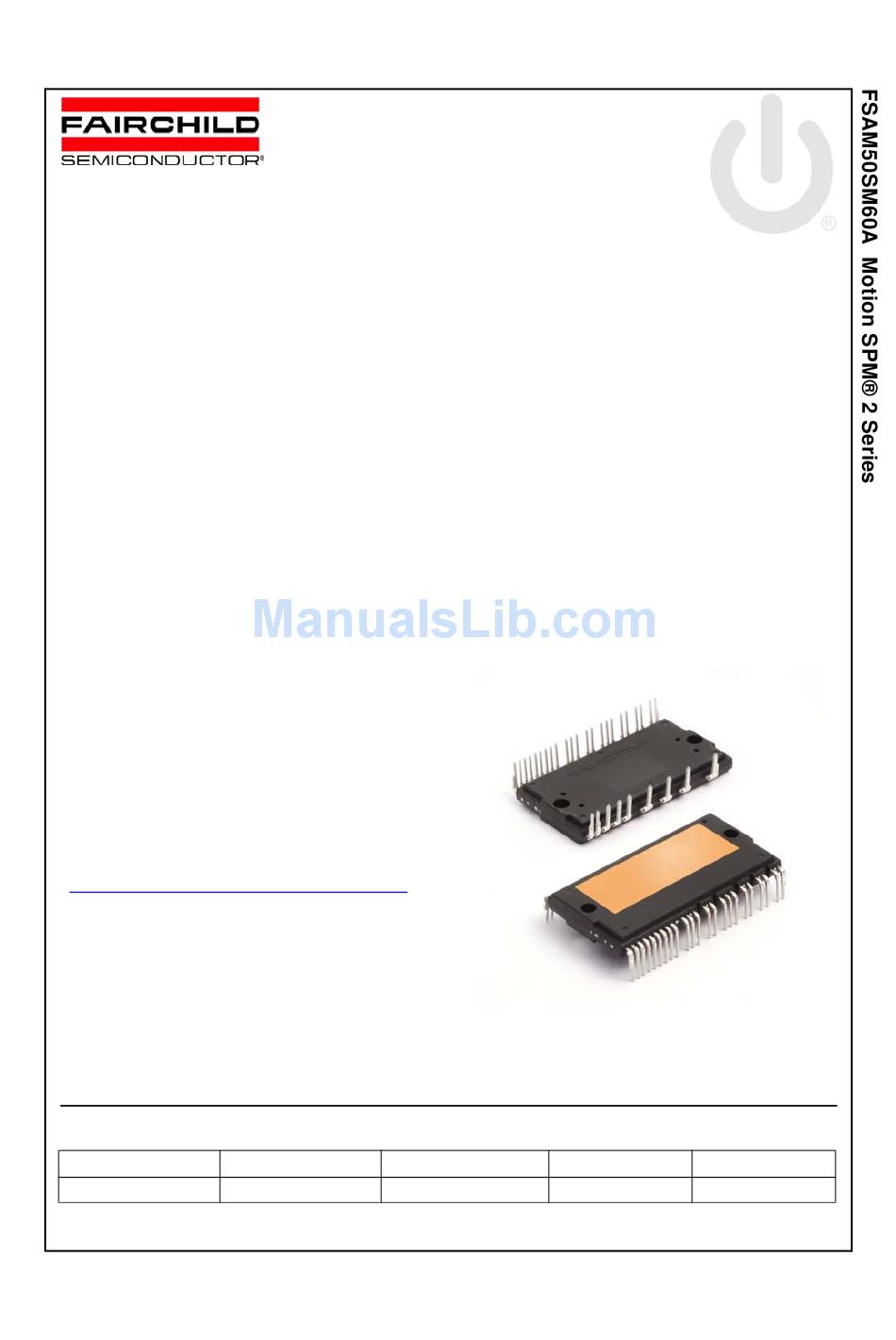

Figure 1. Package Overview
Package
S32CA-032
1
January 2014
®
Separate negative
Packing Type
Quantity
Rail
www.fairchildsemi.com
2 module
protection
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSAM50SM60A and is the answer not in the manual?

Questions and answers

Summary of Contents for Fairchild FSAM50SM60A

  • Page 1: General Description

    2 Series Features General Description • UL Certified No. E209204 (UL1557) ® FSAM50SM60A is a Motion SPM 2 module • 600 V - 50 A 3-Phase IGBT Inverter with Integral providing a fully-featured, high-performance inverter Gate Drivers and Protection stage for AC Induction, BLDC, and PMSM motors.
  • Page 2: Pin Configuration

    DBC Substrate DBC Substrate B(V) B(V) (19)V (19)V S(V) S(V) (20)IN (20)IN (32)P (32)P (WH) (WH) (21)V (21)V CC(WH) CC(WH) (22)V (22)V B(W) B(W) (23)V (23)V S(W) S(W) Figure 2. Top View ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 3: Pin Descriptions

    Series Resistor for the Use of Thermistor (Temperature Detection) Negative DC-Link Input Terminal for U-Phase Negative DC-Link Input Terminal for V-Phase Negative DC-Link Input Terminal for W-Phase Output for U-Phase Output for V-Phase Output for W-Phase Positive DC-Link Input ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 4 2. Inverter power side is composed of four inverter DC-link input pins and three inverter output pins. 3. Inverter high-side is composed of three normal-IGBTs including freewheeling diodes and three drive ICs for each IGBT. ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com...
  • Page 5: Absolute Maximum Ratings

    Thermal Grease Applied (2nd Note 3) 2nd Notes: 2. For the measurement point of case temperature(T ), please refer to Figure 2. 3. The thickness of thermal grease should not be more than 100 m. ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 6: Electrical Characteristics

    IN(ON) 10% I 10% I 10% V 10% V 10% V 10% V 10% I 10% I IN(OFF) IN(OFF) (a) Turn-on (a) Turn-on (b) Turn-off (b) Turn-off Figure 4. Switching Time Definition ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 7 To know case temperature (T ), please make the experiment considering your application. R-T Curve ℃ Temperature T Figure 5. R-T Curve of The Built-in Thermistor ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 8: Recommended Operating Conditions

    , IN , IN - COM (UL) (VL) (WL) 2nd Notes: ® 8. Motion SPM 2 product might not make response if the PW is less than the recommended minimum value. IN(OFF) ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 9 10.Avoid one side tightening stress. Figure 8 shows the recommended torque order for mounting screws. Uneven mounting can cause the Motion SPM 2 package DBC substrate to be damaged. Figure 8. Mounting Screws Torque Order (1  2) ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 10 P2 : Under-voltage detection. P3 : IGBT gate interrupt. P4 : No fault signal. P5 : Under-voltage reset. P6 : Normal operation: IGBT ON and conducting current. Figure 10. Under-Voltage Protection (High-Side) ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 11: Output Current

    Motion SPM 2 product input is recommended in order to prevent input/output signals’ oscillation and it should be as close as possible to each of Motion SPM 2 Product pins. ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 12 - COM should be over 1 F and mounted as close to the pins of the Motion SPM ® 6. The ceramic capacitor placed between V 2 product as possible. ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
  • Page 13 11. Relays are used at almost every systems of electrical equipments of home appliances. In these cases, there should be sufficient distance between the MCU and the relays. It is recommended that the distance be 5 cm at least. ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com...
  • Page 14 Please note the revision and/or data on the drawing and contact a FairchildSemiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide therm and conditions, specifically the the warranty therein, which covers Fairchild products.
  • Page 15 ©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FSAM50SM60A Rev. C4...
