Summary of Contents for Evluma ConnectLED

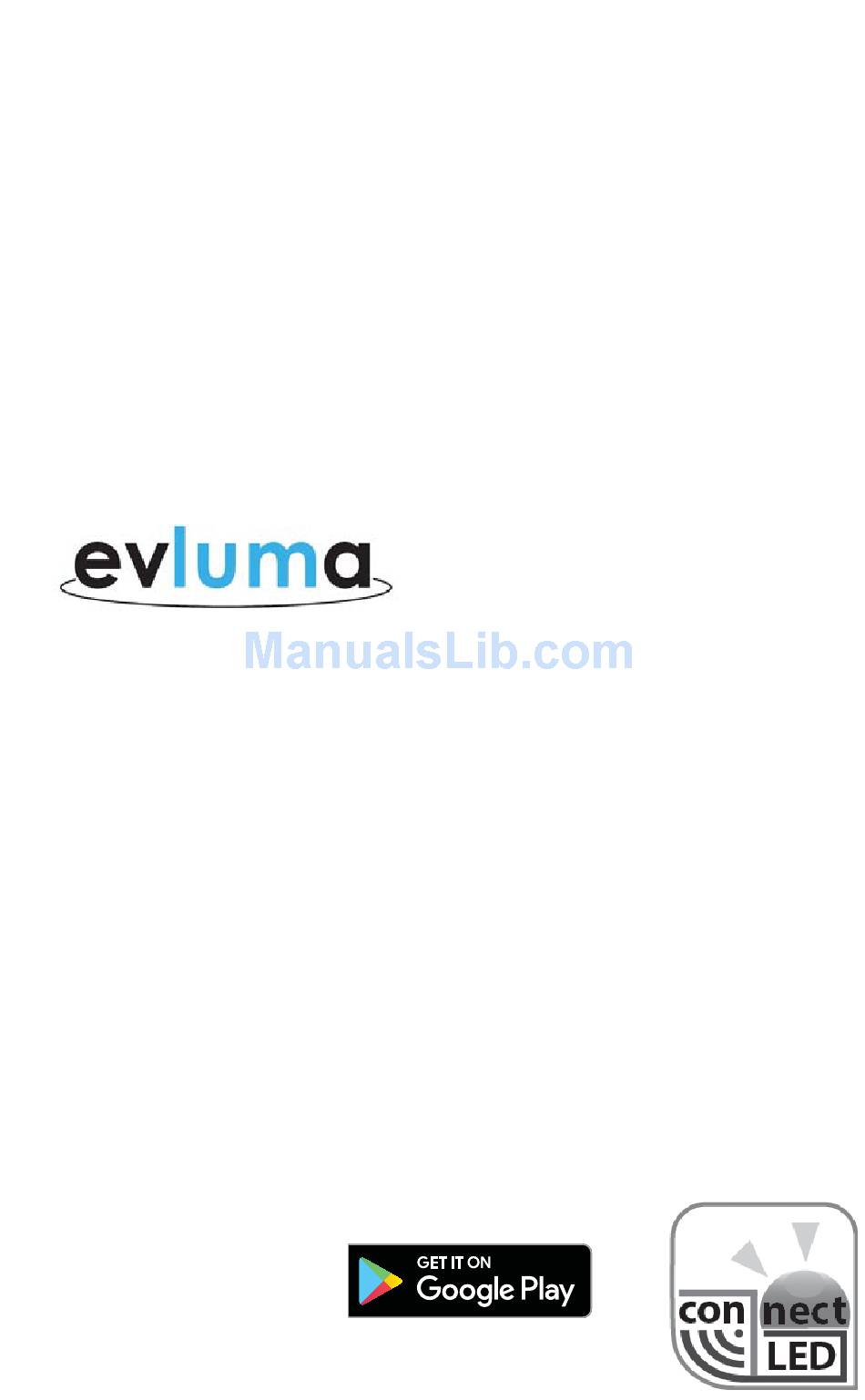

- Page 1 ConnectLED Reference Guide Android Tablet v2.2 PN 100478-001 Rev A02 © Evluma...
-
Page 2: Table Of Contents
Upgrading v2.1 to v2.2 Android Tablet Overview & General Operation To Turn on the Tablet... Navigation Bar... To Turn Off the Tablet... To Initialize ConnectLED GPS ... To Connect to a WiFi Source... To Start Google Maps... To Turn Off ConnectLED... System Updates... - Page 3 System Info ... Sign Out... View Event History Pause/Resume... Save/Send... ConnectLED.csv... Send to Evluma Common Tasks How to Connect to WiFi... How to Disconnect AreaMax or OmniMax... 13 How to Connect AreaMax or OmniMax... How to Set the Maximum Intensity ...
-
Page 5: Introduction
Samsung Galaxy Tab S2 (8”) Asus ZenPad (7”) Evluma lamps use a Bluetooth low energy profi le and not all tablets are guaranteed to be confi gured to work with all Bluetooth profi les. Tablets provided by Evluma during the 2016 v2.1 release are compatible with v2.2. -
Page 6: New Site License
The number of BASIC and ENTERPRISE User types is indicated at the time the Site license is ordered from Evluma. The Company IT Admin then assigns the pre-ordered license types to the Users in the ConnectLED portal. To set their password, Users follow instructions sent in an email from “NoReply@ evluma.com. -
Page 7: Android Tablet Overview & General Operation
Android Tablet Overview & General Operation ConnectLED Android v2.2 works on Android tablets with a 7 inch or larger screen. Charge the tablet and connect to the Internet prior to use. See the user guide from the tablet manufacturer for more specifi c instructions. -
Page 8: To Connect To A Wifi Source
Should there be any updates issued for ConnectLED v2.2 they will be delivered to your device directly through the Play Store. You will receive an alert message that an update is available or that the app was updated. Evluma may issue updates to add new features or improve functionality. -
Page 9: Connectled Operation Overview
Dimming and Maximum Brightness. A PROMO license provides full functionality to a restricted number of lamps. Evluma is the IT Admin for all PROMO licenses as a PROMO license is limited to the individual performing the evaluation and may be installed on a personal device. -
Page 10: Functionality Overview
If your license should expire, you will automatically receive an optional 1-day extension. This one time extension gives you the option to contact Evluma when you return to the offi ce without interrupting the current project or workday. Functionality Overview Start the application, log on and fi... -
Page 11: Fautlcast
RSSI number the closer the lamp (-60db is closer than -80db). Note Name: Evluma AMAX will appear for AreaMax lamps with an internal version earlier than FW14. Fautlcast™ The RSSI message can also be replaced by an error or status message from the lamp. -
Page 12: The Confi G Screen - Basic License
Lamp Owner The Lamp Owner fi eld displays the name of the ConnectLED Site licensee holder. ConnectLED writes the Lamp Owner to the Evluma lamp once a User has connected to it. Field is read only. The Confi g screen... -
Page 13: Model
Model ConnectLED works with both the AreaMax and the OmniMax. This fi eld indicates the Evluma product model. Field is read only. Serial Number This is the serial number of the connected lamp: AreaMax, or OmniMax. Rev A12 AreaMax and later will populate this fi eld with a unique serial number, as will Rev A07 and earlier. -
Page 14: Time Zone
Google Maps, or otherwise directed by Evluma Technical Support. The time zone is used by the dimming schedule. If the time zone is incorrect, the dimming... -
Page 15: Remove All Dimming
FIND LAMPS Note: To return to the screen at any time, touch the ConnectLED icon on the upper left. Profi le Select Profi le to display User Info and the Access Level of the User, including the limitations on lamp access, the customer ownership identifi... -
Page 16: View Event History
Pause/Resume the number of events in the history of the lamp. Touch at any time during retrieval to pause or resume the list of events. Once ConnectLED Done retrieving lamp events you may Save the event history and/or Send to Evluma. ConnectLED will prompt you for an RMA number prior to sending the event history to Evluma. -
Page 17: Common Tasks
Evluma. Event History The AreaMax event history is stored in a text (.txt) fi le that may be sent to Evluma for analysis if there are conditions to diagnose. This fi le is unique to the lamp to which you are currently connected. -
Page 18: How To Connect Areamax Or Omnimax
You may wish to connect or re-connect an AreaMax or OmniMax to service if it has previously been disconnected. 1. Tap the logo on the Home screen to launch ConnectLED. Log on. 2. ConnectLED will automatically search for lamps. Any lamp found within range will be displayed. -
Page 19: How To Set The Maximum Intensity
How to Set the Maximum Intensity Confi g screen (ENTERPRISE For details on the Maximum Intensity setting see and PROMO licenses only), Maximum Intensity. 1. View Lamp Confi guration. Midway down the screen is a blue slider to set Maximum Intensity. By default, this is set to 100. 2. -
Page 20: Troubleshooting
To turn off ConnectLED, touch the Active Programs List button and swipe the ConnectLED application to the right. You may also tap the Clear All button. Tap the ConnectLED logo on the Home screen to start ConnectLED again. - Page 21 SB20170606.1 for more information. Legacy Lamp Error “The selected lamp is a legacy lamp. ConnectLED app cannot write to this lamp.” ConnectLED Android is only able to read, and not write to, AreaMax with fi rmware A07 and earlier. If you must write to a legacy lamp please contact Evluma Customer Support.
-
Page 22: For More Information
Evluma salesperson, or call: 425-336-5800, Option 2. http://www.evluma.com/contact.html Warranty: V2.1 tablets provisioned by Evluma warrantied for 6 months from the date of shipment. Evluma, AreaMax, OmniMax, ConnectLED, FaultCast and Photocontrol Failsafe are trademarks of Express Imaging Systems, LLC. All rights reserved.
