Summary of Contents for Xeline Xup XM100-01-U

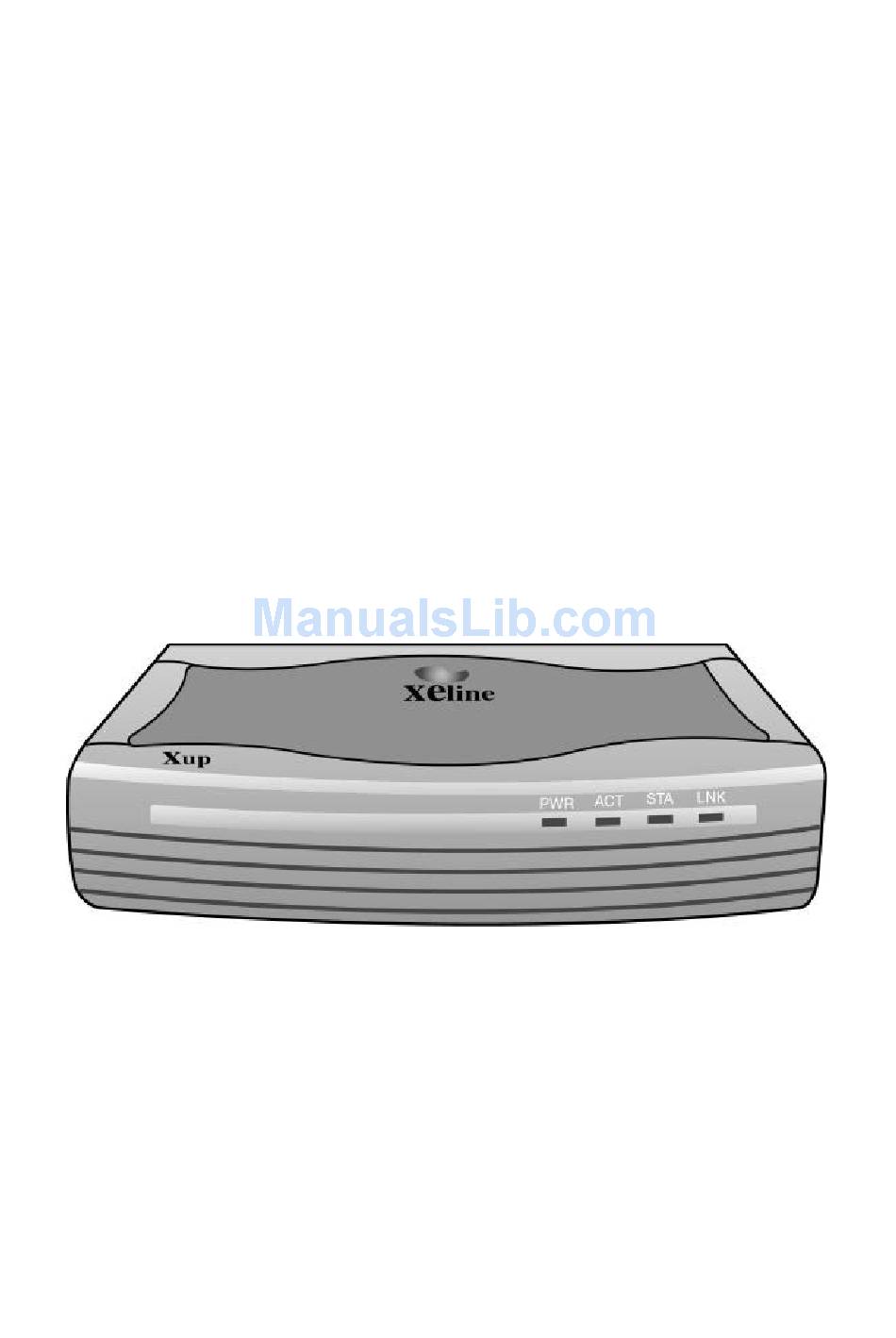

- Page 1 Xup XM100-01-U User’s Manual Xeline Co., Ltd.
- Page 2 Telephone: 822) 598-0980 Web Site: http://www. xeline.com Trademarks ※Xup XM100-01-U is a registered trademark of Xeline Co., Ltd. ※Widows98/Windows N/T is a registered trademark of Microsoft Corporation. ※MS-Windows is a registered trademark of Microsoft Corporation. ※General Notice: Other brand and product names used herein are for identification purposes...
-
Page 3: Table Of Contents
……………………………………… …………… Product Outfit ………………………………………………… ………… Specifications 2. Installation Guide …………………………………………………… 2.1 Installation …………………………………………………… ……… ……………………………… Set up Xup XM100-01-U ……………………………………… Installation of Xup XM100-01-U Driver ………………………..…… TCP/IP setting 3. Useful Notes ……………………………………………………… 3.1 Useful notes ……………………………………………………… ……………………………………………………… Cautions ………………………………………………………... -
Page 4: Product Introduction
1. Product Introduction 1.1 Product Characteristics Xup XM100-01-U is enabling the data transmission over powerline. As powerline communications technology offers network by utilizing existing power lines at home or small office, therefore no additional cost is incurred for additional wiring. Xup brings networking solution with ease of installation and no special networking configuration work. -
Page 5: Product Details
Product Details Product Outfit Front Turned on when power is connected and power switch is on. Blinks when communication is in normal operation. Turned on when power is connected, and initialization is properly completed. Turned on when connection to PC is properly done. Rear Power Inlet Connection point to connect power cable. -
Page 6: Specifications
FEC OFF/ON Mode to stabilize the communications status and increase the reliability though possibly yield lower data rate. (Set as “OFF” when shipped) Hi-Z OFF/ON Mode to improve the receptive sensitivity of Xup. Set as “OFF” when the power line environment has many noise sources. (Set as “ON”... -
Page 7: Installation Guide
Turn off the power of PC. Ensure the PC has USB Port available. Connect USB Cable to PC. Connect Power Cable to Xup XM100-01-U. Connect Xup XM100-01-U and PC with USB Cable. Ensure all the connections made as figures below. -
Page 8: Installation Of Xup Xm100-01-U Driver
Installation of Xup XM100-01-U Driver Turn on your PC and Xup XM100-01-U . Find the new device and display the ”ADMtek 10/100 USB MAC ” window to install the hardware device driver. (Based on Windows98) Continue and click [Next>]. The Add New Hardware Wizard will search for the driver. Click [Next>]. - Page 9 Specify the location to install the control device driver. Select Floppy disk drives and click [Next>]. Find ”ADMtek AN986 US B 10/100 MAC ” from the floppy disk to bring up the above screen. Continue and click [Next>].
- Page 10 10/100 MAC ” hardware will be finished. Click [Finish>] and complete the installation. Installation of the Xup XM100-01-U driver is now finished. Once the hardware installation has been completed, click Control Panelà Device Managerà Network Adapters and check if it is set up to display ”ADMtek AN986 USB 10/100 MAC.”...
-
Page 11: Tcp/Ip Setting
TCP/IP setting Go to Network Resources TCP/IP ADMtek AN 986 USB 10/100 MAC and adjust TCP/IP Settings. If “TCP/IP ADMtek AN 986 USB 10/100 MAC” is not shown in the network components, “ TCP/IP PROTOCOL” should be added. Click [Add..] button, then you will see the following screen. Select [Protocol], then click [Add] button (A). - Page 12 Select [TCP/IP] in right side, then click [OK] button. Select TCP/IP -> ADMtek AN986 USB 10/100 MAC, and click [Properties] button. :If you are setting Home networking or Internet sharing, set as follows: In the following screen, select [Specify an IP address] and input IP address. :IP address : 192.168.0.1...
- Page 13 Subnet Mask: 255.255.255.0 In the following screen, input 192.168.0.1 at New Gateway, then click [Add] button.
- Page 14 When you use DNS already, keep the existing DNS as is. If not, check on [Disable DNS].
-
Page 15: Useful Notes
192.168.0.1.(For example 192.168.0.2) The set up for GATEWAY/DNS is the same. Operations When PC is re-booted, all PC networking environment for users to enjoy the network communications over power line with Xup XM100-01-U is set. 3 Useful Notes 3.1 Useful notes Cautions Read User’s manual carefully... -
Page 16: Troubleshooting
Date of Manufacturing Warranty Period Warranty Period Xeline warrants that Xup XM100-01-U, if properly used and installed, will be free from defects in material and workmanship for a period of one (1) year after the date Xup XM100-01-U was purchased.
