Summary of Contents for OP Link OPU2120
- Page 1 User Manual –OPU2120 OPU2120 User Manual Version 1.01 Apr, 2013...
-
Page 2: Product Introduction

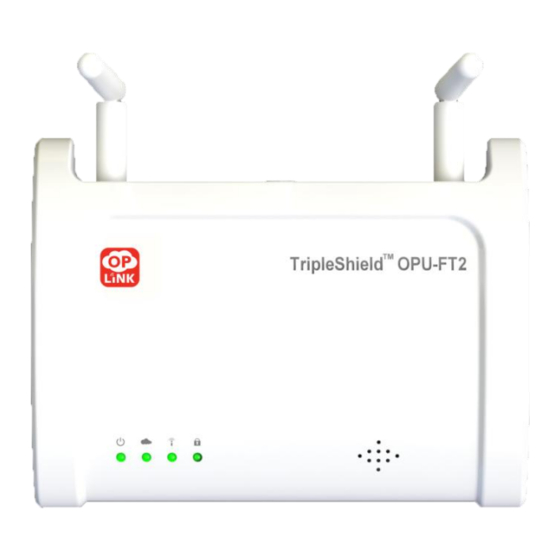

User Manual –OPU2120 I. Product Introduction OPU2120 is a WIFI & 433MHZ RF integrated access controller, using for receiving and transmitting data from its matched devices. Matched devices are products which can transfer control signal remotely, such as alarm systems, door openers, remote switches etc. - Page 3 User Manual –OPU2120 II. OPU2120 Port &Indication...
-
Page 4: Installation & Workflow
OPU2120 is plug & activate, and no installation or configuration work is needed. Please connect it to the router and power up ,it will start to work. 1. Power up the OPU2120 and connect to a Router by Ethernet cable. Setup Indication 2. - Page 5 The signal will be processed by a software client and transferred to alert information to end user c. And at the same time, OPU2120 will send out a 433MHz hex string control signal to the Siren. The siren will receive the control signal and start to work.
- Page 6 User Manual –OPU2120 V. Reference Specification System Processor RT5350F System Flash 4 MB System RAM 32 MB Wireless WIFI，RF433MHz Accessory Power Adapter Adapter Output Power 5V /1.5A Operating Environment WorkingTemp:0℃~40℃ Humidity:10%~90%RH non-condensing Storage Temp: -40℃~70℃ Humidity:5%~90%RH Function WIFI to LAN Router...
- Page 7 User Manual –OPU2120 LED Lights Green Power On Solid Green Light Upper Link Connection (Ethernet ) Solid Green Light Downlink Connection (RF433) Solid Green Light Security System Armed Solid Green Light 1 short beep for arm system Buzzer Indication 2 continuous short beep for disarm system...
-
Page 8: Fcc Statement
User Manual –OPU2120 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 9 User Manual –OPU2120 minimum distance 20cm between the radiator & your body.
