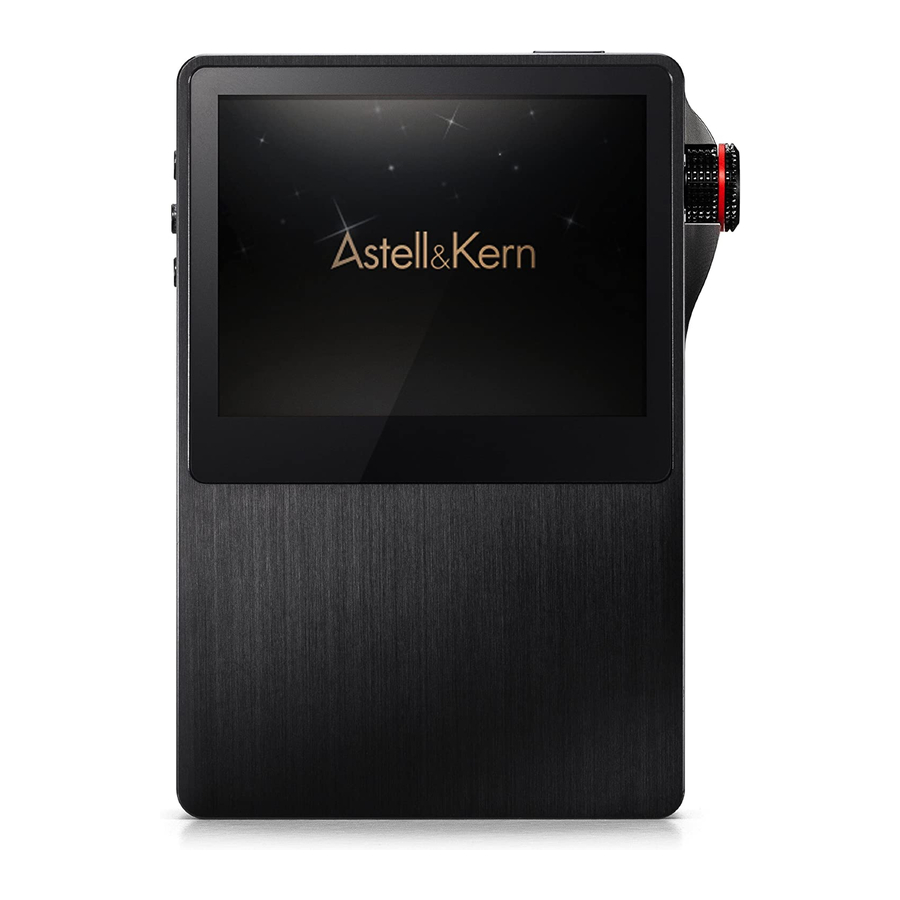

Summary of Contents for Astell & Kern AK120

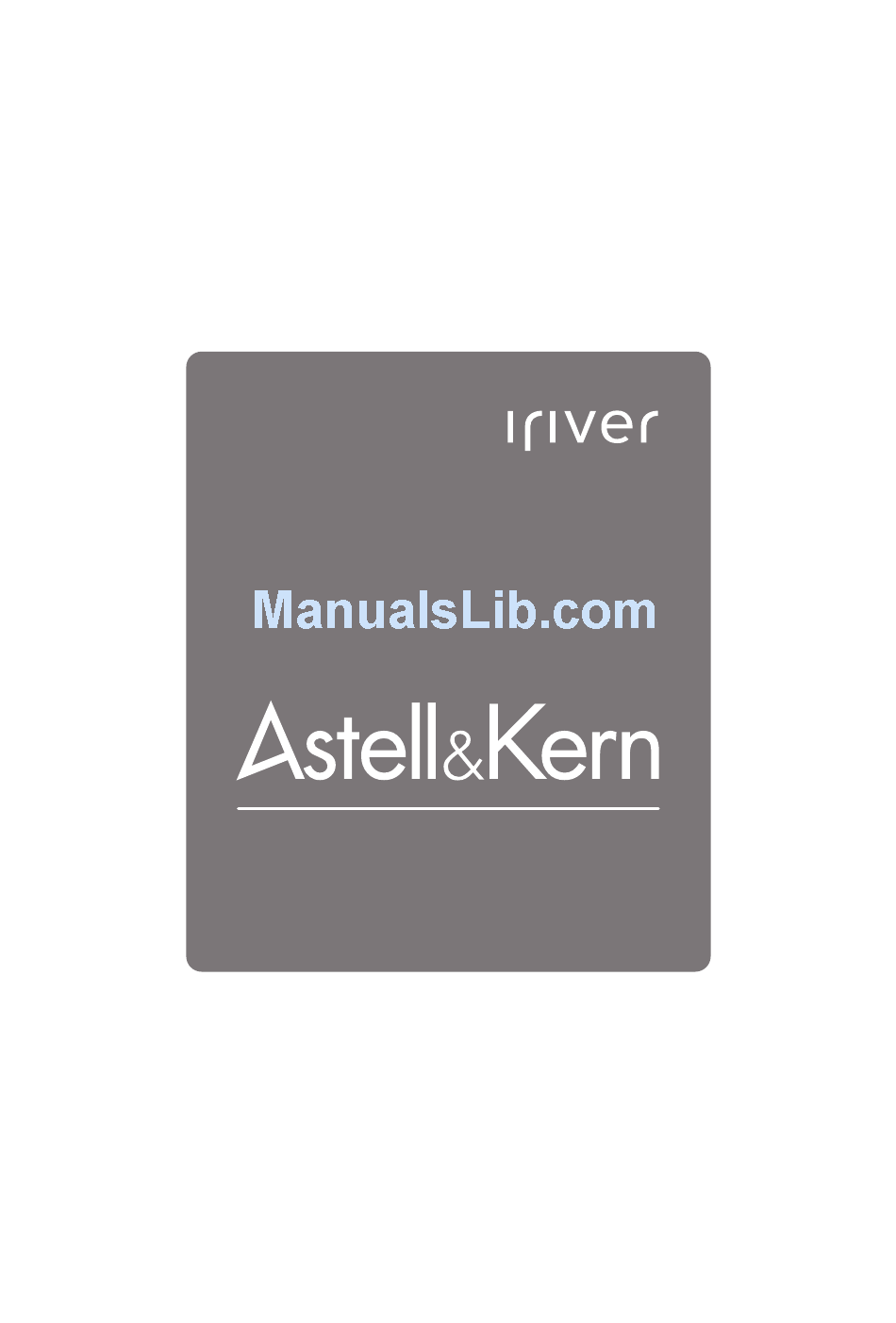

- Page 1 INSTRUCTION BOOK User Guide...
-
Page 2: Table Of Contents
CONTENTS Getting Started Components Names of parts Power source management Connecting Installing iriver plus4 Using Basic operations Listening to music Using Bluetooth Settings Other information Safety Problem-solving Copyright Certification Registered trademarks Escape clause... -
Page 3: Getting Started
User Guide Components Components may be changed without notice to improve the performance or quality of the product. AK120 Micro USB cable Pouch Quick start guide & product warranty Pouch: Protects the device. Micro USB cable: Connects the product to the computer and for charging the battery. - Page 4 User Guide Previous/ Rewind Volume Playback/ Touch LCD Pause Next/ Fastforward Earphone / OPTICAL OUT terminal: Connect the earphone and output sound through the earphone. Use an optical cable to play music stored in the product on an external device capable of SPDIF-IN. Power: Short - Turn on and off the screen.
-
Page 5: Power Source Management
User Guide Power Turn on/off source 1. Press and hold the [ ] key to turn on. manage- 2. When on standby, Press and hold the [ ] key to turn off. ment This product has the automatic power saving function to prevent battery consumption. -
Page 6: Connecting
User Guide Charging 1. Turn on the computer. 2. Using a Micro USB cable to connect the product to the computer automatically recharges the built-in battery. Use only the Micro USB cable provided with the product to ensure safe operation. Check that it is connected to a high-power USB 2.0 port. - Page 7 User Guide - Connect a removable disk: It can transmit data while connected to a computer. Connect the computer and the iriver device when all functions are stopped. Use only the Micro USB cable provided with the product to ensure safe operation. Connect the computer and the Micro USB cable only after all functions have been stopped.
- Page 8 User Guide Copy files (folder) to the product 1. To copy a file/folder from the computer, select it and drag&drop it to the drive added by the product. Please connect the Micro USB cable correctly. Use caution when copying or moving files. If the computer or product is turned off or the Micro USB cable is removed while the file/folder is being copied or moved, the data may be lost or seriously damaged.
- Page 9 User Guide Insert/separate the Micro SD card 1. Gently push to insert the SD card in the SD card slot as shown in the figure while the product is turned off. 2. Push the card again to remove it. Slot 2 (above) Slot 1 (bottom) Slot 1 Slot 2...
-
Page 10: Installing Iriver Plus4
User Guide Do not repeatedly insert/remove the Micro SD card. Improper handling of the Micro SD card may cause damage to the iriver device or card. Use of an unauthorized Micro SD card may result in malfunction. Transmission speed of the Micro SD card may vary depending on the PC status. - Page 11 User Guide Installing 1. Run the iriver plus 4 installation program stored in the internal memory--the program installation instruction dialog will be displayed. 2. Follow the instructions to complete program installation. iriver plus4 may also be downloaded from the iriver homepage (www.iriver.com).
- Page 12 User Guide Extracting media from the CD 1. Insert a music CD in the CD drive, and run iriver plus 4. 2. Select the check box for the music to extract from the [CD] tab of iriver plus 4, and click [CD ripping] at the bottom of the window.
- Page 13 User Guide Upgrading the firmware 1. Use the Micro USB cable to connect the iriver device to the Micro USB terminal of the Internet-connected computer, and run iriver plus 4. 2. Select [Device - Update firmware], and update the firmware according to the information window. If the battery runs low, firmware update may not be completed.
-
Page 14: Using
User Guide Basic Using the touch LCD operations 1. This iriver device has a touch LCD system that operates by touching the screen. Simply touch the desired icon on the screen to execute it. Moving up/down in the list 1. Change the list order by dragging the list screen [down up] / [up down]. - Page 15 User Guide Listening to music - Turn the [Volume wheel] to adjust the volume. - Press [ ] during playback to pause, press [ ] to restart. + Press the iriver device’s [ ] key to pause/restart. - Press [ ] during playback to play the previous /next music.
-
Page 16: Using Bluetooth
User Guide Music option 1. Press [ ] in the waiting screen or during playback to display the list of options. 2. Select the desired menu and set it up. 3. Press [ ] to display the previous screen and press ] to display the music play screen. -
Page 17: Disconnecting Bluetooth
User Guide Making/Taking calls during bluetooth connection Taking calls: Information on incoming calls is displayed on the device and the device connection is automatically disabled when call is requested. Making calls: The connection to the device will be automatically disabled when call is requested. Disconnecting Bluetooth 1. -
Page 18: Settings
User Guide Connection to car audio devices is not supported. Malfunction or noise may occur depending on the use environment and charging state. - When the user is wearing a Bluetooth device while holding the iriver device or holding the device in one hand and a cell phone in the other - When part of the body touches the radio sender and receiver of the iriver device or Bluetooth headset... - Page 19 User Guide Languages - Select the desired language. Display - Adjust the screen brightness. Power - Auto Power Off: Once a certain amount of time passes without operating the iriver device or buttons, power will be automatically turned off. - Backlight Off: Once the specified time passes when the device is not working, the screen will be turned off.
-
Page 20: Other Information
User Guide Safety Related to the iriver device - Failure to change the screen image may result in permanent discoloration. - Do not put or drop metals or flammable foreign materials on the iriver device (coins, hairpins, matches, lighter fluid.). - Do not put heavy objects on the iriver device. -
Page 21: Problem-Solving
User Guide Other - Do not use the headphone/earphone or operate the product whule driving a bicycle, automobile or motorcycle. It not only is dangerous, but also violates the law in some regions. - Do not use the product while driving, walking or hiking. - To avoid accidents, only use the iriver device in a safe place. -
Page 22: Copyright
User Guide + The screen turns off repeatedly. - To reduce power consumption during file playback, the screen will be turned off after a certain period of time. Set up time in [ - Power setting - Turn Off the Screen]. + The screen does not look normal. -
Page 23: Certification
User Guide Unauthorized use of all or part of this document may result in legal action. Copyrighted contents like software, sound sources and video are protected by relevant laws like the Copyright Act. The user accepts full legal responsibility for the use of this product to copy or distribute copyrighted contents without permission. -
Page 24: Escape Clause
User Guide Escape The manufacturer, importer and agent will not be responsible for contingent damage including injury or clause other damage due to improper use and operation of this iriver device. The information contained in this instruction book is based on the current iriver device specifications.
