Summary of Contents for MyHOME Basic gateway

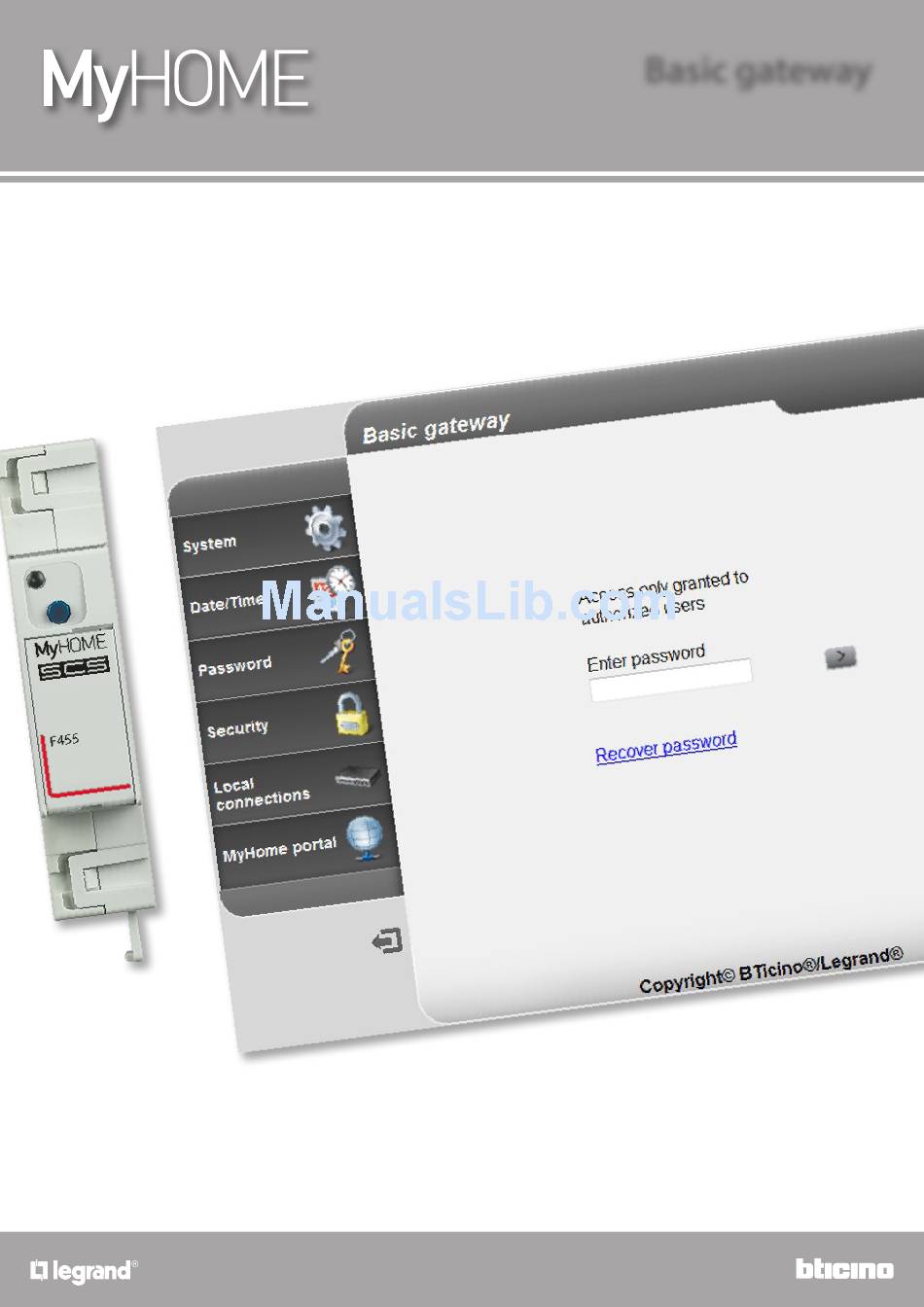

- Page 1 F455 - 0 035 94 Basic gateway Installation Manual www.homesystems-legrandgroup.com...
- Page 2 Basic gateway Installation Manual...
-
Page 3: Table Of Contents
Basic gateway Installation Manual Contents Description Warnings and recommendations Main functions Legend Connection Wiring diagrams Configuration Procedure with Windows Vista / 7 / 8 operating system Web Pages Troubleshooting Appendix Technical data... -
Page 4: Description
Main functions Gateway device for the remote and local management of the MyHOME system using the app (MyHOME Bticino and MyHOME Legrand) and specific software. MHVisual and Supervision Gadget (in the second case the scenarios can be recalled but not programmed). -
Page 5: Connection
Diagram with direct or crossed cable Diagram with switch Switch/router Check that the automatic assigning of the IP address is set in the network parameters on the PC and the Basic Gateway. Then select the Basic gateway device among the network resources. -
Page 6: Configuration
Basic gateway Installation Manual Configuration Procedure with Windows Vista / 7 / 8 operating system If the device is connected correctly, it will be displayed in the network resources with the name “Basic gateway”. 1. Click to display the identification web page. - Page 7 Basic gateway Installation Manual If the device is not automatically recognised by the PC, follow the instructions below. To access the configuration page and display the IP address of the device, the following parameters must be set: From the menu Start / Control panel 1.
- Page 8 Basic gateway Installation Manual 5. Click “Change advanced sharing settings”. 6. Turn on “Network discovery”. From the menu Start / Control panel 7. Click “Administrative tools”.
- Page 9 Basic gateway Installation Manual 8. Click “Services”. 9. Set “UPnP Device Host” to Automatic Startup Type, ensuring that it has actually been activated. 10. Click “Start”. 11. Click.
- Page 10 Basic gateway Installation Manual 12. Set “SSDP Discovery” to Automatic Startup Type, ensuring that it has actually been activated. 13. Click “Start”. 14. Click.
-
Page 11: Web Pages
Basic gateway Installation Manual Web Pages Identification In order to configure the device, you need to identify yourself using the login page. 1. Enter the “Password” (default: basic_gw). Warning: depending on the browser used to access the Internet, in order to ensure correct data display it may be necessary to modify the parameters of the Browser (for example with Internet Explorer select “Compatibility View”). - Page 12 6. Save the set parameters Warning: before changing page, press this pushbutton to save the parameters set. 7. Logout 8. Configuration pages Note: the configuration page of the MyHOME portal is active but the service is not currently available with the Basic gateway.
- Page 13 Basic gateway Installation Manual System (language included) This page can be used to enter the parameters for connection to the Ethernet network and the web page language. Some device data can also be displayed. Enter the configuration details in the various sections.
- Page 14 Basic gateway Installation Manual Date/time In this page the date and time must be set. 1. Enter the Date and time. 2. Click to confirm.
- Page 15 Basic gateway Installation Manual Password This page can be used to replace the password with a new one (8 to 10 characters) of your choice. It is mandatory to set questions and consequent answers for security: if you lose the password, you will be required to answer both questions and as a result the password will be reset to the default value (basic_gw) allowing you to memorize a new one.
- Page 16 Basic gateway Installation Manual Security This page can be used to configure the parameters for remote device management. 1. Enter the open password (default 12345). 2. Enable the possibility of activating/deactivating remote access to the device using an auxiliary channel.
- Page 17 Basic gateway Installation Manual Local connections This page can be used to set if the device/software performing the authentication should use an HMAC type algorithm and the range of IP addresses that can access the device without using the open password.
-
Page 18: Troubleshooting
Basic gateway Installation Manual Troubleshooting PROBLEM SOLUTION Power the device by pressing the reset key until the LED starts flashing red (the LED flashes red, then turns green, and then It is not possible to display red again): the device will be initialised with the following... - Page 19 Basic gateway Installation Manual...
- Page 20 Legrand SNC BTicino SpA 128, av. du Maréchal-de-Lattre-de-Tassigny Viale Borri, 231 87045 Limoges Cedex - France 21100 Varese www.legrand.com www.bticino.com Legrand SNC reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
