Steens Industrier AS 2010 mk IV User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

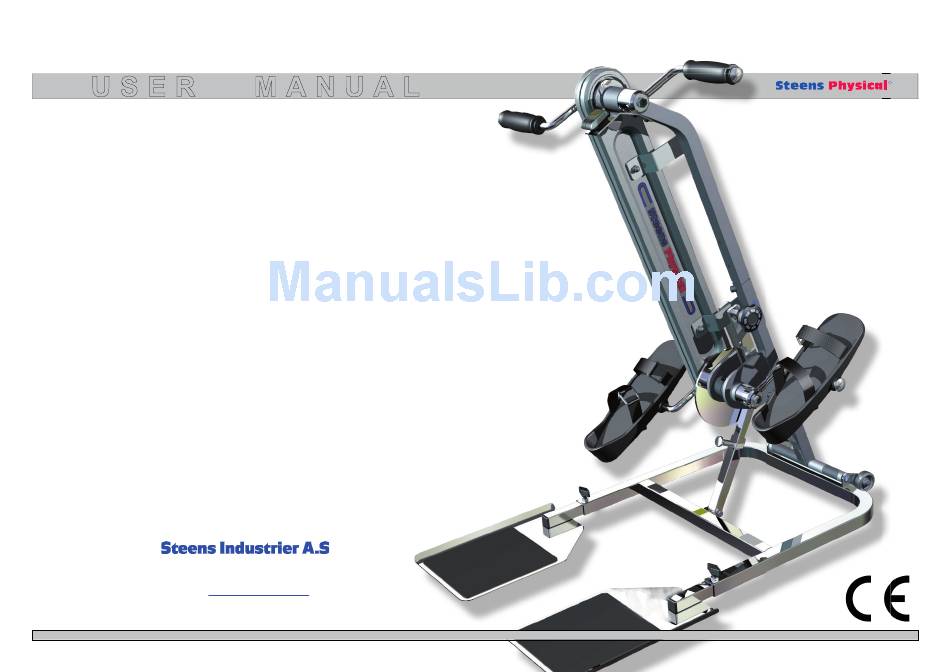

M A N U P E D
Art.no.: 373 100
Model 2010 mk IV
I-nr.: 109 200
Adjustable resistant
Adjustable height (angle)
Digital counter
•
speed
•
distance
•
watch
Chair-/wheel plates included
Ellingsrud Industrifelt, Verkstedveien 25
Post box 254, N-1401 SKI
Phone: +47 64 91 47 00 - Fax: +47 64 87 65 47
e-mail:
post@steens-industrier.com
Home page: www.steens-industrier.com
Fil: 373 100 BM manuped 06 EN net.---
Date: 09.02.2010 rg
Rev.: 09.02.2010 rg
R R
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2010 mk IV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steens Industrier AS 2010 mk IV

Summary of Contents for Steens Industrier AS 2010 mk IV

  • Page 1 M A N U P E D Art.no.: 373 100 Model 2010 mk IV I-nr.: 109 200 Adjustable resistant Adjustable height (angle) Digital counter • speed • distance • watch Chair-/wheel plates included Ellingsrud Industrifelt, Verkstedveien 25 Post box 254, N-1401 SKI...

  • Page 2: Table Of Contents

    © Copyright 2008 - 2010 • Rules for use Steens Industrier AS claims all the rights to this document on the base of • Safety Norwegian law. Reuse, copying complete or fragmentally, may not be done without our confi rmation.

  • Page 3: Foreword

    U S E R M A N U A L FOREWORD Steens Industrier congratulate you for choosing our improved MANUPED with digital counter. We hope both you and your patient will have a great and a meaningful training moment with use of this apparatus. Steens In- dustrier AS have their own fabric with modern machinery at Ski.

  • Page 4: Receiving And Check Out

    RECEIVING and CHECK OUT When receiving the goods, check out order no. model no. recipient in relation to your order. Check the wrapping for any transport damages. Make a notice on the transport paper and on the form at the end of this booklet. Replace- ment/repair would not be carried out less proper notice is made and mailed to us within 10 days.

  • Page 5: Assembling, Preparation And Test Of Functions

    U S E R M A N U A L ASSEMBLING, PREPARATION and TEST of FUNCTIONS Make some space on the fl oor and put down the MANUPED. Raise up the pedal unit 1) on the pedal part into the Put the support tube with the gas spring ( outer tube (2) on the base frame B Pull out the snap locker (...

  • Page 6: Parts And Defi Nitions

    PARTS and DEFINITIONS Fix screw with contra nut for adjustment of arm length. Handle, gear rim connection to foot pedals PEDAL UNIT VDO A4+ digital km counter Fix screw for tightening with transmitter and receiver of the rim Wheel for adjustment Rim gear cover of resistance Support arm...

  • Page 7: Fields Of Use

    U S E R M A N U A L FIELDS of USE The MANUPED is an apparatus for training of arms and legs. You use it together with a chair or a wheelchair. The MANUPED is mainly used in institutions, however it also have a great potential in private homes.

  • Page 8: Rules For Use

    RULES FOR USE The MANUPED is a device that has a low risk of injury when used ac- cording to intention. Nevertheless, it is necessary to emphasize that it is your duty to use the MANUPED only for what it is intended. Always make sure that the MANUPED is in order - none defective part or features that work improperly.

  • Page 9: Positions And Adjustments

    U S E R M A N U A L POSITIONS and ADJUSTMENTS 1. SETTING THE HEIGHT / ANGLE Pull out the snap lock head (A), tilt the balanced handle-support up or down until correct height. Drop the snap lock and ensure that it locks properly. CHANGING THE LENGTH OF THE HANDLE 0-SET...
  • Page 10 3. 0-POSITION OF KM COUNTER 5. WHEEL PLATES AND LOCKING SCREWS. Press the SET and MODE buttons simultaneously for 3 seconds. Then the trip Always make sure that boards are fully in and lock the lock screw (D) tight. counter is TRP reset to 0 km. SET button MODE button 6.
  • Page 11 U S E R M A N U A L DIGITAL km COUNTER 1. Taste function RIGHT BUTTON (MODE button) In bike mode: Use this button to progress through the ODO, TRP and CLK screens. In setting mode: (Set-Mode) Use this key to adjust the values in the Transmitter Magnet Set-up screen.
  • Page 12 3. Reset the computer 3.1 RESET APPLICABLE TOUR DATA To reset the current trip data TRP press SET and MODE buttons simultaneously for 3 seconds. 3.2 RESET COMPUTER To reset the computer to factory settings, use a pen and press the ”AC”...
  • Page 13 U S E R M A N U A L 4.2 REPLACING THE BATTERY I TRANSMITTER The VDO A4 + transmitter uses a 12V battery, type LR 23 Batteries are avail- able at your dealer (VDO Part No. # 1014). Battery life is around 12 months under normal use.
  • Page 14 5.2 PROGRAMMING OF ODOMETER The total distance ODO can be programmed at any time - after battery change or from previous notes. ODO is a function that shows the total ”trip” distance and always add the last ”trip”. Take the ODO screen, press and hold SET button for 3 seconds. ODO Set Mode will appear on the screen.

  • Page 15: Cleaning

    U S E R M A N U A L CLEANING The MANUPED should be cleaned with light soapy water and nearly dry cloth when needed or at least 1once a year. The MANUPED is not designed to withstand machine washing or any use of high pressure cleaners.

  • Page 16: Base Setting Of Resistance

    BASE SETTING OF RESISTANCE STARTING POINT: Resistance unit is correctly and loosely mounted. The brake pads resting on their respective pins. Follow the procedure below to adjust the resistance knob and nut: Tighten the steering wheel. Note the 0 point in relation to the triangle mark (1) on manuped tube.
  • Page 17 U S E R M A N U A L DISTURBANCE OF FUNCTIONS The MANUPED has few sources that can cause operational disturbanc- es. Here are mentioned some situations that may arise: It is diffi cult to regulate the angle / height ... Gas Pressure Spring (11) as weight balancing the pedal/handle support is defect and needs replacement.

  • Page 18: Accessories

    ACCESSORIES To the MANUPED the following equipment are available: Long chair/wheel plates - art.no.: 373 100-10 Standard chair/wheel plates - art.no.: 373 100-09 Chair/wheel plate with straps - art.no.: 373 100-02 One piece chair/wheel plate - art.no.: 373 100-06 Fil: 373 100 BM manuped 06 EN net.--- Date: 09.02.2010 rg Rev.: 09.02.2010 rg...

  • Page 19: Technical Data

    U S E R M A N U A L TECHNICAL DATA The MANUPED are manufactured in steel and powder coated. Parts that can be worn out, are chrome plated. It is not used materials or processes that pollute the environment. The product and the batteries should be recycled in accordance with ap- plicable regulations.
  • Page 20 Steens Industrier AS disclaims any liability with regard to abuse of (C) Steens Industrier AS reserves all rights to this drawing this drawing, its idea or its content. in accordance with Norwegian law. Drawing information may change without notice. Use, abuse, duplication, communication to third person, Date stamp, signature and ordeing verifies the drawing.
  • Page 21 Steens Industrier AS disclaims any liability with regard to abuse of (C) Steens Industrier AS reserves all rights to this drawing this drawing, its idea or its content. in accordance with Norwegian law. Drawing information may change without notice. Use, abuse, duplication, communication to third person, Date stamp, signature and ordeing verifies the drawing.
  • Page 22 Steens Industrier AS disclaims any liability with regard to abuse of (C) Steens Industrier AS reserves all rights to this drawing this drawing, its idea or its content. in accordance with Norwegian law. Drawing information may change without notice. Use, abuse, duplication, communication to third person, Date stamp, signature and ordeing verifies the drawing.
  • Page 23 U S E R M A N U A L DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY PRODUCT WARRANTY Steens Industrier AS Product Warranty MANUPED - Art.no.: 373 100 MANUPED - Art.no.: 373 100 are consistent with NORWEGIAN PURCHASE CE marking is carried out in accordance with the following CE marking is carried out in accordance with the following test reports, certifi...
  • Page 24 SERVICE LOG for MANUPED - Art.no.: 373 100, I-nr.: 109 200 PHONE LIST SERVICE and REPAIRERS Name Phone/ e-mail Note Date Carried out maintenance work Signature Steens Industrier AS +47 64 91 47 00 Producer Post Box 254, N-1401 SKI post@steens-industrier.com Dealer Service Serieno: Assembled/checked date/sign:...
  • Page 25 Supplier / dealer / expeditor that information to us. Company: Best regards Steens Industrier AS Address: (It will be possible to download this as an electronic form that can be Contact person: completed on your PC and mailed over the Internet.) Visit our website: www.steens-industrier.com...
