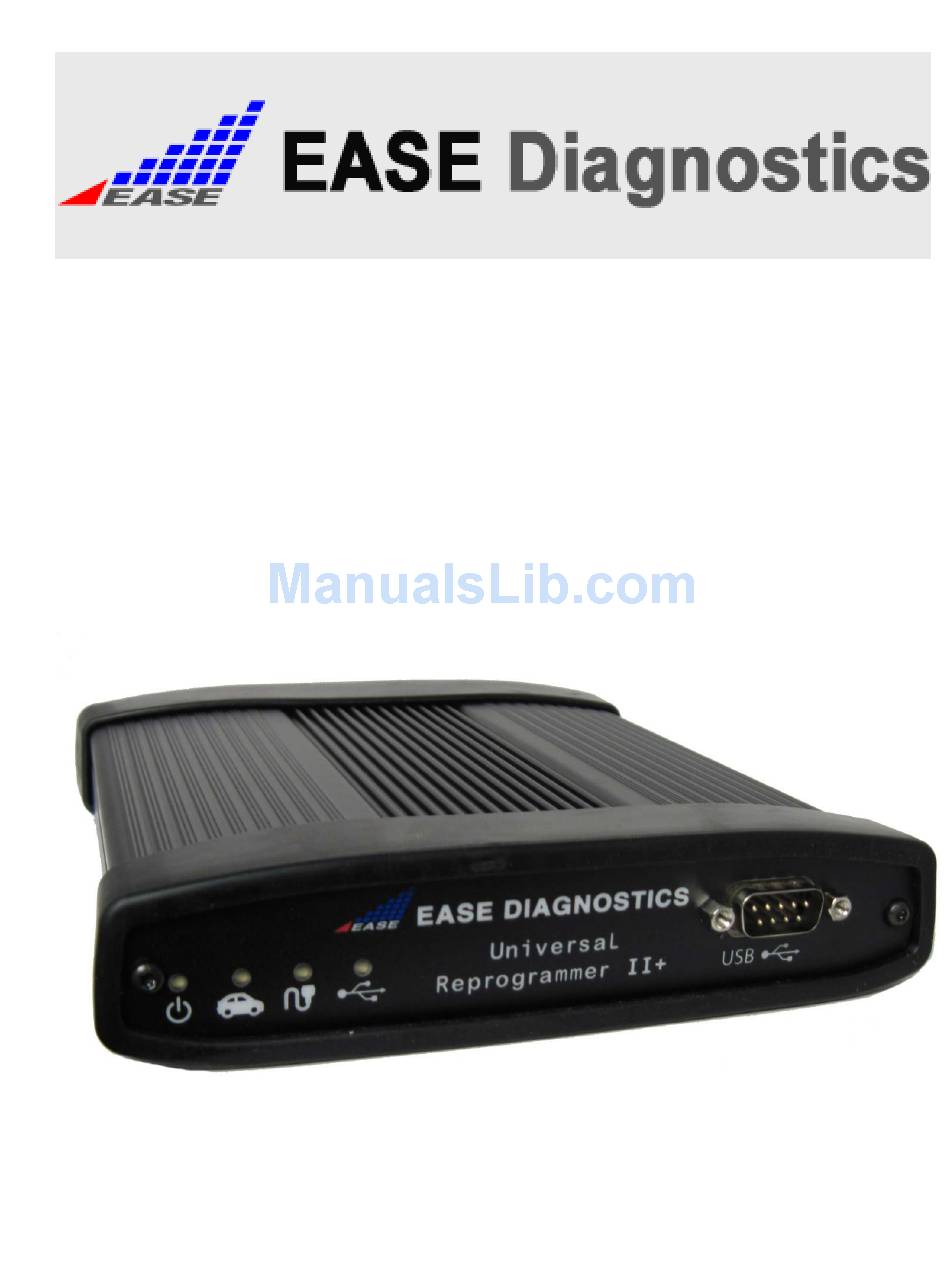

  • Page 1 Universal Reprogrammer II+ Quick Start Guide...

  • Page 2: Please Note

    COPYRIGHT & TRADEMARKS Copyright 1999-2015 EASE Diagnostics, Inc., All Rights Reserved. MongoosePro, CarDAQ, ScanDAQ, IMclean, IMready and J2534 ToolBox are registered trademarks of EASE Diagnostics, Inc. All other trademarks and brand names are the property of their respective owners. LIMITED WARRANTY EASE Diagnostics, Inc.

  • Page 3: Table Of Contents

    Contents Contents PLEASE NOTE ..........................2 COPYRIGHT & TRADEMARKS .................... 2 LIMITED WARRANTY ......................2 FCC Statement ..........................2 Contents ............................3 Introduction..........................4 Get to know Universal Reprogrammer II+ .................. 4 Driver installation ........................5 J2534 Toolbox 3 ........................... 9 DrewTech Tech2Win Driver ......................

  • Page 4: Introduction

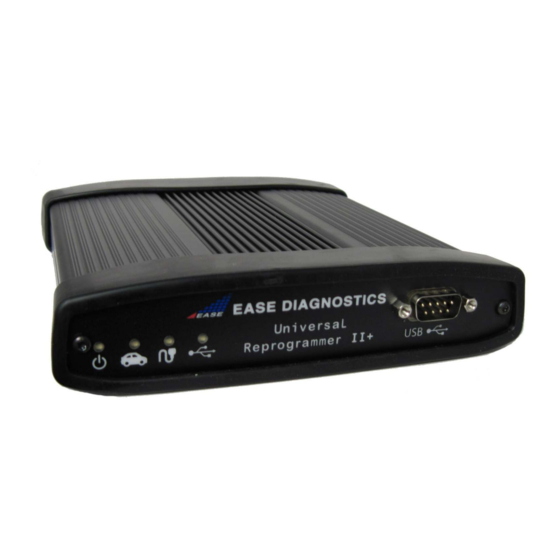

    Introduction Thank you for choosing Universal Reprogrammer II+! Universal Reprogrammer II+ will allow you to re-flash modern vehicle controllers to stock as well as perform dealer level diagnostics on select manufacturer’s vehicles. This Quick Start Guide covers the initial setup, features, and common questions. This manual is always available at http://www.obd2.com.

  • Page 5: Driver Installation

    Driver installation 1. Insert the CD included with your Universal Reprogrammer II+ into your PC. You will need to have an internet connection to get the latest drivers. If your PC does not have a Disk Drive, please go to http://www.obd2.com/ to get the Universal Reprogrammer II+ Installer.
  • Page 6 4. Once the setup application has finished, Connect the USB cable to your Universal Reprogrammer II+ and to the PC. Once you have gotten a message in the lower right hand corner that the device has been installed, click Activate My device. Then Click Exit. 5.
  • Page 7 6. Select the interface you want to activate and click Continue. 7. Enter your information and Click Continue.
  • Page 8 8. Select your type of business and level of programming experience, then select the OEMs you are planning to support. Click Continue once you are done. 9. Unplug your Universal Reprogrammer II+ from your PC and click OK. 10. Plug your Universal Reprogrammer II+ back into your PC, and click OK.

  • Page 9: J2534 Toolbox 3

    11. Your device has been successfully activates, click close application. J2534 Toolbox 3 1. Double Click the J2534 Toolbox 3 Icon on the Desktop. 2. Select your interface from the drop down and click Auto Login.
  • Page 10 3. The Toolbox will open with 6 tabs available. The first is General, it has news, current OEM concerns, and training broadcast invitations. The sales tab is connected to the Drew Tech website. 4. The Diagnostics tab has basic Diagnostic functions, as well as links, information and videos about all OEMs that currently provide Diagnostics via J2534.
  • Page 11 5. The flashing Tab has contains the information pertaining to OEM J2534 reflashing including links, information, walkthroughs, and some helper functions. 6. The Support tab has functions to check driver installation, vehicle communication, update your device, create debug logs, and contact Technical Support. 7.

  • Page 12: Drewtech Tech2Win Driver

    Tech2Win Driver The Tech2Win driver allows technicians to use the Universal Reprogrammer II+ as an interface for the Tech2Win application. If you experience concerns, the first place you can check the status and configuration by following the instructions below: 1. Go Start>All Programs>Drew Technologies, Inc.>Tech2WinDriver and open the Drewtech Tech2Win Driver Configuration application.

  • Page 13: Specifications

    Physical Specifications/Tolerances: Name Value Input Voltage Range 7VDC to 27VDC Supply Current 220mA @ 7VDC 175mA @12VDC Operating Temperature +0C to +60C ambient Storage Temperature -20C to +85C ambient Technical Support Please contact EASE Diagnostics for technical support at 570-587-7082.
