1500652
User's Guide
3-In / 2-Out
HDMI
Matrix Splitter / Selector
™

Advertisement

Table of Contents
loading

Summary of Contents for Radio Shack 1500652

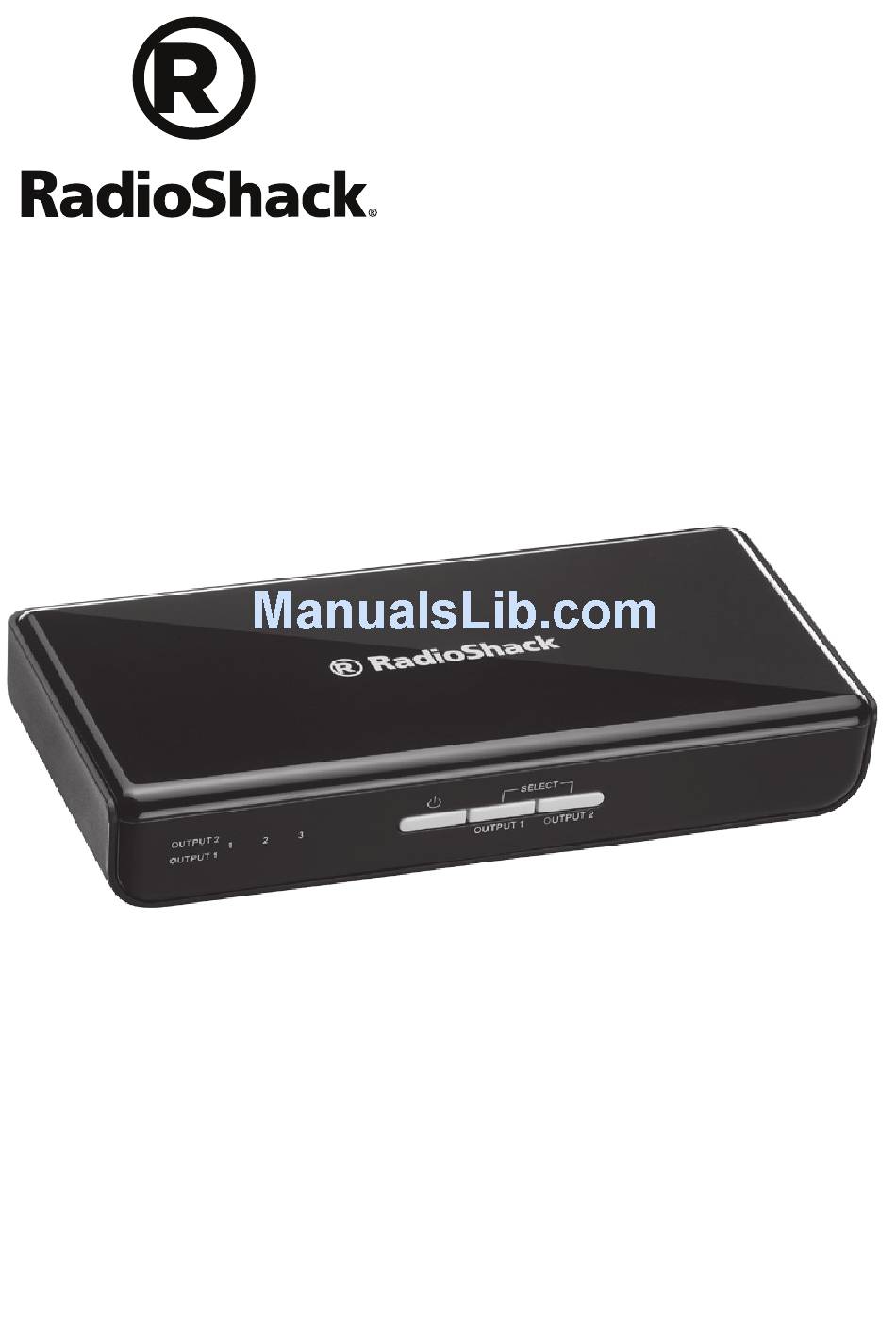

  • Page 1 1500652 User’s Guide 3-In / 2-Out HDMI Matrix Splitter / Selector ™...

  • Page 2: Package Contents

    We hope you enjoy your 3-In / 2-Out HDMI Matrix Splitter / Selector from RadioShack. This HDMI matrix splitter / selector connects three HDMI input devices to two separate HDMI display devices. It enables you to send the same source to both displays, or a different source to each.
  • Page 3 Setup Connect your HD audio/video devices to the selector’s HDMI IN 1, HDMI IN 2, and HDMI IN 3 ports using HDMI cables (not included). Connect your HD display devices to the selector’s HDMI OUT 1 and HDMI OUT 2 ports using HDMI cables (not included).

  • Page 4: Install The Battery

    Install the Battery Before using the remote control for the first time, pull out the clear plastic tab. Replace the battery when your remote control is not working normally. Press the tab on the battery compartment tray inward and slide the battery compartment tray out. Insert the supplied 3V, CR2025 battery, positive (+) side Slide the tray back into the battery compartment until it clicks.
  • Page 5 for an input signal, then turns back on when signal is detected. To power off the selector, press G on the remote control or the selector. SELECT OUTPUT1 / G Power Lights when input OUTPUT 2 device is selected Select input device IR Receiver Turn selector on/off.

  • Page 6: Troubleshooting

    Troubleshooting Problem Possible Solutions LED doesn’t • Make sure the selector’s power adapter light is plugged in. • Make sure that the input device’s power cord is plugged in properly. No video or • Try another device. audio • Make sure the HDMI cable is not damaged. •...

  • Page 7: Fcc Information

    Problem Possible Solutions Remote • Change the battery. control does • Make sure there are no obstructions not work between the remote and selector. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 8: Limited Warranty

    Substances Directive,” which protects the environment by restricting specific hazardous materials and products. © 2016 General Wireless Operations Inc. 11A16 All rights reserved. RadioShack is a registered 1500652 trademark used by General Wireless Printed Operations Inc. dba RadioShack. radioshack.com in China...
