Page 1: Instruction Manual

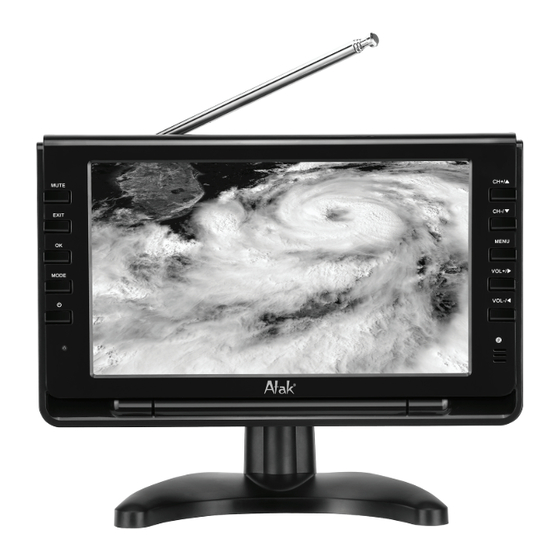

9A700 Ver 1.0 9” PORTABLE TELEVISION INSTRUCTION MANUAL MODEL: 9A700 For technical assistance or troubleshooting please call 1-855-994-2825 or visit www.sibrandssupport.com... -
Page 2: Important Safety Instructions
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. 9A700 - 2... -
Page 3: Safety Instructions
To protect the TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges. 9A700 - 3... - Page 4 If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance. 9A700 - 4...
-
Page 5: Replacement Parts
- Connect the equipment into an outlet on a circuit different from that to which the television is connected. - Consult your dealer or an experienced radio / TV technician for assistance. ’s authority to operate the equipment. 9A700 - 5... -
Page 6: Table Of Contents
Setup Settings Menu Languages ................................17 Transparent ................................17 OSD Timeout ..................................17 Closed Captions.................................17 Parental Control ................................18 Channel Settings Favorite ..................................19 Show / Hide ..................................19 TV Channel Setup & Channel Auto Scan ........................20 USB & microSD Playback............................21 Troubleshooting ................................22 9A700 - 6... -
Page 7: Introduction
Introduction What’s In The Box The 9A700 package includes the following items. Save the carton & packing for future shipping • Remote Control • AC 100-240V~50/60Hz to DC 12V 0.8A Adapter • 12V Auto / Boat Adapter / Charger • Detachable Telescoping Antenna •... -
Page 8: Installing The Base
Adjust Height: Turn the round Disc between the TV and the extension arm counterclockwise. Slide the TV Base up or down the Channel on the rear of the TV. Turn the round disc clockwise to lock. 9A700 - 8... -
Page 9: Remote Control
Remote Control FREEZE SOURCE ENTER EXIT PICT SOUND LIST LIST 7 - 9A700 18. MUTE Button 1. POWER Button 19. AUDIO Button 2. CHANNEL UP Button 20. CLOSED CAPTION Button 3. CHANNEL DOWN Button 21. PICTURE Button 4. VOLUME UP Button 22. -
Page 10: Tv Overview
9. MUTE Button: Press the MUTE button to turn OFF the TV volume. Press again to resume. 10. IR Receiver: Receives commands from the Remote Control. When using the Remote Control, point the Remote at this location and press the desired button. 9A700 - 10... -
Page 11: Side Panels
VOL - / ON / OFF AV1 IN AV2 IN DC 12V 11. ON / OFF SWITCH 16. USB PORT 12. AV-1 INPUT 17. microSD CARD SLOT 13. AV-2 INPUT 14. HEADPHONE JACK 15. 12V DC INPUT 9A700 - 11... -
Page 12: Installation
Insert the RED, WHITE, & YELLOW AV Cable (Not Included) into the matching colors on the external device. MODE MENU VOL- VOL+ ON / OFF AV1 IN AV2 IN DC 12V Audio Video Cable (included) Red, White, Yellow Cable (Not included) Digital set top box, gaming console or DVD 9A700 - 12... -
Page 13: Tv Setup
Time Format 12-hour Go to next step Select the time zone & Daylight saving time Use the q arrow button to select Go to next step and press the MENU ENTER ENTER button to complete the step. 9A700 - 13... - Page 14 Once Channel Auto Scan has ended, Initial Setup is RF CH Total Found : complete. You may now begin enjoying your TV, or make further adjustments to the TV settings which are Exit MENU explained in the following pages of this manual. 9A700 - 14...
-
Page 15: Picture Settings
Press down q arrow button to highlight your Zoom Mode preference. Navigate using the t u arrow buttons to select buttons to select the zoom mode that is most pleasing Note: When adjustments are completed, you may select another menu by pressing the Menu button. 9A700 - 15... -
Page 16: Audio Settings
• Press down q arrow button to highlight Wake Up. • Press down q arrow button to highlight Auto Sync. Navigate using the t u arrow buttons to set an alarm. Navigate using the t u arrow buttons to turn this feature On or Off. 9A700 - 16... -
Page 17: Setup Settings
• Press the down q arrow button to highlight Option. Press the u arrow button to enter a menu with options to customize text fonts, colors, and opacities. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 9A700 - 17... -
Page 18: Parental Control
AUDIO General Audience Parental Guidance Suggested PG-13 TIME PG-13 Parents Strongly Cautioned LOCK Restricted SETUP NC-17 No One Under 17 Permitted NC-17 LOCK Adults Only LOCK LOCK LOCK N / A CHANNEL 9A700 - 18... -
Page 19: Channel Settings
KCCI Press ENTER on a highlighted channel to Show or Hide the KGAN TIME highlighted channel. Channels marked with a W will be removed 10.2 KFXA from the list of available channels. SETUP LOCK CHANNEL 9A700 - 19... -
Page 20: Tv Channel Setup & Channel Auto Scan
Press the q arrow button to highlight Auto Scan and press ENTER. Press the u arrow button to highlight YES and press ENTER to begin Auto Scan. NOTE: Channel Auto Scan may take several minutes to complete. 9A700 - 20... -
Page 21: Usb & Microsd Playback
4. Use the p q t u buttons to highlight the different playback functions (Play, Pause, Next, etc.) then press ENTER to select the highlighted function. 5. Press the EXIT button to stop playback and return to the previous screen. 9A700 - 21... -
Page 22: Troubleshooting
Cannot receive certain channels through the antenna No color selected in the current input. No sound • The “T No picture Press SOURCE button to verify the desired input is selected. Remote control does not function TV’ 9A700 - 22... - Page 23 We warrant this product to be free from defects in material and workmanship under normal use for a 90-day period from the original date of purchase from an authorized ATAK dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
- Page 24 Schoenfeld International Inc and ATAK 5001 American Boulevard West Suite 275 Bloomington, Minnesota 55437 ©Schoenfeld International Inc., 2015 9A700 Ver. 1.0 February 2015...
