19755 Nordhoff Pl., Chatsworth, CA 91311, Tel: 818 700 8488, Fax: 818 700 8466, www.logicube.com

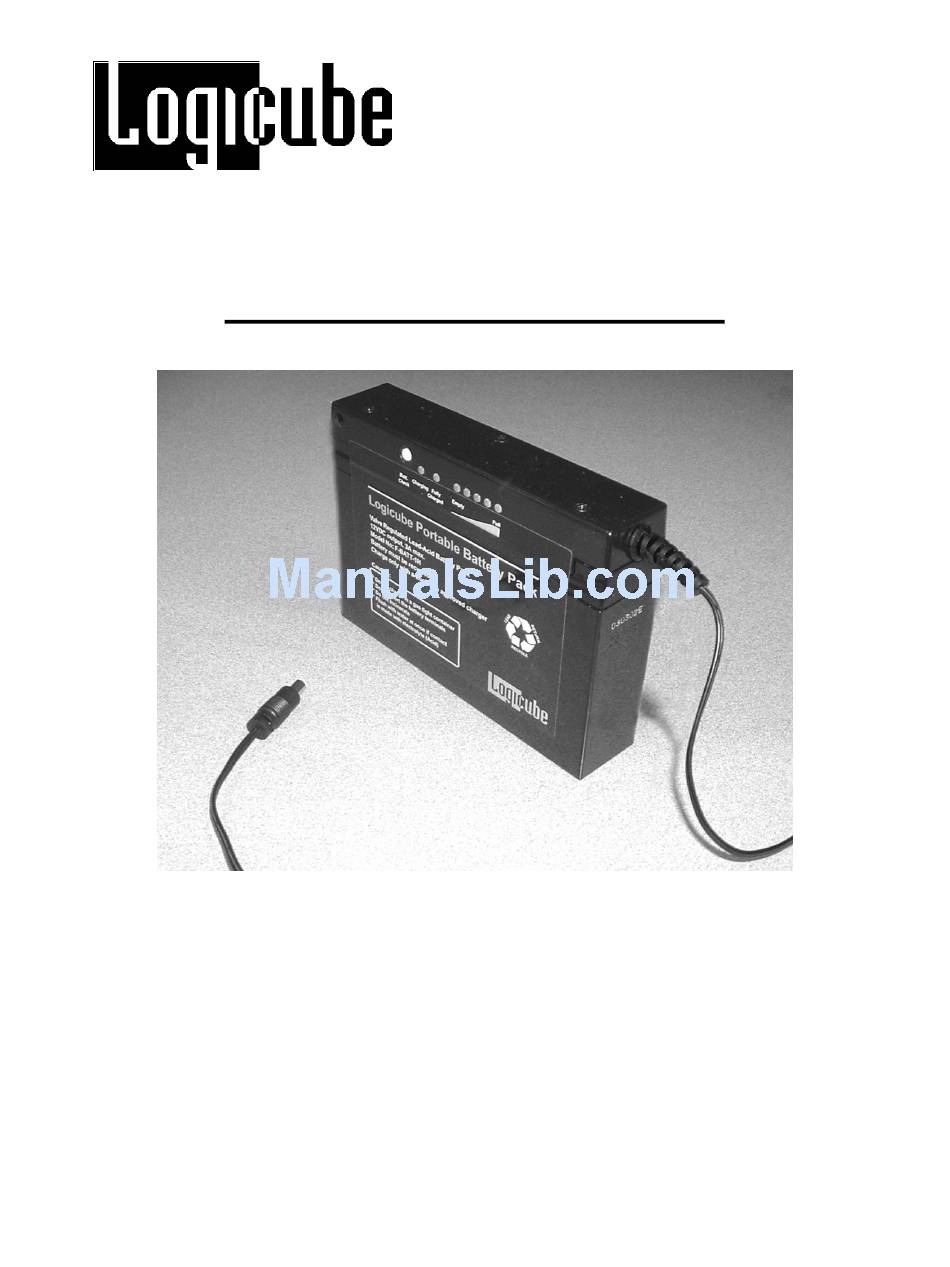

Battery Pack™ User's manual
Please refer to the Limitation of Liability and Warranty information at the end of this manual.
Introduction
Congratulations on your purchase of the Logicube Battery Pack. The Logicube Battery Pack is designed to
provide power to your Logicube hand-held IDE drive duplication device. When used properly, it can
provide power to your Logicube duplication device for years to come.
Features
The Logicube Battery Pack provides the following features:
1
Advertisement
Table of Contents
Summary of Contents for Logicube Battery Pack
- Page 1 Please refer to the Limitation of Liability and Warranty information at the end of this manual. Introduction Congratulations on your purchase of the Logicube Battery Pack. The Logicube Battery Pack is designed to provide power to your Logicube hand-held IDE drive duplication device. When used properly, it can provide power to your Logicube duplication device for years to come.
-
Page 2: Unit Description
ASAP. Unit Description The Logicube Battery Pack is made up of the following parts, (please refer to Figure 1 for more details): Figure 1. Logicube Portable Battery Pack. Battery life is dependent on the type of Logicube drive duplication device and hard drives used. - Page 3 Operations The Logicube Battery Pack is designed to be very simple to use. Just follow this procedure: 1. Attach the DC Power Output Jack from the Battery Pack to your Logicube Drive Duplication device, refer to the diagram below.
- Page 4 The following charts illustrate the rate of discharge with different hard drives and Logicube Drive Duplication devices. The first chart is for one Battery Pack and the second chart covers two Battery Packs “Daisy-chained” together:...
- Page 5 This Power Gauge problem will correct itself with the next full discharging and full charging cycle. NOTE: The Battery Pack unit should be recharged at least one every 3 to 6 months, to prevent the battery from entering a “deep-discharge” state.
- Page 6 Things to Note Orientation and Low Gas Emission: The unit can be used in any orientation except Battery Pack top side down (vents on the bottom). The batteries are Sealed-Lead-Acid (SLA) type, and under charging operations, a small, but virtually negligible amount of hydrogen gas emission is possible.
