Sub-1GHz P-900 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sub-1GHz to Internet
P-900 IoT Gateway.
Operation Manual
[Version 3.2]
Connect POCSAG to Internet by WIFI and receive by smart phone.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sub-1GHz P-900

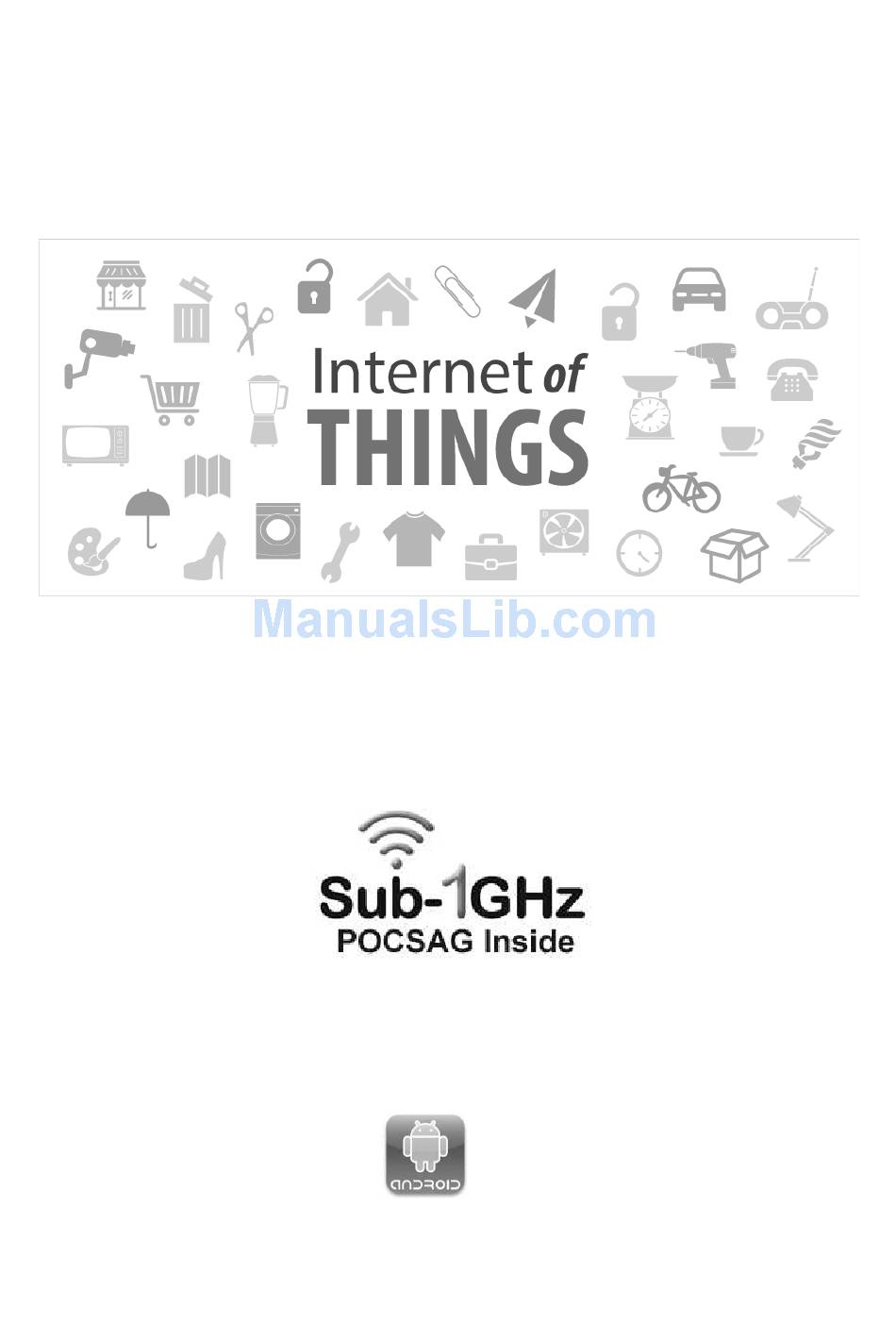

  • Page 1 Sub-1GHz to Internet P-900 IoT Gateway. Operation Manual [Version 3.2] Connect POCSAG to Internet by WIFI and receive by smart phone.

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ....................... 2 2.. Apparent of P-900 IoT station ..................5 3. Top case view and LED's function ................6 4. Bottom case view and serial account number ............7 5. Rear case view ......................8 6.

  • Page 3: Introduction

    1. Introduction The Take care system, Fire alarm, Security system, food service calling…. can be directly sending urgent message to own smartphones…. Via IOT Gateway Into the internet...
  • Page 4 1-1 One Gateway P-900 can be connected to many smartphones…. Via IOT Gateway Into the internet Up to 256 smart phones can received from 1 P-900 IoT Gateway 1-2 One smart phones can received message from many P-900 IoT Gateways …...
  • Page 5 (Like Items from WDIT :M-810,M-820,M-840,WD2,M-838,M-909K,M-916, NP-14, EM-898,w009 moudles..) b. P-900 IoTStation: When receives the POCSAG code, which will be transferred to internet through the Wi-Fi AP. c. Via Wi-Fi AP connect to Internet. e. Via internet by Wi-Fi or By GSM, 3G,4G, LTE….sending the alarm message...

  • Page 6: Apparent Of P-900 Iot Station

    2. Appearance of the P-900 IoTStation.

  • Page 7: Top Case View And Led's Function

    ON the Internet Indication Indicate the Wi-Fi status: light would be on when connected to a Wi-Fi. Wireless Communication indication Indicate the sub-1GHz contact and system reset status: Fast flash means the ready to make the system pairing; light for pairing accept.

  • Page 8: Bottom Case View And Serial Account Number

    4. Bottom view of the case and serial number etc… QR code icon The QR code stickers on the rear case shows the account number for system registration and to help adding additional IoTStation into IoT APP of system.

  • Page 9: Rear Case View

    5. Rear side view of the case: 12V1A The system power supply DC in connection: DC12V >0.5A Micro USB Jack For the firmware upgrade purpose and also for the dealers software programming. Match/Reset button To match the assigned transmitter devices pairing and for the system reset.

  • Page 10: Installation Iotstations App For Your System

    6. Installation of IoTStations App for system 6-1 Step1: Download APP from Internet http://www.iotstations.com:8080/wd2web/WD2_Dvc_SetupRingTone.apk Use QR code reader to scan the QR code of the following via your smart phones Usually the latest APP QR code will sticker on the top of packing box...
  • Page 11 6-2. Step2: After completing download IoTStations APP. Then install the IoTStation app. 6-3. Step3: Open the IoTstation App and click on "Add Brand New Station" Please make sure your mobile device is connected to a WiFi, the same WiFi will be used to connect to IoTstation.
  • Page 12 6-5. Step5: Select the IoTStation to add, and click on "NEXT:INPUT IOTSTATION PASSWORD" 6-5. Step6: Please Set the Password for the IoTStation Password can be set within 4-7 digits English and Number.

  • Page 13: Connect To Internet

    Then click on the "SAVE,NEXT:CONNECT TO WIFI". 6-6. Step7:Please Enter the Password for your WiFi. Then click on "CONNECT TO INTERNET". After successfully setting the IoTStation, you should see a new IoTStation added here. 7. Add on additional IoTStation. 7-1. Click on “Add Existing Station”...

  • Page 14: Addition The New Iot Stations On Line

    7-2. Use your smart phone to scan the QR code on the bottom side of IoTStation. 7-3. key-in the password into your screen...
  • Page 15 7-4. click [Save].. Successfully added the new IoTStation..

  • Page 16: Addition Alarm Devices On Line

    8. Add the alarm devices to the IoTStation. 8-1. Press the Match/Reset button on the side of IoTStation for one second, and the Sub-1Ghz led light will be blinking. 8-2. Press the transmitter's TX button and make transmitter devices an activity within 10...
  • Page 17 8-3. Test the peripheral and just add to activate the peripheral again. If added successfully, the mobile device should be getting a message.
  • Page 18 8-4. Rename the alarm devices, click on rename icon. 9-5. key-in the name of alarm devices and then click [OK] examples: [Case Box alarm],[Door is open],[Daddy calling]….

  • Page 19: Reading Alarm Message, And Aleart Sound Setting

    9. smart phone side setting 9-1. Click STATION for select your IoTStation, Example: [My house],[Office],[warehouse],[daddy at home]... 9-2. Click Message to view all alarm messages..9-3. Click SETTING to set alarm Sound or/and Vibration...

  • Page 20: System Reset

    10. System reset. 10-1: When you are confused or missing of the system setup, You can press Match/Reset button over 15 Seconds until the beep sound to release the buttonto reset the factory setting, and try again. (When reset is activated, IoTStation would go back to default setting)

  • Page 21: Specification

    P-900 IoT Stations Specification General Operation temperature -25° C ~ 70° C Power Supply DC 12V 0.5-2A Case size: 80(L) x 70(W) 27(H) mm Weight: 220g without AC adapter. Wi-Fi Section Wi-Fi Standard 802.11 b/g/n Network Mode AP / Station Transmission Rate 802.11b: 11Mbps...
