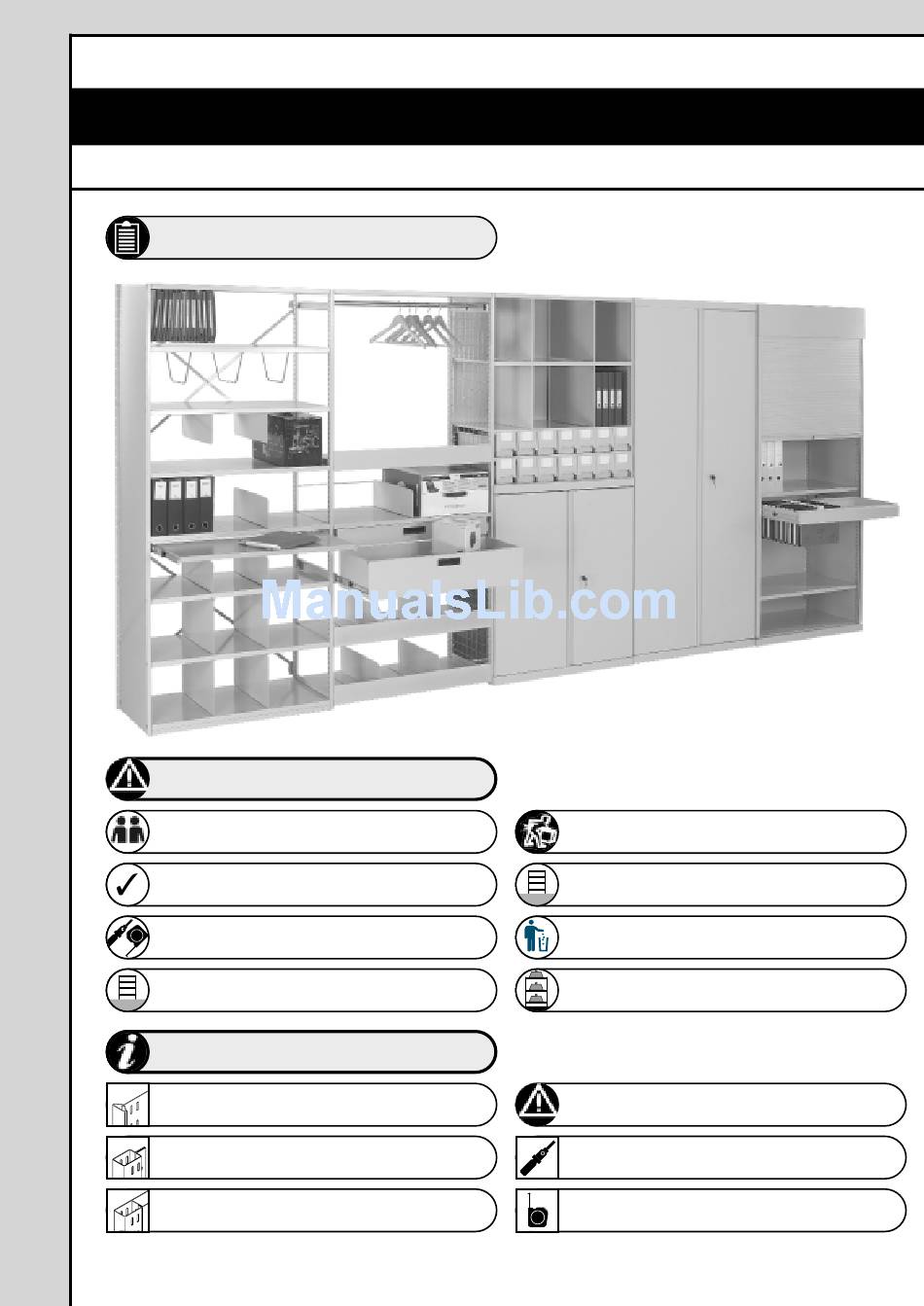

Assembly Guide
STORMOR
with Solo, Mono or Duo Frame Types
READ THIS GUIDE THOROUGHLY BEFORE COMMENCING
ASSEMBLY AND RETAIN FOR REFERENCE.
INFORMATION
IF IN DOUBT ALWAYS CONTACT YOUR SHELVING SUPPLIER
Assembly should be undertaken by two competent people,
preferably suitably trained shelving installers.
Before commencing assembly, unpack carefully and check that
all components ordered are included.
+
Basic Tools: '
head'-type Screw Driver; 10mm socket or
spanner; Measuring Tape.
Assess for floor fixing - tall, narrow bays may require this to
ensure stability - refer to page 19.
INFORMATION
Key to some Symbols used in this Assembly Guide
S
= Instruction applies to shelving with SOLO Frames.
M
= Instruction applies to shelving with MONO Frames.
D
= Instruction applies to shelving with DUO Frames.
The information contained in this booklet was accepted as correct at the date of publication. However, the manufacturer reserves the right to make any necessary changes, in line with
product development and improvement. No liability can be accepted for any inaccuracies or omissions, although every reasonable care has been taken to make this publication as
complete and accurate as possible.
STORMOR SHELVING IS DESIGNED & MANUFACTURED IN THE UK TO QUALITY MANAGEMENT SYSTEMS CONFORMING TO THE INTERNATIONAL STANDARD BS EN ISO 9001:2000.
®
Shelving Bays
PART NUMBER: SZASSYGUIDE. ISSUE 2. Revised 11.04
TAKE CARE DURING ASSEMBLY! -
when lifting, stretching and using tools.
Assemble and locate for use on a suitable level floor surface.
Allow adequate working area.
Dispose of packaging materials responsibly.
In use, ensure shelving is loaded and used safely.
DO NOT EXCEED SHELF & BAY LOAD CAPACITIES.
FAILURE TO FOLLOW INSTRUCTION WILL RENDER
=
SHELVING UNSAFE!
1
= Assemble in order indicated.
= Measure to ensure correct location.
