TDM IPmux-24 Datasheet

Tdm pseudowire access gateway
Hide thumbs

Advertisement

Table of Contents

TDM circuit emulation
over packet-switched
networks

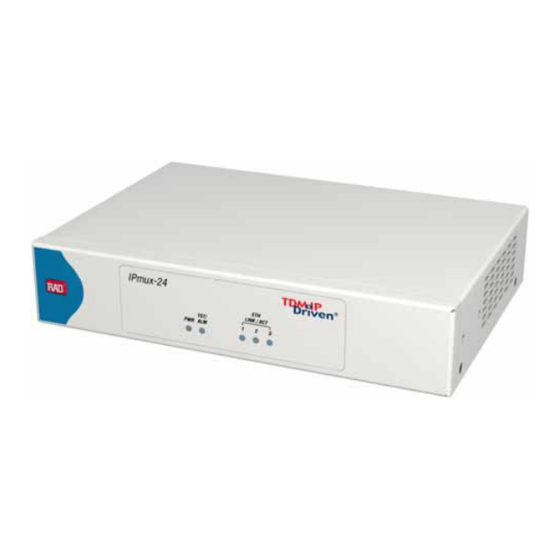

IPmux-24
TDM Pseudowire Access Gateway
•
Comprehensive support for pseudowire/circuit emulation standards including
TDMoIP, CESoPSN, SAToP, CESoETH and HDLCoPSN
•
Industry-leading adaptive clock recovery mechanism suitable for cellular
backhaul over packet-based networks
•
Carrier-class/environmentally hardened device
•
Extensive OAM and performance monitoring capabilities
•
Three auto-detecting Gigabit or Fast Ethernet SFP- or UTP-based ports, and
one, two or four TDM service ports
IPmux®-24 provides legacy services over
packet networks. The device converts the
data stream from its user E1/T1 ports into
packets for transmission over the
network. These packets are transmitted
via the IPmux 24 Ethernet network port to
the PSN. A remote pseudowire device
converts the packets back to their original
format.
Data Sheet
PSEUDOWIRE FUNCTIONALITY
The ASIC-based architecture provides a
robust and high performance pseudowire
solution with minimal processing delay.
The Access Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPmux-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TDM IPmux-24

  • Page 1 • Extensive OAM and performance monitoring capabilities • Three auto-detecting Gigabit or Fast Ethernet SFP- or UTP-based ports, and one, two or four TDM service ports IPmux®-24 provides legacy services over PSEUDOWIRE FUNCTIONALITY packet networks. The device converts the The ASIC-based architecture provides a...

  • Page 2: Pseudowire Qos/Cos

    Robbed bit (T1). The system clock ensures a single clock Ethernet networks – outgoing pseudowire source for all TDM links. The system clock packets are assigned a dedicated VLAN ID uses master and fallback timing sources according to 802.1q and marked for for clock redundancy.
  • Page 3 Data Sheet IPmux-24 provides four priority queues for ETHERNET INTERFACE ETHERNET LINK PROTECTION each port or pseudowire traffic flow. User The following Ethernet ports are available: The unit performs link aggregation (LAG) traffic can be prioritized according to • based on 802.3ad requirements.

  • Page 4: Oam And Diagnostics

    (jitter) are monitored and IP-based networks. stored by the device. The Syslog protocol is used by IPmux-24 Fault isolation, statistics and event logging to generate and transport event are available. notification messages over IP networks to Fault propagation initiates service port the central Syslog server.

  • Page 5: Simple Network Time Protocol

    RJ-45 connector. Notes: The /H version requires temperature hardened SFP transceivers. Figure 3. Delivering Ethernet and TDM Services over Fiber Ring in the First Mile...

  • Page 6: Specifications

    IPmux-24 TDM Pseudowire Access Gateway T1 INTERFACE Specifications Number of Ports 1, 2 or 4 E1 INTERFACE Compliance Number of Ports ANSI T1.403, ITU-T Rec. G.703, G.704, 1, 2 or 4 G.824 Compliance ITU-T Rec. G.703, G.704, G.706, G.732, Data Rate 1.544 Mbps...
  • Page 7 RAD SFPs installed. This will 3, network or user ensure that prior to shipping, RAD has performed IPmux-24/A Adaptive Clock comprehensive functional quality tests on the Port Combinations Frequency accuracy: ±16 ppb and G.823 entire assembled unit, including the SFP devices.
  • Page 8 Weight: 0.7 kg (1.5 lb) CSU loopback as per Telecordia GR-54 Environment Temperature: Statistics IPmux-24: 0 to 50°C (32 to 122°F) E1/T1 (per G.826 and RFC 2495) IPmux-24/H: -30 to 65°C Ethernet (per RFC 2819) (-22 to 149°F) Jitter buffer indication (overflow,...
  • Page 9 2, 4 × E1 4 × E1 8, 16 × E1 1, 2, 4 × E1/T1 8, 16 × E1/T1 TDM service ports 1 × FE 1 × FE 1 × GbE network, 1 × GbE/FE network, 1 × GbE/FE network Ethernet network 2 ×...

  • Page 10: Standard Configurations

    IPmux-24 TDM Pseudowire Access Gateway Ordering 18A Fast Ethernet/STM-1, Tx – $ TDM interface: 1310 nm, Rx – 1550 nm, 9/25 STANDARD CONFIGURATIONS Single balanced E1 interface single mode (single fiber), laser IPMUX-24/1E1/N/N/N (WDM), 40 km (24.8 mi) 1E1CX Single unbalanced E1 interface IPMUX-24/1E1CX/N/N/N 18B Fast Ethernet/STM-1, Tx –...
  • Page 11 1310 nm, single mode, be replaced with any SFP transceiver supported by laser, 10.0 km (6.2 mi) GbE interface, RJ-45 connector, IPmux-24. 100m (238 ft) Gigabit Ethernet, 1550 nm, single mode, laser, 80.0 km (49.7 mi) 10/100/1000BaseT (with SGMII),...

  • Page 12: Data Sheet

    RJ-45 to BNC adapter cable (if an unbalanced E1 interface is ordered) OPTIONAL ACCESSORIES RM-35/@ Hardware kit for mounting one or two IPmux-24 units into a 19-inch rack Legend @ Rack mounting kit (Default=both kits): Kit for mounting one unit Kit for mounting two units...
