Summary of Contents for ArctiCold DC-X
-
Page 1: User Manual

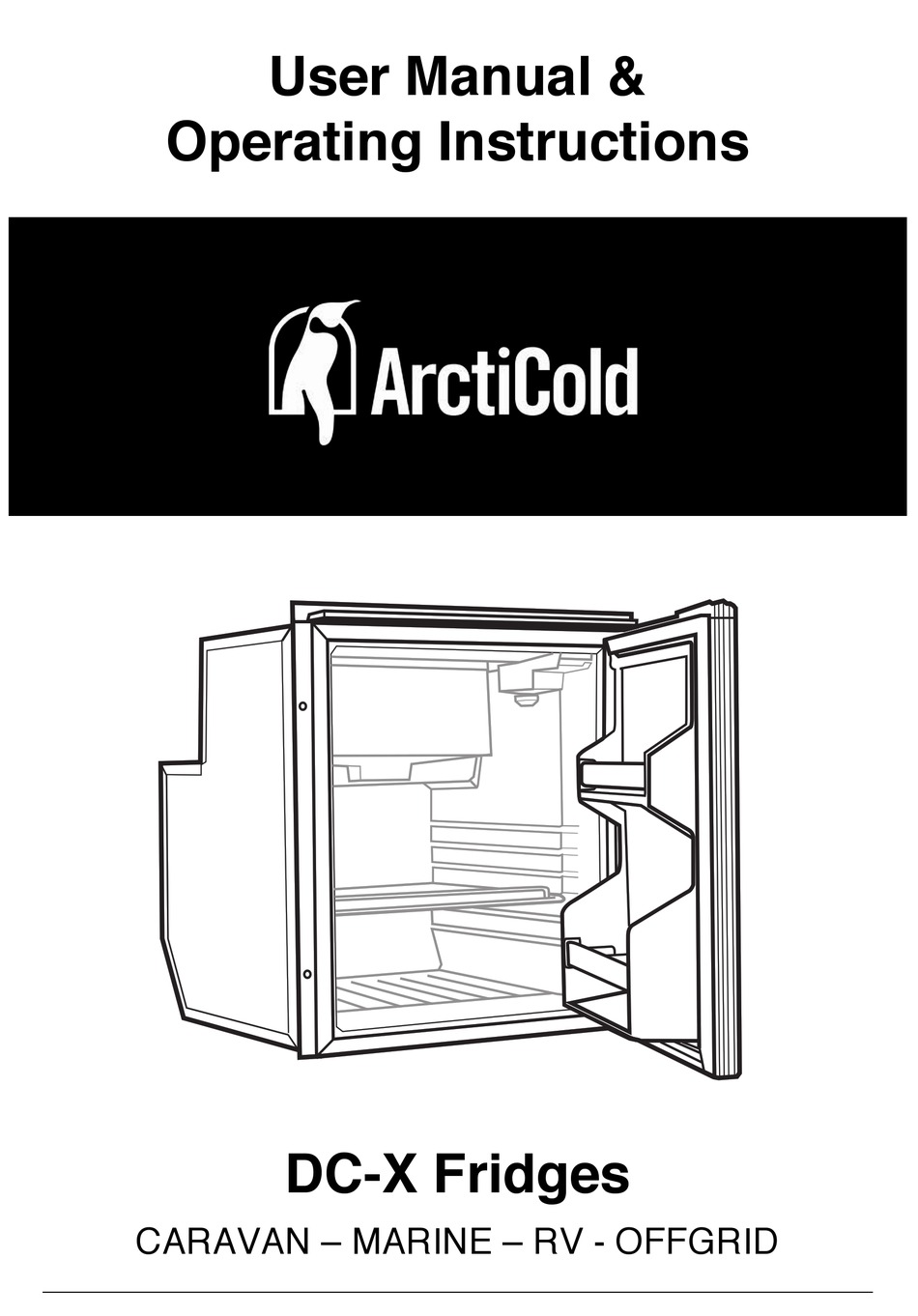

User Manual & Operating Instructions User Manual and Product Specifications DC 85X & DC 130X DC-X Fridges 12/24V Fridge/Freezer CARAVAN – MARINE – RV - OFFGRID Read user manual before operating your fridge/freezer... -
Page 2: Installation
Do not connect an appliance that has been damaged, contact your local dealer immediately. INSTALLATION Installation of the DC-X range of fridges must be completed by a suitably trained professional only. POWER SUPPLY Your fridge must be connected to a stable and regulated 12 V or 24 V DC power supply only. -
Page 3: Cross Section
WIRING For optimum results, you will need the correct sized wire depending on the distance from your power supply to the fridge. Wiring must be directly from your fridge to your battery and should be continuous without joins. Please also ensure the earth is wired directly to your battery, not to a chasse. - Page 4 INSTALLATION IN A CAVITY WITH THE MOUNTING KIT DC-X fridges are designed to be installed in a cavity. We recommend allowing a 10mm gap on the left side, right side and above the fridge cabinet when installing. A gap of 45mm is recommended for the rear. Refer to the following table and diagram for the recommended cut-out dimensions.
-
Page 5: Mounting Kit
EFFICIENT OPERATION VENTILATION Two vents need to be provided from the rear of the fridge cavity to the outside environment, or to the general area where the fridge is located. The vents should be located at the bottom and top of the fridge cavity and have a free cross section of at least 100cm2 each. - Page 6 Remove the screws which hold the door handle in place, access is provided under the Arcticold logo sticker. Installation of a new panel is the reverse of this procedure. REVERSING THE FRONT DOOR HINGES The door hinges from the right side.
-
Page 7: General Troubleshooting
TROUBLE SHOOTING VOLTAGE The most common cause of an incorrectly functioning fridge is a lack of voltage. Your fridge has built in battery protection and needs the following minimum voltage for the compressor to start (Cut-in) or stop (Cut-out). Battery Protection Settings VOLTAGE CUT OUT CUT IN... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS DC50-X DC65-X DC85-X DC130-X COMPRESSOR Secop Secop Secop Secop BD35 BD35 BD35 BD35 VOLTAGE 12 V / 24 V 12 V / 24 V 12 V / 24 V 12 V / 24 V WATT RATING 60 W 60 W 60 W 60 W...
