USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................5
DMX-512 Connection...........................................................5
Main Control Menu..............................................................6
DMX Profile.....................................................................................8
Rigging the Fixture..............................................................8
Cleaning & Maintenance.................................................................9
Parts List.........................................................................................9
Advertisement
Table of Contents

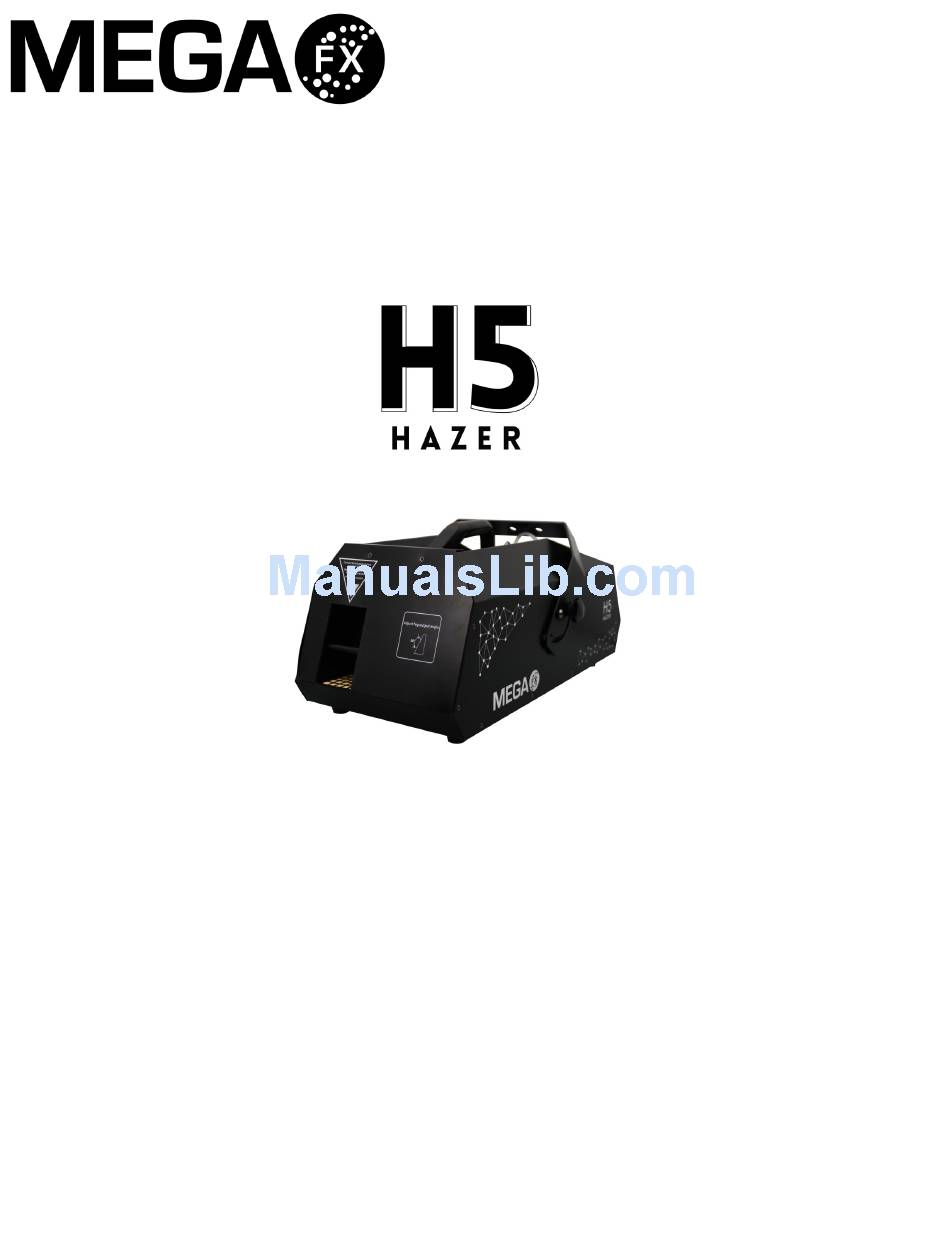

Summary of Contents for Mega H5 Hazer
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...5 Main Control Menu……………..…………………………………..….6 DMX Profile..................8 Rigging the Fixture……………………………….…………………….8 Cleaning & Maintenance..............9 Parts List..................9... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Flight Case 2005 - H5 Hazer 2005-RC Road Case Mechanical Specifications DMX Connectors: 3 and 5-pin XLR connectors Power Connectors: Nema 5-15 cable mounted Fixture Flight Case for Shipping Thermal: Maximum ambient temperature 110° F Maximum surface temperature 140° F Size: 22.12”... -
Page 5: Main Power Connection
120 Ohm resistor between the (-) and the (+) signal into a 3 or 5 pin XLR plug and plug it in to the last fixture on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-FX dealer (P-DMX-T). -
Page 6: Main Control Menu
Press Menu Button to access control menu FUNCTION DOWN TIMER VOLUME MANUAL Ready to Use Mega FX H5 FUNCTION DOWN The Functions Below will adjust the hazer output when used in Timer, Volume and Manual Mode. TIMER VOLUME... - Page 7 Ready to Use Mega FX H5 FUNCTION DOWN TIMER VOLUME MANUAL DMX 512 Add. DMX Address Mega FX H5 Use the up down button to give the fixture the DMX start address channel Fluid Sensor Fluid Sensor Mega FX H5 This function will engage the fluid sensor or shut off the fluid sensor allowing you to by pass the sensor functions.
-
Page 8: Dmx Profile
DMX Profile H5 Hazer 2 Channel DMX Channel Function Description Value Init Value No Function Volume Volume output from Low to Heavy 8-255 Fan Speed Slow Slow to Fast 3-255 Note: (Fan speed will stay active only when Volume is... -
Page 9: Cleaning And Maintenance
Disconnect from mains before starting maintenance operation! Caution Danger to life! The following points need to be addressed when doing maintenance on the H5 Hazer 1) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can damage the fans operation. - Page 10 INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci- dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort (including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
