AMV OND1000-X-C1 User Manual

1kw pure sine wave power inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AMV OND1000-X-C1

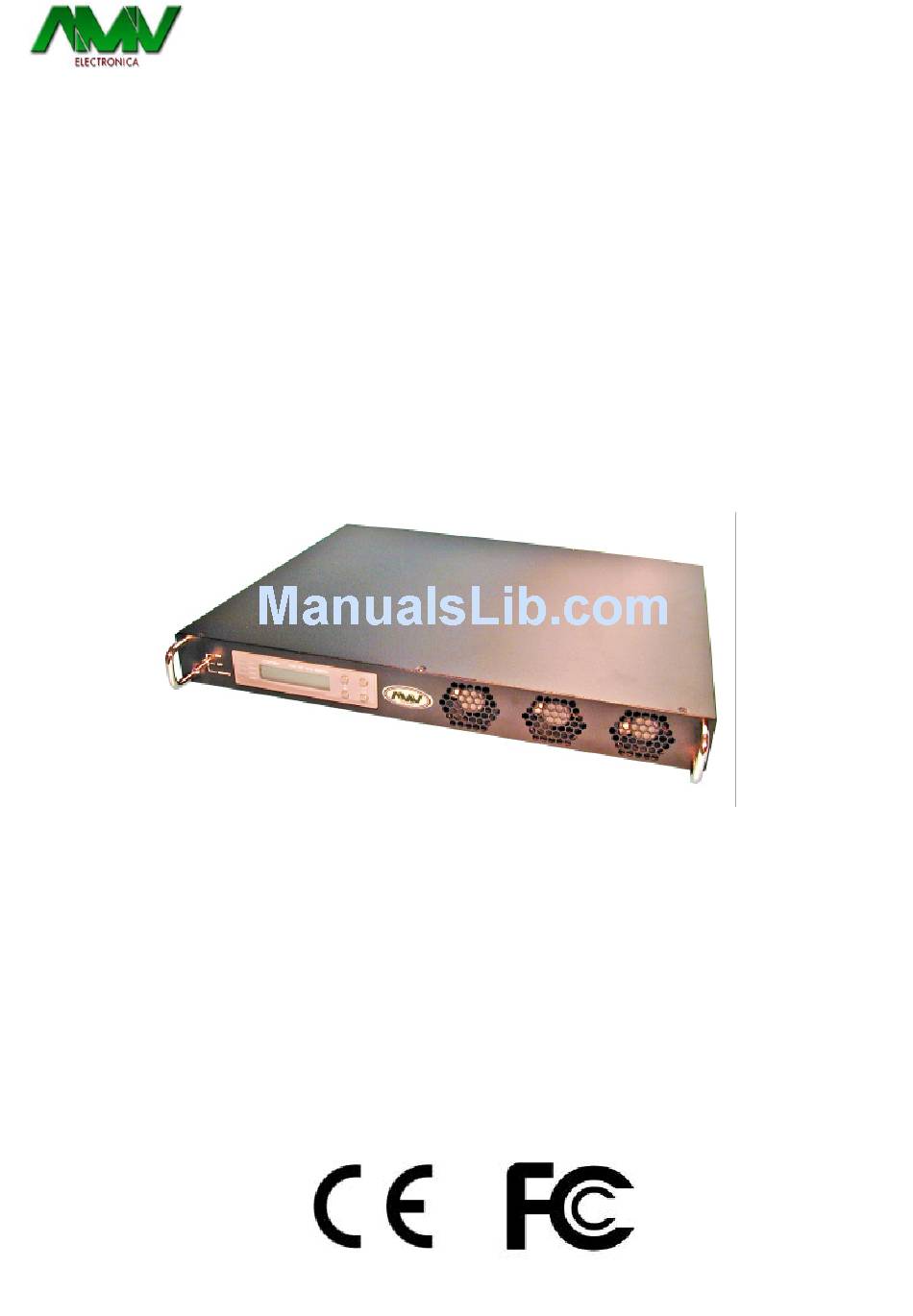

1KW Pure Sine Wave Power Inverter
User's Manual
AMV ELECTRÓNICA SL C/ NAVA Nº7 BAJO 33207 GIJON ASTURIAS
TFNO 985319171 FAX: 985346795 EMAIL amv@amvelectronica.com
www.amvelectronica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OND1000-X-C1 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMV OND1000-X-C1

  • Page 1 AMV OND1000-X-C1 1KW Pure Sine Wave Power Inverter User’s Manual AMV ELECTRÓNICA SL C/ NAVA Nº7 BAJO 33207 GIJON ASTURIAS TFNO 985319171 FAX: 985346795 EMAIL amv@amvelectronica.com www.amvelectronica.com...

  • Page 2: Table Of Contents

    Contents 1. Important Safety Instructions……………………………………………………………………. 2 1-1 General Safety Precaution…………………………………………………………………… 2 1-2 Other Safety Note………………………...…………………………………………………… 2 2. Introduction to Functional Characteristics……………………………………………………. 3 2-1 System...……………………………………………………………………………………….. 3 2-2 Block Diagram.…………………..……………………………………………………………. 4 2-3 Electrical Performance…..……………………………………………………………………. 5 2-4 Mechanical Drawings..………………………………………………………………………... 6 3. Installation and Maintenance….…………………………………………………………………. 7 Rear Panel……..…………………………………………………………………………….

  • Page 3: Important Safety Instructions

    AMV OND1000-X-C1 1. Important Safety Instructions WARNING! SAVE THESE INSTRUCTIONS – This manual contains important instructions that should be followed during installation and maintenance of the inverter. 1-1. General Safety Precautions 1-1-1. Do not expose the inverter to rain, snow, spray or dust.

  • Page 4: Introduction To Functional Characteristics

    AMV OND1000-X-C1 1-2-7. Install the inverter in a well-ventilated area. Do not block the front air vents, or the rear air exhausts of the unit. 1-2-8. Wiring: Adequate input power must be supplied to the inverter for proper use; correct wiring sizes must be ensured.

  • Page 5: Block Diagram

    AMV OND1000-X-C1 ▌ Dry contact terminal. ▌ Efficiency >90%. (Full linear load at 220VAC Output) ▌ Advanced Protection Features: Input over/under voltage protection. Internal over temperature protection. Input reverse polarity protection (Fuse). Output overload protection. Output short circuit protection AC input short circuit protection: Breaker(6 Amp or 12 Amp) 2-2.

  • Page 6: Electrical Performance

    Electrical Performance Electrical Specification MODEL Item AMV OND1000-24-C1 AMV OND1000-48-C1 Input Voltage 24VDC 48 VDC Characteristics 30-34 VDC Input Over-Voltage 60-68 VDC Protection Input Under-Voltage 18-22 VDC 36-44 VDC Protection Voltage Range 18-34 VDC 36-68 VDC No Load Current 0.6 A 0.35 A...

  • Page 7: Mechanical Drawings

    AMV OND1000-X-C1 2-4. Mechanical Drawings REMOTE Inverter Ordering Information Model Input Output Voltage Output Voltage Frequency Number Voltage Nominal Range Range 24 VDC 230VAC 200~240 VAC 47~63 Hz AMV OND1000-24-C1 48 VDC 230VAC 200~240 VAC 47~63 Hz AMV OND1000-48-C1...

  • Page 8: Installation And Maintenance

    AMV OND1000-X-C1 3. Installation and Maintenance 3-1. Rear Panel ANEL AC INPUT BREAKER NEG(-) POS(+) CHASSIS REVERSE POLARITY WARNING: OUTPUT GROUND I N V . FAILURE WILL DAMAGE UNIT RS-232 3-1-1. AC Input Breaker: The AC input circuit breaker protects the unit from overload. When an overload condition occurs, the circuit breaker trips and disconnects the AC grid power input.
  • Page 9 AMV OND1000-X-C1 Wire length / Terminal Wire color gauge Black (120 VAC), Brown (230 VAC) Line (L) OUTPUT Within 16 feet / Neutral (N) White (120 VAC), Blue (230 VAC) AWG# Line (L) Black (120 VAC), Brown (230 VAC) 14~16...
  • Page 10 AMV OND1000-X-C1 ▌ Remote Control Terminal: 1). Before installing the inverter, ensure that the main switch “OFF”. 2). Before using the remote function, ensure that the main switch pressed toward “REMOTE”. 3). Ensure that the remote contacts are off. 4). Use 20 ~ 24 #AWG wire to connect the remote control terminals.
  • Page 11 AMV OND1000-X-C1 ▌ Remote Control Terminal: Dry Contact Terminal RELAY COM. Common contact N.C. Normally closed contact N.O. Normally open contact 3-1-7. DC Input Connection: Follow the instructions to connect the battery cables to the DC input terminals of the inverter. The cables should be as short as possible (less than 6 feet / 1.8 meters ideally) so that they can handle the required...
  • Page 12 AMV OND1000-X-C1 NEGATIVE- PVC WIRE RING TERMINAL (AWG#4 - #6) PVC WIRE RING TERMINAL POSITIVE+ (AWG#4 - #6) WARNING! The recommended inline fuse should be installed as close to the battery positive terminal as possible Failure to use a fuse on the “+” cable running b.

  • Page 13: Front Panel

    AMV OND1000-X-C1 3-2. Front Panel RONT ANEL Vi =24.0 Vo=115 FQ=60.0 Io =8.5 REMOTE 3-2-1. Main Switch: These are the 3-stage rocker switches for turning on, turning off and remote mode. 3-2-2. LED’s Indicators: See details in Section 5-1. 3-2-3. LCD Display Selection Buttons: Data pertaining to the DC input voltage, AC output voltage, AC output frequency, AC output current, etc.

  • Page 14: Inverter Operation

    AMV OND1000-X-C1 4-3. Inverter Operation ▌ Set the power switch to the “ON” position. The buzzer will sound “beep beep”. The inverter will carry out self-diagnosis and, the LED’s will also appear various colors. At the, same time the LCD will display ”SR-1000 INVERTER INITIALIATION..”.
  • Page 15 AMV OND1000-X-C1 5-1-2. LED Indications: ▌ AC GRID: Displays AC input status. AC Input LED Status AC input and DC-AC Inverter GREEN Output are Synchronous AC input ON ORANGE AC input OFF Note. Synchronous means that the: grid AC input frequency and DC-AC inverter output frequency or phase are the same (See details in Section 5-3-3).

  • Page 16: Startup Sequence And Standby Status

    AMV OND1000-X-C1 ▌ Function of Various Keys : Function <Up>: You can use the “up” button to scroll through the menus. or to select the value for set up under setting mode. Function <Down>: You can use the “Down” button to scroll through the menus or to select the value for set up under setting mode.

  • Page 17: Setup Menu Operation And Instructions

    AMV OND1000-X-C1 POWER SWITCH AMV OND1000 INVERTER INITIALIATION .. FAILURE ALARM CHECK INVERTER Vi =XX.X Vo=XXX Vi =XX.X FQ=XX.X Io =X.X 1Sec 交 Vi =XX.X Vo=XXX Vi =XX.X 換顯示 FQ=XX.X Io =X.X Alert: Undervoltage!! Vi =XX.X Alert: Overload!! Vi =XX.X...
  • Page 18 AMV OND1000-X-C1 Vi =XX.X Vo=XXX Main Menu: FQ=XX.X Io =X.X Select Select Menu: Select Menu: Select Menu: Select Menu: User interface I/P Parameter O/P Parameter RST to default Menu: Function 9 10 11 12 13 14 15 Code: Select Item:...
  • Page 19 AMV OND1000-X-C1 MENU STATUS BUZZER Message Power ON or Push Keypad Alert FAN Fail or UV Alarm or Overload Alarm Shutdown OVP or UVP or OLP or OTP Disable 4). Alert Setup: When alert occurs, the internal Dry Contact Relay will open / close.
  • Page 20 AMV OND1000-X-C1 Model SETTING VALUE RANGE 24 V 23 VDC ~ 27 VDC 48 V 46 VDC ~ 54 VDC 10). UV Alarm: Sets Under Voltage (UV) alarm. When the input voltage is lower than the set value, the unit will sound “beep” to remind that the unit is going to shutdown.
  • Page 21 AMV OND1000-X-C1 14). Bypass Relay: The setup is provided in one of the following two ways: On line Mode or Off line Mode (Exacting, Normal, Haphazard). Default= Normal (Off line). MENU Transfer Relay MODE Switching Feature The transfer relay will switch “ON”...

  • Page 22: Rs232 Communication And Operation

    AMV OND1000-X-C1 15). Overload Alarm: Sets the overload alarm. When the output power is higher than the set value, the unit will sound “beep” to remind that the unit is going to shutdown. At the same time, the internal Dry Contact Relay will open/close (See details in Section 3-1-6).

  • Page 23: Interface Command

    AMV OND1000-X-C1 6-1-3. The RS232 interface of this unit employs ASCII code to implement the asynchronous serial transmission control. The byte structure is START-BIP – 8 BIT DATA-STOP BIT. Baud rate: 1200/2400/4800/9600(See details in Section 5-3-1). 6-1-4. Coupled with PC software application port. Operation is as detailed in Section 6-2.
  • Page 24 AMV OND1000-X-C1 6-3-2. Command format: This unit supports the following command format. There should always be a CR (0DH) and a LF (0AH) appended to the command while sending the command to this unit. 1). Command to switch the Power ON/OFF: Format: Power <value>...
  • Page 25 AMV OND1000-X-C1 2). Command to query the Functions No: Format: FUNC? After “Enter”, the unit’s “Function Code” appears on the PC screen. 3). Command to query the set value of the Function: Format: SETT? After “Enter”, the existing set value of the function appears on the PC screen.
  • Page 26 AMV OND1000-X-C1 FUNC 4: Alert Setting Setting Menu SETT <value> Alert Disable Shutdown Alert Setting Alert Alert , SHDW FUNC 6: OVP Setting Setting Menu SETT <value> Model OND1000-24-C1 30~34 OVP Setting OND1000-48-C1 60~68 FUNC 7: OVP Recovery Setting Menu SETT <value>...

  • Page 27: Information

    AMV OND1000-X-C1 FUNC 11: O/P Voltage Setting Menu SETT <value> Model 194~246 OND1000-48-C1 O/P Voltage OND1000-48-C1 FUNC 12: O/P Frequency Setting Menu SETT <value> O/P Frequency 47~63 FUNC 13: Sync Frequency Setting Menu SETT <value> Sync Frequency 0.1~7 FUNC 14: Bypass Relay Setting Menu SETT <value>...

  • Page 28: Warranty

    AMV OND1000-X-C1 b. LCD Panel Display Over input voltage Check input voltage “OVP Shutdown” (OVP) Reduce input voltage Low input voltage. Recharge battery. LCD Panel Display (UVP) Check connections “UVP Shutdown” and cables. d. LCD Panel Display Thermal shutdown. Improve ventilation.
  • Page 29 DIRECCIÓN Y TELEFONOS DE CONTACTOS AMV ELECTRONICA SL C/NAVA Nº 7 – BAJO 33207 GIJON ASTURIAS ESPAÑA FAX 00 34 985346795 PAGINA WEB : www.amvelectronica.com TELEFONOS EMAIL DE CONTACTO DEPARTAMENTO RESPONSABLE TELEFONO e-MAIL Comercial y Ventas Gracia Nomparte 985319171 Ext. 10 gracia@amvelectronica.com...
  • Page 30 C/ NAVA Nº 7 BAJO 33207 GIJON (ASTURIAS) TFNO 985 319171 FAX 985 346795 Email: amv@amvelectronica.com ELECTRONICA www.amvelectronica.com GARANTIA TODOS LOS EQUIPOS FABRICADOS POR AMV ELECTRÓNICA SALEN DE NUESTROS TALLERES AJUSTADOS, NUMERADOS Y CON DOCUMENTACIÓN TÉCNICA, SIENDO LA GARANTIA TOTAL DE 2 AÑOS.
