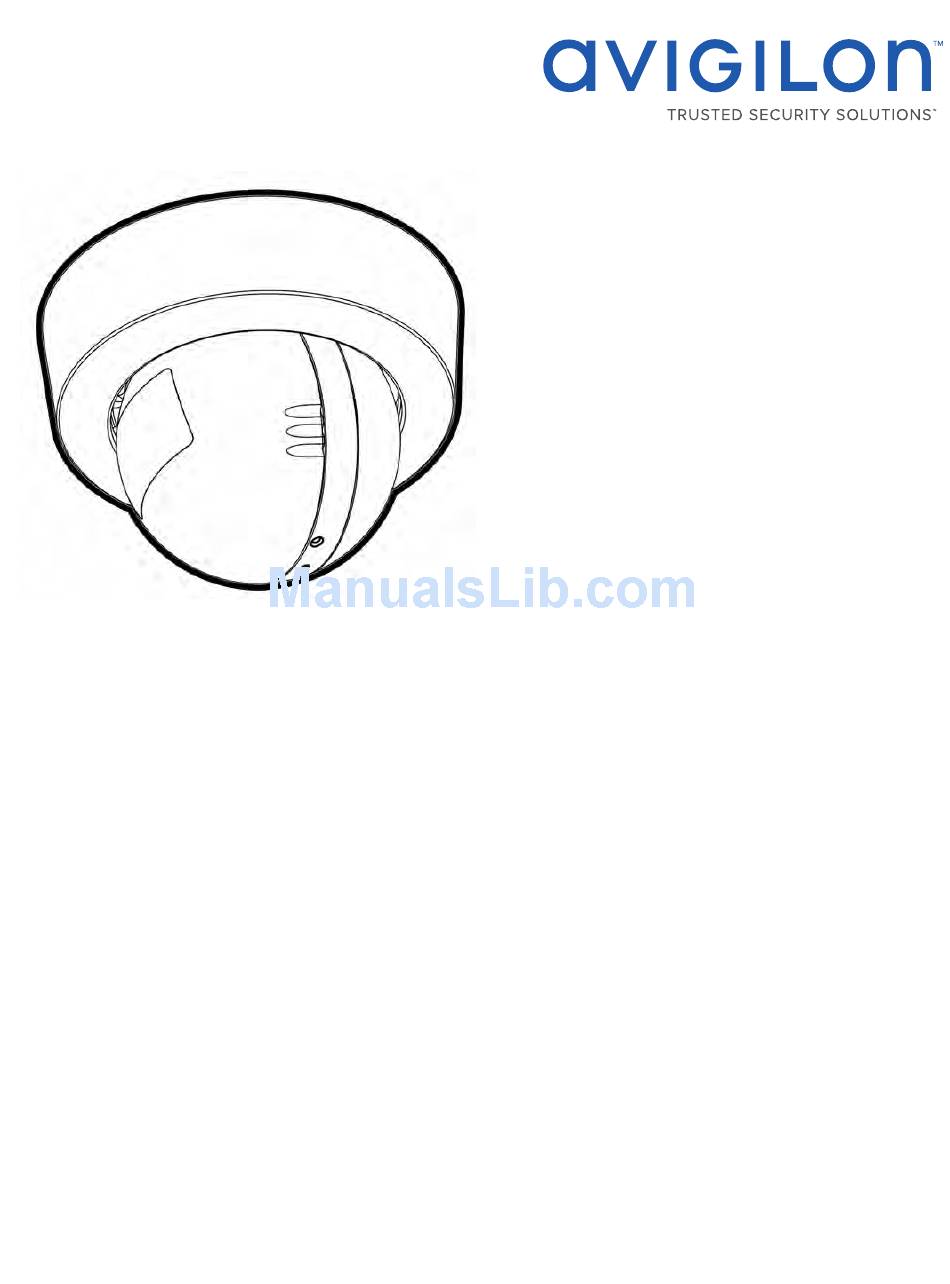

Installation Guide
Avigilon H4 Mini Dome Camera Models with Surface Mount
Adapter:
1.3C-H4M-D1, 1.3C-H4M-D1-IR, 2.0C-H4M-D1, 2.0C-H4M-D1-IR, 3.0C-H4M-D1, 3.0C-H4M-D1-IR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1.3C-H4M-D1 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVIGLION 1.3C-H4M-D1

  • Page 1 Installation Guide Avigilon H4 Mini Dome Camera Models with Surface Mount Adapter: 1.3C-H4M-D1, 1.3C-H4M-D1-IR, 2.0C-H4M-D1, 2.0C-H4M-D1-IR, 3.0C-H4M-D1, 3.0C-H4M-D1-IR...
  • Page 2 Important Safety Information This manual provides installation and operation information and precautions for the use of this camera. Incorrect installation could cause an unexpected fault. Before installing this equipment read this manual carefully. Please provide this manual to the owner of the equipment for future reference. This Warning symbol indicates the presence of dangerous voltage within and outside the product enclosure that may result in a risk of electric shock, serious injury or death to persons if proper precautions are not followed.
  • Page 3: Legal Notices

    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Disclaimer This document has been compiled and published covering the latest product descriptions and specifications. The contents of this document and the specifications of the products discussed herein are subject to change without notice. Avigilon Corporation reserves the right to make any such changes without notice. Neither Avigilon Corporation nor any of its affiliated companies: (1) guarantees the completeness or accuracy of the information contained in this document;...
  • Page 5: Table Of Contents

    Table of Contents Overview Cover View Surface Mounting Adapter View Camera Body View Installation Steps Required Tools and Materials Camera Package Contents Using the Surface Mount Adapter Installing the Camera Base to the Mounting Adapter Assigning an IP Address Accessing the Live Video Stream Aiming the Camera Attaching the Bezel Configuring the Camera...
  • Page 6: Overview

    Overview NOTE: Be careful not to scratch the camera. The resulting marks or fingerprints may affect the overall image quality. Keep the protective covers on the outside of the camera until the installation is complete. Cover View 1. Camera body The main body of the camera, including the internal mechanisms for aiming the camera.
  • Page 7: Surface Mounting Adapter View

    Surface Mounting Adapter View 1. Cable entry hole An entry hole for the cables required for camera operation. 2. Camera attachment slots Slots that the camera housing clips are inserted into to attach the camera body to the surface mounting adapter.
  • Page 8: Camera Body View

    Camera Body View 1. Ethernet port Accepts power and Ethernet connection to the network. The camera can only be powered by Power over Ethernet (PoE). Server communication and image data transmission also occur over this connection. 2. Camera housing clips Clips that attach the camera body to the mounting adapter.
  • Page 9 6. Connection status LED indicator Provides information about device operation. For more information, see Connection Status LED Indicator on page 16. 7. Firmware revert button Used to reset the camera. For more information, see Resetting to Factory Default Settings on page 18. 8.
  • Page 10: Installation Steps

    Installation Steps Complete the following sections to install the camera. Required Tools and Materials The following tools are required to complete the installation but are not included in the package: No. 2 Phillips screwdriver — for attaching camera to an electrical box or mounting surface. Camera Package Contents Ensure the package contains the following: Avigilon H4 Mini Dome Camera (H4M-D), the "camera".
  • Page 11 Perform the following steps to mount the surface adapter to mounting surface: 1. Use the mounting template to drill two mounting holes into the mounting surface and drill the cable entry hole. 2. Pull the required Ethernet cable through the cable entry hole. 3.
  • Page 12: Installing The Camera Base To The Mounting Adapter

    Installing the Camera Base to the Mounting Adapter NOTE: Be careful not to scratch or touch the dome bubble. The resulting marks or fingerprints may affect the overall image quality. Keep the protective covers on the outside of the dome bubble until the installation is complete.
  • Page 13: Accessing The Live Video Stream

    Accessing the Live Video Stream Live video stream can be viewed using one of the following methods: Web browser interface: http://< camera IP address>/. Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is administrator with no password. Aiming the Camera NOTE: When you are aiming the camera, reference the live stream for the camera.
  • Page 14: Attaching The Bezel

    3. Swivel the locking latch to lock it into the closed position. 4. In the camera web browser interface or the Avigilon Control Center software, adjust the camera’s Image and Display settings. Attaching the Bezel After you lock the camera in place, attach the bezel to the mounting adapter, by completing the following steps: 1.
  • Page 15: Configuring The Camera

    3. Rotate the bezel clockwise until the clips snap together. Configuring the Camera Once installed, use one of the following methods to configure the camera: If you have installed multiple cameras, you can use the Avigilon Camera Configuration Tool to configure common settings.
  • Page 16: Connection Status Led Indicator

    Connection Status LED Indicator Once connected to the network, the Connection Status LED indicator will display the progress in connecting to the Network Video Management software. The following table describes what the LED indicator shows: Connection Status Connection State Description LED Indicator One short flash every Obtaining IP Address...
  • Page 17: Removing The Camera From The Mounting Adapter

    Removing the Camera from the Mounting Adapter 1. Twist the bezel counter-clockwise until it releases. Some force will be required to release the bezel and you will hear a click as it is released. 2. Pinch the camera housing clips in the attachment slots to release the camera body from the surface mount and pull the camera out of the mount.
  • Page 18: Resetting To Factory Default Settings

    Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: 1.
  • Page 19: Setting The Ip Address Using The Arp/Ping Method

    Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: NOTE: The ARP/Ping Method will not work if the Disable setting static IP address through ARP/Ping method check box is selected in the camera's web browser interface. For more information, see the Web User Interface Guide - Avigilon High Definition H.264 IP Camera Models.
  • Page 20: Specifications

    Specifications Camera Lens 2.8mm, F1.2, IR Corrected 1.3 MP: (5:4) 74°; (16:9) 110° HFOV (Angle of View) 2.0 MP: (5:4) 74°; (16:9) 110° 3.0 MP: (5:4) 94°; (16:9) 100°, (4:3) 100° Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF® ONVIF compliant with version 1.02, 2.00, Profile S (www.onvif.org) Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log, 802.1x port based authentication...
  • Page 21 Environmental Operating 0 °C to 50 °C (32 °F to 122 °F) Temperature Storage Temperature -30 °C to 70 °C (-22 °F to 158 °F) Humidity 0-95% non-condensing Certifications Certifications/ UL, cUL, CE, ROHS, WEEE, RCM Directives Safety UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC 62471 Environmental Indoor Applications Electromagnetic...
  • Page 22: Limited Warranty And Technical Support

    Limited Warranty and Technical Support Avigilon warranty terms for this product are provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact-us/. Limited Warranty and Technical Support...
